Series: IPB - RH Rough Boring Head

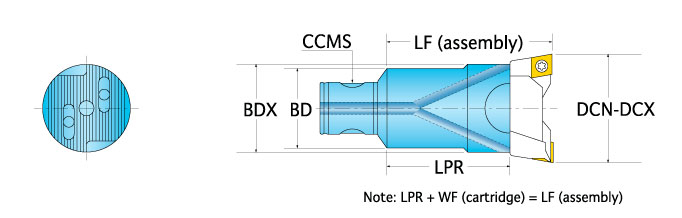

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.708-7.874"
- IPB compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
CCMS Connection Code Machine Side |
BD Body Dia. |
BDX Body Dia. Max. |
LPR Protruding Length |
CASC Cartridge Size Code |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941825 | RH-IPB16-16 | RH-IPB16-16 | 0.708 | 0.866 | IPB-16 | 16.00 mm | - | 1.02 | 16 | 0.110 | |
| 2941826 | RH-IPB20-20 | RH-IPB20-20 | 0.866 | 1.100 | IPB-20 | 20.00 mm | - | 1.22 | 20 | 0.198 | |
| 2941827 | RH-IPB25-25 | RH-IPB25-25 | 1.100 | 1.496 | IPB-25 | 25.00 mm | - | 1.48 | 25 | 0.440 | |
| 2941828 | RH-IPB32-32 | RH-IPB32-32 | 1.397 | 1.968 | IPB-32 | 32.00 mm | - | 1.89 | 32, 33 | 0.771 | |
| 2941829 | RH-IPB40-40 | RH-IPB40-40 | 1.968 | 2.677 | IPB-40 | 40.00 mm | - | 2.20 | 40, 41 | 1.543 | |
| 2941830 | RH-IPB50-50 | RH-IPB50-50 | 2.677 | 3.543 | IPB-50 | 50.00 mm | 55.00 mm | 2.68 | 50 | 3.395 | |
| 2941831 | RH-IPB50-63 | RH-IPB50-63 | 3.543 | 4.724 | IPB-50 | 50.00 mm | 72.00 mm | 3.07 | 63 | 4.409 | |
| 2941832 | RH-IPB63-63 | RH-IPB63-63 | 3.543 | 4.724 | IPB-63 | 63.00 mm | 72.00 mm | 3.07 | 63 | 6.613 | |
| 2941833 | RH-IPB80-80 | RH-IPB80-80 | 4.724 | 7.874 | IPB-80 | 80.00 mm | 95.00 mm | 3.27 | 80, 90 | 11.680 |
Notes:
- **For stock D'Andrea items. Refer to series here.
