Series: IPB - 5X - Small Dia Carbide Boring Bar

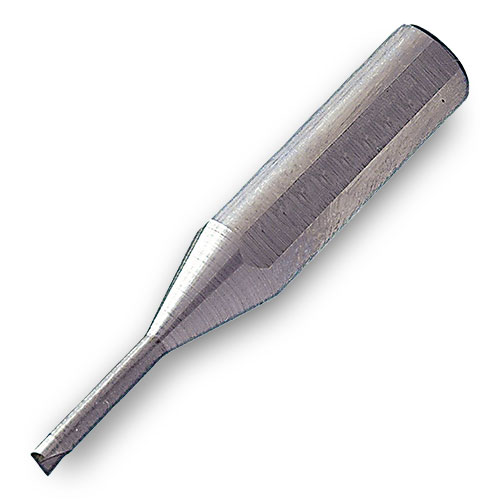

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.098-.236" (Ø2.5-6.0 mm)
- Flatted Shank (Metric)
- IPB Compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
DCON Connection Dia. |
LS Shank Length |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941751 | IPB-5X-E2.5-4-8 | IPB-5X-E2.5-4-8 | 0.098 (2.5 mm) | 0.157 (4.0 mm) | 8 mm | 0.87 (22.1 mm) | 1.690 (42.9 mm) | 0.492 (12.5 mm) | 0.870 | Shank 8 mm, Double Flats | 0.04 | |
| 2941752 | IPB-5X-E4-6-8 | IPB-5X-E4-6-8 | 0.157 (4.0 mm) | 0.009 (0.2 mm) | 8.000 | 0.94 (24.0 mm) | 1.890 (48.0 mm) | 0.787 (20.0 mm) | 0.944 | Shank 8 mm, Double Flats | 0.04 |
Notes:
- **For stock D'Andrea items. Refer to series here.
