Series: IPB - 3X - Steel Boring Bar (8mm shank)

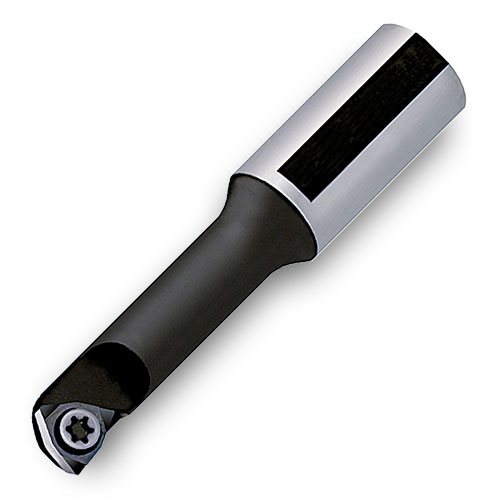

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.236-.708" (Ø6-18 mm)
- Flatted Shank (Metric)
- IPB compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
FIGURE Figure |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941754 | IPB-5X-E6-8-8 | IPB-5X-E6-8-8 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 0.061 (1.5 mm) | 0.033 (0.8 mm) | 0.630 | Shank 8 mm, Double Flats | 2 | 0.02 |
Notes:
- **For stock D'Andrea items. Refer to series here.
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
FIGURE Figure |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941754 | IPB-5X-E6-8-8 | IPB-5X-E6-8-8 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 0.061 (1.5 mm) | 0.033 (0.8 mm) | 0.630 | Shank 8 mm, Double Flats | 2 | 0.02 | |
| 2941756 | IPB-5X-E8-10-8 | IPB-5X-E8-10-8 | 0.315 (8.0 mm) | 0.394 (10.0 mm) | 1.730 (43.9 mm) | - (-) | 0.630 | Shank 8 mm, Double Flats | 2 | 0.03 | |
| 2941758 | IPB-5X-E10-12-8 | IPB-5X-E10-12-8 | 0.390 (9.9 mm) | 0.470 (11.9 mm) | 0.081 (2.1 mm) | - (-) | 0.630 | Shank 8 mm, Double Flats | 1 | 0.04 |
