Series: IPB - 3X - Steel Boring Bar

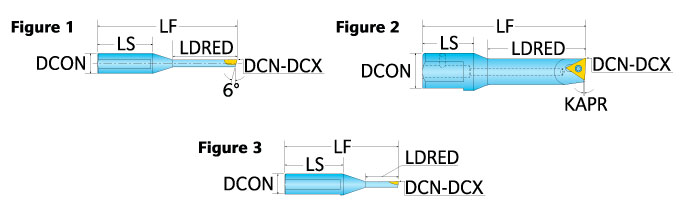

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.236-1.18" (Ø6-30 mm)
- Flatted Shank (Metric)
- IPB Compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941753 | IPB-3X-A6-8-W02 | IPB-3X-A6-8-W02 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 2.000 (50.8 mm) | 0.827 (21.0 mm) | 0.870 | Shank 16 mm | 0.08 |
Notes:
- **For stock D'Andrea items. Refer to series here.
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941753 | IPB-3X-A6-8-W02 | IPB-3X-A6-8-W02 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 2.000 (50.8 mm) | 0.827 (21.0 mm) | 0.870 | Shank 16 mm | 0.08 | |
| 2941755 | IPB-3X-A8-10-W02 | IPB-3X-A8-10-W02 | 0.315 (8.0 mm) | 0.393 (10.0 mm) | 2.280 (57.9 mm) | 1.102 (28.0 mm) | 0.870 | Shank 16 mm | 0.09 | |
| 2941757 | IPB-3X-A10-12-T09 | IPB-3X-A10-12-T09 | 0.394 (10.0 mm) | 0.472 (12.0 mm) | 2.560 (65.0 mm) | 1.380 (35.1 mm) | 0.870 | Shank 16 mm | 0.11 | |
| 2941759 | IPB-3X-A11-13-T09 | IPB-3X-A11-13-T09 | 0.433 (11.0 mm) | 0.512 (13.0 mm) | 2.750 (69.9 mm) | 1.570 (39.9 mm) | 0.870 | Shank 16 mm | 0.12 | |
| 2941760 | IPB-3X-A12-14-T09 | IPB-3X-A12-14-T09 | 0.472 (12.0 mm) | 0.551 (14.0 mm) | 2.750 (69.9 mm) | 1.650 (41.9 mm) | 0.870 | Shank 16 mm | 0.13 | |
| 2941761 | IPB-3X-A14-16-T09 | IPB-3X-A14-16-T09 | 0.551 (14.0 mm) | 0.630 (16.0 mm) | 2.910 (73.9 mm) | 1.970 (50.0 mm) | 0.870 | Shank 16 mm | 0.15 | |
| 2941762 | IPB-3X-A16-18-T09 | IPB-3X-A16-18-T09 | 0.630 (16.0 mm) | 0.708 (18.0 mm) | 3.150 (80.0 mm) | 1.970 (50.0 mm) | 0.870 | Shank 16 mm | 0.15 | |
| 2941763 | IPB-3X-A18-22-T09 | IPB-3X-A18-22-T09 | 0.708 (18.0 mm) | 0.866 (22.0 mm) | 3.350 (85.1 mm) | - (-) | 0.870 | Shank 16 mm | 0.22 | |
| 2941764 | IPB-3X-A22-30-T09 | IPB-3X-A22-30-T09 | 0.866 (22.0 mm) | 1.180 (30.0 mm) | 3.540 (89.9 mm) | - (-) | 0.870 | Shank 16 mm | 0.22 |
