Series: IPB - 5X - Heavy Metal Boring Bar

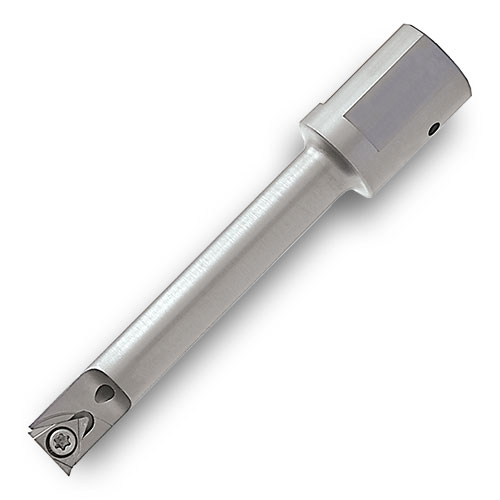

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.236-.708" (Ø6-18 mm)
- Flatted Shank (Metric)
- IPB Compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941765 | IPB-5X-H6-8-W02 | IPB-5X-H6-8-W02 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 2.280 (57.9 mm) | 1.417 (36.0 mm) | 0.870 | Shank 16 mm | 0.17 |
Notes:
- **For stock D'Andrea items. Refer to series here.
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
LF Funtional Length |
LDRED Reduced Body Dia. Length |
LS Shank Length |
DCON Connection Code Machine Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941765 | IPB-5X-H6-8-W02 | IPB-5X-H6-8-W02 | 0.236 (6.0 mm) | 0.315 (8.0 mm) | 2.280 (57.9 mm) | 1.417 (36.0 mm) | 0.870 | Shank 16 mm | 0.17 | |
| 2941766 | IPB-5X-H8-10-W02 | IPB-5X-H8-10-W02 | 0.315 (8.0 mm) | 0.393 (10.0 mm) | 2.760 (70.1 mm) | 1.890 (48.0 mm) | 0.870 | Shank 16 mm | 0.20 | |
| 2941767 | IPB-5X-H10-12-T09 | IPB-5X-H10-12-T09 | 0.393 (10.0 mm) | 0.472 (12.0 mm) | 3.230 (82.0 mm) | 2.360 (59.9 mm) | 0.870 | Shank 16 mm | 0.22 | |
| 2941768 | IPB-5X-H12-14-T09 | IPB-5X-H12-14-T09 | 0.472 (12.0 mm) | 0.551 (14.0 mm) | 3.700 (94.0 mm) | 2.830 (71.9 mm) | 0.870 | Shank 16 mm | 0.22 | |
| 2941769 | IPB-5X-H14-16-T09 | IPB-5X-H14-16-T09 | 0.551 (14.0 mm) | 0.630 (16.0 mm) | 4.170 (105.9 mm) | 3.307 (84.0 mm) | 0.870 | Shank 16 mm | 0.44 | |
| 2941770 | IPB-5X-H16-18-T09 | IPB-5X-H16-18-T09 | 0.630 (16.0 mm) | 0.708 (18.0 mm) | 4.650 (118.1 mm) | 3.780 (96.0 mm) | 0.870 | Shank 16 mm | 0.66 |
