Series: 17Y 18Y - 55° Thread Mill Tip
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- 55° Partial Profile
- Ø.750" Min.
- Chip Surfer Connection
- 5 Flute
- 5/8 Smallest Possible Thread
- Utilizes Key Drive for Indexing

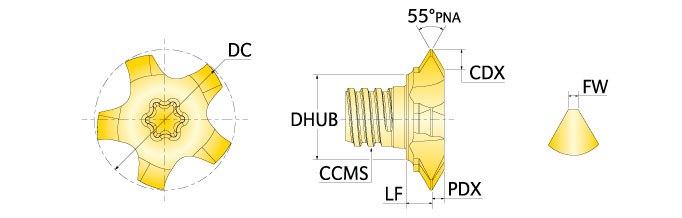

EDP |
Part Number |
DC Cutting Dia. |
TPIN Threads Per Inch Min. |
TPIX Threads Per Inch Max. |
RE Corner Radius |
PDX Profile Distance Ex |
CDX Cutting Depth Max. |
LF Functional Length |
TDZ Thread Dia. Size |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3711560 | 17Y11911TQRP550 IN2005 | 0.470 | 11 | 14 | 0.009 | 0.045 | 2.14 mm | 1.75 mm | 5/8 | 5 | Chip Surfer T05 | 7.51 mm | |
| 3711561 | 18Y11919TQRP550 IN2005 | 0.470 | 19 | 28 | 0.004 | 0.029 | 1.35 mm | 2.15 mm | 9/16 | 5 | Chip Surfer T05 | 8.39 mm | |
| 3711562 | 18Y15980T6RP550 IN2005 | 0.627 | 8 | 14 | 0.009 | 0.061 | 2.92 mm | 2.62 mm | 13/16 | 5 | Chip Surfer T06 | 9.25 mm |
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
