Series: P5M1H & P5M2H - 5-Flute 90° SCEM
Representative image shown ⓘ

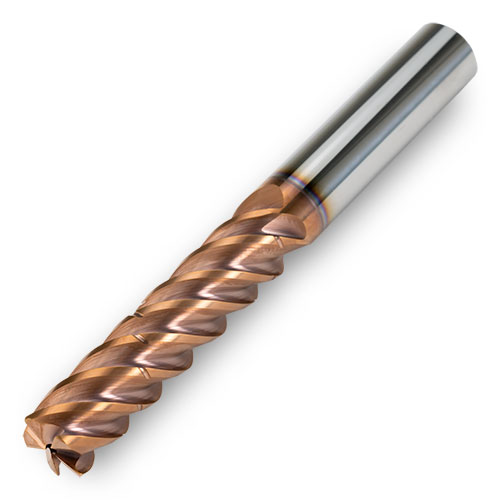

The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- SS_H for Trochoidal & H.E. Milling of Stainless Steel
- Ø.125" - 1.000"
- Coolant thru for .3125" DC or larger
- 5-Flute, Cylindrical shank
- Chip splitter cutting edge
- Variable Pitch
- Variable (Different) Helix, 45.5° Avg.
- 2x, 3x, 4xD APMX
- Corner Radius: .004" .008" .015" .030" .060" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
FHA Flute Helix Angle |
KAPR Cutting Edge Angle |
DCON Shank Dia. |
CSP Coolant |

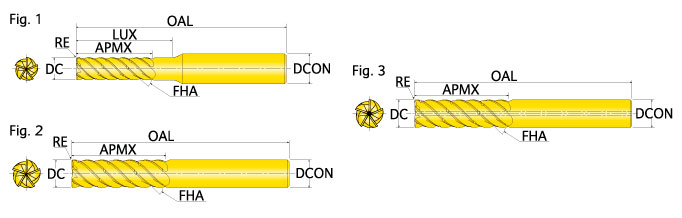

FIGURE Figure |
ZEFF Eff. Teeth |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927367 | P5M1H-.125A025L037R004C | 0.1250 | 0.004 R | 0.250 | 0.375 | 2× | 2.00 | 45.5° Avg. | 90 | 0.250 | No | 1 | 5 | NA |
