Series: P4M2V-W - 4-Flute 90° SCEM Weldon

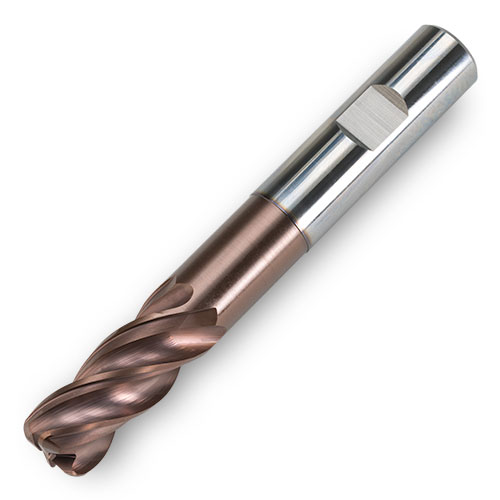

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- SS_V for Various milling operations in Stainless Steel
- Ø.3125" - .750", Coolant thru
- 4-Flute, Weldon flat shank
- Variable Pitch
- Variable (Different) Helix, 36.5° Avg.
- 1.5x, 2xD depth of cut (APMX)
- Up to 4xD useable length (LUX )
- Corner Radius: Sharp .008" .015" .030" .060" .090" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)

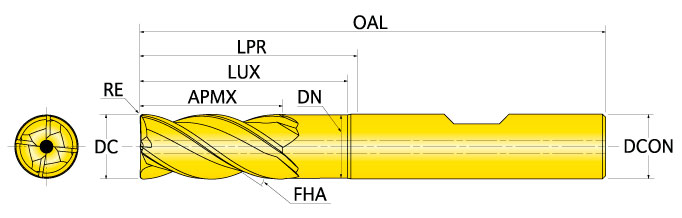

EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
LPR Projection Length |
OAL Overall Length |
DN Neck Dia. |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1928757 | P4M2V-.312A062L093R000W | 0.3125 | Sharp | 0.625 | 0.938 | 3× | 1.120 | 2.50 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928758 | P4M2V-.312A062L125R000W | 0.3125 | Sharp | 0.625 | 1.250 | 4× | 1.370 | 2.75 | 0.305 | 0.313 | 2.5 | NA | |||
| 1927649 | P4M2V-.312A062L093R008W | 0.3125 | 0.008 R | 0.625 | 0.938 | 3× | 1.120 | 2.50 | 0.305 | 0.313 | 2.5 | NA | |||
| 1927650 | P4M2V-.312A062L125R008W | 0.3125 | 0.008 R | 0.625 | 1.250 | 4× | 1.370 | 2.75 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928759 | P4M2V-.312A062L093R015W | 0.3125 | 0.015 R | 0.625 | 0.938 | 3× | 1.120 | 2.50 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928760 | P4M2V-.312A062L125R015W | 0.3125 | 0.015 R | 0.625 | 1.250 | 4× | 1.370 | 2.75 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928761 | P4M2V-.312A062L093R030W | 0.3125 | 0.030 R | 0.625 | 0.938 | 3× | 1.120 | 2.50 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928762 | P4M2V-.312A062L125R030W | 0.3125 | 0.030 R | 0.625 | 1.250 | 4× | 1.370 | 2.75 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928763 | P4M2V-.312A062L093R060W | 0.3125 | 0.060 R | 0.625 | 0.938 | 3× | 1.120 | 2.50 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928764 | P4M2V-.312A062L125R060W | 0.3125 | 0.060 R | 0.625 | 1.250 | 4× | 1.370 | 2.75 | 0.305 | 0.313 | 2.5 | NA | |||
| 1928765 | P4M2V-.375A075L112R000W | 0.3750 | Sharp | 0.750 | 1.125 | 3× | 1.470 | 3.00 | 0.367 | 0.375 | 2.5 | NA | |||
| 1928766 | P4M2V-.375A075L150R000W | 0.3750 | Sharp | 0.750 | 1.500 | 4× | 1.720 | 3.25 | 0.367 | 0.375 | 2.5 | NA | |||
| 1927651 | P4M2V-.375A075L112R015W | 0.3750 | 0.015 R | 0.750 | 1.125 | 3× | 1.470 | 3.00 | 0.367 | 0.375 | 2.5 | NA | |||
| 1927652 | P4M2V-.375A075L150R015W | 0.3750 | 0.015 R | 0.750 | 1.500 | 4× | 1.720 | 3.25 | 0.367 | 0.375 | 2.5 | NA | |||
| 1928767 | P4M2V-.375A075L112R030W | 0.3750 | 0.030 R | 0.750 | 1.125 | 3× | 1.470 | 3.00 | 0.367 | 0.375 | 2.5 | NA | |||
| 1928768 | P4M2V-.375A075L150R030W | 0.3750 | 0.030 R | 0.750 | 1.500 | 4× | 1.720 | 3.25 | 0.367 | 0.375 | 2.5 | NA | |||
| 1928769 | P4M2V-.375A075L112R060W | 0.3750 | 0.060 R | 0.750 | 1.125 | 3× | 1.470 | 3.00 | 0.367 | 0.375 | 2.5 | NA | |||
| 1928770 | P4M2V-.375A075L150R060W | 0.3750 | 0.060 R | 0.750 | 1.500 | 4× | 1.720 | 3.25 | 0.367 | 0.375 | 2.5 | NA | |||
| 1928771 | P4M2V-.500A100L150R000W | 0.5000 | Sharp | 1.000 | 1.500 | 3× | 1.600 | 3.38 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928772 | P4M2V-.500A100L200R000W | 0.5000 | Sharp | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 0.488 | 0.500 | 3.5 | NA | |||
| 1927653 | P4M2V-.500A100L150R015W | 0.5000 | 0.015 R | 1.000 | 1.500 | 3× | 1.600 | 3.38 | 0.488 | 0.500 | 3.5 | NA | |||
| 1927654 | P4M2V-.500A100L200R015W | 0.5000 | 0.015 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928773 | P4M2V-.500A100L150R030W | 0.5000 | 0.030 R | 1.000 | 1.500 | 3× | 1.600 | 3.38 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928774 | P4M2V-.500A100L200R030W | 0.5000 | 0.030 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928775 | P4M2V-.500A100L150R060W | 0.5000 | 0.060 R | 1.000 | 1.500 | 3× | 1.600 | 3.38 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928776 | P4M2V-.500A100L200R060W | 0.5000 | 0.060 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928777 | P4M2V-.500A100L150R090W | 0.5000 | 0.090 R | 1.000 | 1.500 | 3× | 1.600 | 3.38 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928778 | P4M2V-.500A100L200R090W | 0.5000 | 0.090 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928779 | P4M2V-.500A100L150R125W | 0.5000 | 0.125 R | 1.000 | 1.500 | 3× | 1.600 | 3.38 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928780 | P4M2V-.500A100L200R125W | 0.5000 | 0.125 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 0.488 | 0.500 | 3.5 | NA | |||
| 1928781 | P4M2V-.625A125L187R000W | 0.6250 | Sharp | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928782 | P4M2V-.625A125L250R000W | 0.6250 | Sharp | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928783 | P4M2V-.625A125L187R015W | 0.6250 | 0.015 R | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928784 | P4M2V-.625A125L250R015W | 0.6250 | 0.015 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 0.613 | 0.625 | 3.5 | NA | |||
| 1927655 | P4M2V-.625A125L187R030W | 0.6250 | 0.030 R | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 0.613 | 0.625 | 3.5 | NA | |||
| 1927656 | P4M2V-.625A125L250R030W | 0.6250 | 0.030 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928785 | P4M2V-.625A125L187R060W | 0.6250 | 0.060 R | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928786 | P4M2V-.625A125L250R060W | 0.6250 | 0.060 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928787 | P4M2V-.625A125L187R125W | 0.6250 | 0.125 R | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928788 | P4M2V-.625A125L250R125W | 0.6250 | 0.125 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 0.613 | 0.625 | 3.5 | NA | |||
| 1928789 | P4M2V-.750A150L225R000W | 0.7500 | Sharp | 1.500 | 2.250 | 3× | 2.490 | 4.50 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928790 | P4M2V-.750A150L300R000W | 0.7500 | Sharp | 1.500 | 3.000 | 4× | 3.110 | 5.13 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928791 | P4M2V-.750A150L225R015W | 0.7500 | 0.015 R | 1.500 | 2.250 | 3× | 2.490 | 4.50 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928792 | P4M2V-.750A150L300R015W | 0.7500 | 0.015 R | 1.500 | 3.000 | 4× | 3.110 | 5.13 | 0.738 | 0.750 | 3.5 | NA | |||
| 1927657 | P4M2V-.750A150L225R030W | 0.7500 | 0.030 R | 1.500 | 2.250 | 3× | 2.490 | 4.50 | 0.738 | 0.750 | 3.5 | NA | |||
| 1927658 | P4M2V-.750A150L300R030W | 0.7500 | 0.030 R | 1.500 | 3.000 | 4× | 3.110 | 5.13 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928793 | P4M2V-.750A150L225R060W | 0.7500 | 0.060 R | 1.500 | 2.250 | 3× | 2.490 | 4.50 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928794 | P4M2V-.750A150L300R060W | 0.7500 | 0.060 R | 1.500 | 3.000 | 4× | 3.110 | 5.13 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928795 | P4M2V-.750A150L225R090W | 0.7500 | 0.090 R | 1.500 | 2.250 | 3× | 2.490 | 4.50 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928796 | P4M2V-.750A150L300R090W | 0.7500 | 0.090 R | 1.500 | 3.000 | 4× | 3.110 | 5.13 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928797 | P4M2V-.750A150L225R125W | 0.7500 | 0.125 R | 1.500 | 2.250 | 3× | 2.490 | 4.50 | 0.738 | 0.750 | 3.5 | NA | |||
| 1928798 | P4M2V-.750A150L300R125W | 0.7500 | 0.125 R | 1.500 | 3.000 | 4× | 3.110 | 5.13 | 0.738 | 0.750 | 3.5 | NA |
