Series: NS1_3 - 3-Flute 90° SCEM

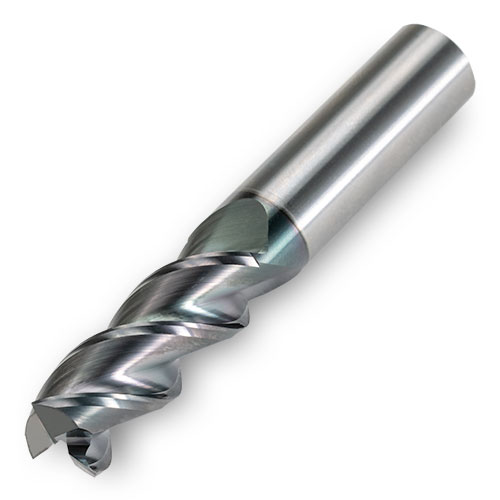

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- (Rhino-Alu) for machining Aluminum and NonFerrous materials
- Ø.125" - 1.250"
- Cylindrical shank
- 3-Flute, 45° Helix
- Variable Pitch
- 1xD~6xD APMX, and up to 8xD LUX
- Corner Radius: Sharp, .015" .030" .060" .090" .125"
- Grade: IN3305 (DLC, Ta-C, ~6000HV)
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
DCON Shank Dia. |

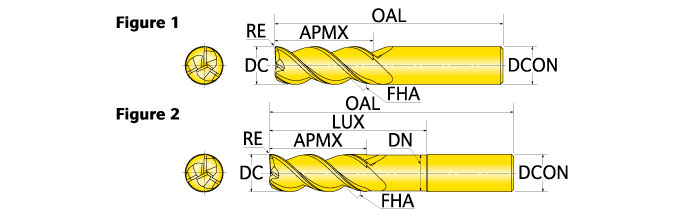

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2942920 | NS1-1.253.003.00Z3090C6 | 1.2500 | 0.090 R | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 |
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
DCON Shank Dia. |
FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2942679 | NS1-.125.250.250Z3000C1.5 | 0.1250 | Sharp | 0.250 | 0.250 | 2× | 1.50 | 0.125 | 1 | |
| 2942681 | NS1-.125.500.500Z3000C1.5 | 0.1250 | Sharp | 0.500 | 0.500 | 4× | 1.50 | 0.125 | 1 | |
| 2942792 | NSB-.125.250.250Z3015C1.5 | 0.1250 | 0.015 R | 0.250 | 0.250 | 2× | 1.50 | 0.125 | 1 | |
| 2942560 | NS1-.125.500.500Z3015C1.5 | 0.1250 | 0.015 R | 0.500 | 0.500 | 4× | 1.50 | 0.125 | 1 | |
| 2942683 | NS1-.187.312.312Z3000C2 | 0.1875 | Sharp | 0.312 | 0.313 | 1× | 2.00 | 0.188 | 1 | |
| 2942685 | NS1-.187.562.562Z3000C2 | 0.1875 | Sharp | 0.562 | 0.563 | 3× | 2.00 | 0.188 | 1 | |
| 2942561 | NS1-.187.312.312Z3015C2 | 0.1875 | 0.015 R | 0.312 | 0.313 | 1× | 2.00 | 0.188 | 1 | |
| 2942562 | NS1-.187.562.562Z3015C2 | 0.1875 | 0.015 R | 0.562 | 0.563 | 3× | 2.00 | 0.188 | 1 | |
| 2942687 | NS1-.250.375.375Z3000C2 | 0.2500 | Sharp | 0.375 | 0.375 | 1× | 2.00 | 0.250 | 1 | |
| 2942693 | NS1-.250.750.750Z3000C2.5 | 0.2500 | Sharp | 0.750 | 0.750 | 3× | 2.50 | 0.250 | 1 | |
| 2942695 | NS1-.2501.001.00Z3000C3 | 0.2500 | Sharp | 1.000 | 1.000 | 4× | 3.00 | 0.250 | 1 | |
| 2942689 | NS1-.250.5001.25Z3000C3 | 0.2500 | Sharp | 0.500 | 1.250 | 5× | 3.00 | 0.250 | 2 | |
| 2942697 | NS1-.2501.251.25Z3000C4 | 0.2500 | Sharp | 1.250 | 1.250 | 5× | 4.00 | 0.250 | 1 | |
| 2942691 | NS1-.250.5002.12Z3000C4 | 0.2500 | Sharp | 0.500 | 2.125 | 8× | 4.00 | 0.250 | 2 | |
| 2942563 | NS1-.250.375.375Z3015C2 | 0.2500 | 0.015 R | 0.375 | 0.375 | 1× | 2.00 | 0.250 | 1 | |
| 2942566 | NS1-.250.750.750Z3015C2.5 | 0.2500 | 0.015 R | 0.750 | 0.750 | 3× | 2.50 | 0.250 | 1 | |
| 2942567 | NS1-.2501.001.00Z3015C3 | 0.2500 | 0.015 R | 1.000 | 1.000 | 4× | 3.00 | 0.250 | 1 | |
| 2942564 | NS1-.250.5001.25Z3015C3 | 0.2500 | 0.015 R | 0.500 | 1.250 | 5× | 3.00 | 0.250 | 2 | |
| 2942793 | NS1-.2501.251.25Z3015C4 | 0.2500 | 0.015 R | 1.250 | 1.250 | 5× | 4.00 | 0.250 | 1 | |
| 2942565 | NS1-.250.5002.12Z3015C4 | 0.2500 | 0.015 R | 0.500 | 2.125 | 8× | 4.00 | 0.250 | 2 | |
| 2942598 | NS1-.250.375.375Z3030C2 | 0.2500 | 0.030 R | 0.375 | 0.375 | 1× | 2.00 | 0.250 | 1 | |
| 2942600 | NS1-.250.750.750Z3030C2.5 | 0.2500 | 0.030 R | 0.750 | 0.750 | 3× | 2.50 | 0.250 | 1 | |
| 2942601 | NS1-.2501.001.00Z3030C3 | 0.2500 | 0.030 R | 1.000 | 1.000 | 4× | 3.00 | 0.250 | 1 | |
| 2942599 | NS1-.250.5001.25Z3030C3 | 0.2500 | 0.030 R | 0.500 | 1.250 | 5× | 3.00 | 0.250 | 2 | |
| 2942819 | NS1-.2501.251.25Z3030C4 | 0.2500 | 0.030 R | 1.250 | 1.250 | 5× | 4.00 | 0.250 | 1 | |
| 2942818 | NS1-.250.5002.12Z3030C4 | 0.2500 | 0.030 R | 0.500 | 2.125 | 8× | 4.00 | 0.250 | 2 | |
| 2942629 | NS1-.250.5001.25Z3060C3 | 0.2500 | 0.060 R | 0.500 | 1.250 | 5× | 3.00 | 0.250 | 2 | |
| 2942630 | NS1-.250.5002.12Z3060C4 | 0.2500 | 0.060 R | 0.500 | 2.125 | 8× | 4.00 | 0.250 | 2 | |
| 2942699 | NS1-.312.500.500Z3000C2 | 0.3125 | Sharp | 0.500 | 0.500 | 1× | 2.00 | 0.313 | 1 | |
| 2942701 | NS1-.312.875.875Z3000C2.5 | 0.3125 | Sharp | 0.875 | 0.875 | 2× | 2.50 | 0.313 | 1 | |
| 2942703 | NS1-.3121.001.00Z3000C3 | 0.3125 | Sharp | 1.000 | 1.000 | 3× | 3.00 | 0.313 | 1 | |
| 2942705 | NS1-.3121.251.25Z3000C4 | 0.3125 | Sharp | 1.250 | 1.250 | 4× | 4.00 | 0.313 | 1 | |
| 2942794 | NS1-.312.500.500Z3015C2 | 0.3125 | 0.015 R | 0.500 | 0.500 | 1× | 2.00 | 0.313 | 1 | |
| 2942568 | NS1-.3121.001.00Z3015C3 | 0.3125 | 0.015 R | 1.000 | 1.000 | 3× | 3.00 | 0.313 | 1 | |
| 2942796 | NS1-.3121.251.25Z3015C4 | 0.3125 | 0.015 R | 1.250 | 1.250 | 4× | 4.00 | 0.313 | 1 | |
| 2942820 | NS1-.312.500.500Z3030C2 | 0.3125 | 0.030 R | 0.500 | 0.500 | 1× | 2.00 | 0.313 | 1 | |
| 2942821 | NS1-.312.875.875Z3030C2.5 | 0.3125 | 0.030 R | 0.875 | 0.875 | 2× | 2.50 | 0.313 | 1 | |
| 2942822 | NS1-.3121.001.00Z3030C3 | 0.3125 | 0.030 R | 1.000 | 1.000 | 3× | 3.00 | 0.313 | 1 | |
| 2942823 | NS1-.3121.251.25Z3030C4 | 0.3125 | 0.030 R | 1.250 | 1.250 | 4× | 4.00 | 0.313 | 1 | |
| 2942707 | NS1-.375.500.500Z3000C2 | 0.3750 | Sharp | 0.500 | 0.500 | 1× | 2.00 | 0.375 | 1 | |
| 2942715 | NS1-.3751.001.00Z3000C3 | 0.3750 | Sharp | 1.000 | 1.000 | 2× | 3.00 | 0.375 | 1 | |
| 2942713 | NS1-.3751.001.00Z3000C2.5 | 0.3750 | Sharp | 1.000 | 1.000 | 2× | 2.50 | 0.375 | 1 | |
| 2942709 | NS1-.375.7501.25Z3000C3 | 0.3750 | Sharp | 0.750 | 1.250 | 3× | 3.00 | 0.375 | 2 | |
| 2942717 | NS1-.3751.501.50Z3000C4 | 0.3750 | Sharp | 1.500 | 1.500 | 4× | 4.00 | 0.375 | 1 | |
| 2942711 | NS1-.375.7502.12Z3000C4 | 0.3750 | Sharp | 0.750 | 2.125 | 5× | 4.00 | 0.375 | 2 | |
| 2942569 | NS1-.375.500.500Z3015C2 | 0.3750 | 0.015 R | 0.500 | 0.500 | 1× | 2.00 | 0.375 | 1 | |
| 2942798 | NS1-.3751.001.00Z3015C3 | 0.3750 | 0.015 R | 1.000 | 1.000 | 2× | 3.00 | 0.375 | 1 | |
| 2942571 | NS1-.3751.001.00Z3015C2.5 | 0.3750 | 0.015 R | 1.000 | 1.000 | 2× | 2.50 | 0.375 | 1 | |
| 2942570 | NS1-.375.7501.25Z3015C3 | 0.3750 | 0.015 R | 0.750 | 1.250 | 3× | 3.00 | 0.375 | 2 | |
| 2942572 | NS1-.3751.501.50Z3015C4 | 0.3750 | 0.015 R | 1.500 | 1.500 | 4× | 4.00 | 0.375 | 1 | |
| 2942797 | NS1-.375.7502.12Z3015C4 | 0.3750 | 0.015 R | 0.750 | 2.125 | 5× | 4.00 | 0.375 | 2 | |
| 2942602 | NS1-.375.500.500Z3030C2 | 0.3750 | 0.030 R | 0.500 | 0.500 | 1× | 2.00 | 0.375 | 1 | |
| 2942605 | NS1-.3751.001.00Z3030C3 | 0.3750 | 0.030 R | 1.000 | 1.000 | 2× | 3.00 | 0.375 | 1 | |
| 2942604 | NS1-.3751.001.00Z3030C2.5 | 0.3750 | 0.030 R | 1.000 | 1.000 | 2× | 2.50 | 0.375 | 1 | |
| 2942603 | NS1-.375.7501.25Z3030C3 | 0.3750 | 0.030 R | 0.750 | 1.250 | 3× | 3.00 | 0.375 | 2 | |
| 2942606 | NS1-.3751.501.50Z3030C4 | 0.3750 | 0.030 R | 1.500 | 1.500 | 4× | 4.00 | 0.375 | 1 | |
| 2942824 | NS1-.375.7502.12Z3030C4 | 0.3750 | 0.030 R | 0.750 | 2.125 | 5× | 4.00 | 0.375 | 2 | |
| 2942631 | NS1-.375.500.500Z3060C2 | 0.3750 | 0.060 R | 0.500 | 0.500 | 1× | 2.00 | 0.375 | 1 | |
| 2942634 | NS1-.3751.001.00Z3060C3 | 0.3750 | 0.060 R | 1.000 | 1.000 | 2× | 3.00 | 0.375 | 1 | |
| 2942633 | NS1-.3751.001.00Z3060C2.5 | 0.3750 | 0.060 R | 1.000 | 1.000 | 2× | 2.50 | 0.375 | 1 | |
| 2942847 | NS1-.375.7501.25Z3060C3 | 0.3750 | 0.060 R | 0.750 | 1.250 | 3× | 3.00 | 0.375 | 2 | |
| 2942635 | NS1-.3751.501.50Z3060C4 | 0.3750 | 0.060 R | 1.500 | 1.500 | 4× | 4.00 | 0.375 | 1 | |
| 2942632 | NS1-.375.7502.12Z3060C4 | 0.3750 | 0.060 R | 0.750 | 2.125 | 5× | 4.00 | 0.375 | 2 | |
| 2942883 | NS1-.375.500.500Z3090C2 | 0.3750 | 0.090 R | 0.500 | 0.500 | 1× | 2.00 | 0.375 | 1 | |
| 2942885 | NS1-.3751.001.00Z3090C2.5 | 0.3750 | 0.090 R | 1.000 | 1.000 | 2× | 2.50 | 0.375 | 1 | |
| 2942648 | NS1-.3751.001.00Z3090C3 | 0.3750 | 0.090 R | 1.000 | 1.000 | 2× | 3.00 | 0.375 | 1 | |
| 2942876 | NS1-.375.7501.25Z3090C3 | 0.3750 | 0.090 R | 0.750 | 1.250 | 3× | 3.00 | 0.375 | 2 | |
| 2942649 | NS1-.3751.501.50Z3090C4 | 0.3750 | 0.090 R | 1.500 | 1.500 | 4× | 4.00 | 0.375 | 1 | |
| 2942884 | NS1-.375.7502.12Z3090C4 | 0.3750 | 0.090 R | 0.750 | 2.125 | 5× | 4.00 | 0.375 | 2 | |
| 2942921 | NS1-.375.500.500Z3125C2 | 0.3750 | 0.125 R | 0.500 | 0.500 | 1× | 2.00 | 0.375 | 1 | |
| 2942658 | NS1-.3751.001.00Z3125C2.5 | 0.3750 | 0.125 R | 1.000 | 1.000 | 2× | 2.50 | 0.375 | 1 | |
| 2942923 | NS1-.3751.001.00Z3125C3 | 0.3750 | 0.125 R | 1.000 | 1.000 | 2× | 3.00 | 0.375 | 1 | |
| 2942922 | NS1-.375.7501.25Z3125C3 | 0.3750 | 0.125 R | 0.750 | 1.250 | 3× | 3.00 | 0.375 | 2 | |
| 2942659 | NS1-.3751.501.50Z3125C4 | 0.3750 | 0.125 R | 1.500 | 1.500 | 4× | 4.00 | 0.375 | 1 | |
| 2942657 | NS1-.375.7502.12Z3125C4 | 0.3750 | 0.125 R | 0.750 | 2.125 | 5× | 4.00 | 0.375 | 2 | |
| 2942719 | NS1-.4371.001.00Z3000C2.7 | 0.4375 | Sharp | 1.000 | 1.000 | 2× | 2.75 | 0.438 | 1 | |
| 2942721 | NS1-.4371.501.50Z3000C4 | 0.4375 | Sharp | 1.500 | 1.500 | 3× | 4.00 | 0.438 | 1 | |
| 2942723 | NS1-.4372.002.00Z3000C4 | 0.4375 | Sharp | 2.000 | 2.000 | 4× | 4.00 | 0.438 | 1 | |
| 2942573 | NS1-.4371.001.00Z3015C2.7 | 0.4375 | 0.015 R | 1.000 | 1.000 | 2× | 2.75 | 0.438 | 1 | |
| 2942799 | NS1-.4371.501.50Z3015C4 | 0.4375 | 0.015 R | 1.500 | 1.500 | 3× | 4.00 | 0.438 | 1 | |
| 2942574 | NS1-.4372.002.00Z3015C4 | 0.4375 | 0.015 R | 2.000 | 2.000 | 4× | 4.00 | 0.438 | 1 | |
| 2942825 | NS1-.4371.001.00Z3030C2.7 | 0.4375 | 0.030 R | 1.000 | 1.000 | 2× | 2.75 | 0.438 | 1 | |
| 2942826 | NS1-.4371.501.50Z3030C4 | 0.4375 | 0.030 R | 1.500 | 1.500 | 3× | 4.00 | 0.438 | 1 | |
| 2942827 | NS1-.4372.002.00Z3030C4 | 0.4375 | 0.030 R | 2.000 | 2.000 | 4× | 4.00 | 0.438 | 1 | |
| 2942848 | NS1-.4371.001.00Z3060C2.7 | 0.4375 | 0.060 R | 1.000 | 1.000 | 2× | 2.75 | 0.438 | 1 | |
| 2942849 | NS1-.4371.501.50Z3060C4 | 0.4375 | 0.060 R | 1.500 | 1.500 | 3× | 4.00 | 0.438 | 1 | |
| 2942850 | NS1-.4372.002.00Z3060C4 | 0.4375 | 0.060 R | 2.000 | 2.000 | 4× | 4.00 | 0.438 | 1 | |
| 2942886 | NS1-.4371.001.00Z3090C2.7 | 0.4375 | 0.090 R | 1.000 | 1.000 | 2× | 2.75 | 0.438 | 1 | |
| 2942887 | NS1-.4371.501.50Z3090C4 | 0.4375 | 0.090 R | 1.500 | 1.500 | 3× | 4.00 | 0.438 | 1 | |
| 2942888 | NS1-.4372.002.00Z3090C4 | 0.4375 | 0.090 R | 2.000 | 2.000 | 4× | 4.00 | 0.438 | 1 | |
| 2942924 | NS1-.4371.001.00Z3125C2.7 | 0.4375 | 0.125 R | 1.000 | 1.000 | 2× | 2.75 | 0.438 | 1 | |
| 2942925 | NS1-.4371.501.50Z3125C4 | 0.4375 | 0.125 R | 1.500 | 1.500 | 3× | 4.00 | 0.438 | 1 | |
| 2942926 | NS1-.4372.002.00Z3125C4 | 0.4375 | 0.125 R | 2.000 | 2.000 | 4× | 4.00 | 0.438 | 1 | |
| 2942725 | NS1-.500.625.625Z3000C2.5 | 0.5000 | Sharp | 0.625 | 0.625 | 1× | 2.50 | 0.500 | 1 | |
| 2942733 | NS1-.5001.251.25Z3000C3 | 0.5000 | Sharp | 1.250 | 1.250 | 2× | 3.00 | 0.500 | 1 | |
| 2942727 | NS1-.500.8751.37Z3000C3 | 0.5000 | Sharp | 0.875 | 1.375 | 2× | 3.00 | 0.500 | 2 | |
| 2942735 | NS1-.5001.501.50Z3000C4 | 0.5000 | Sharp | 1.500 | 1.500 | 3× | 4.00 | 0.500 | 1 | |
| 2942737 | NS1-.5001.501.50Z3000C6 | 0.5000 | Sharp | 1.500 | 1.500 | 3× | 6.00 | 0.500 | 1 | |
| 2942739 | NS1-.5002.002.00Z3000C4 | 0.5000 | Sharp | 2.000 | 2.000 | 4× | 4.00 | 0.500 | 1 | |
| 2942729 | NS1-.500.8752.12Z3000C4 | 0.5000 | Sharp | 0.875 | 2.125 | 4× | 4.00 | 0.500 | 2 | |
| 2942741 | NS1-.5002.502.50Z3000C5 | 0.5000 | Sharp | 2.500 | 2.500 | 5× | 5.00 | 0.500 | 1 | |
| 2942962 | NS1-.500.8753.12Z3000C5 | 0.5000 | Sharp | 0.875 | 3.125 | 6× | 5.00 | 0.500 | 2 | |
| 2942743 | NS1-.5003.123.12Z3000C6 | 0.5000 | Sharp | 3.125 | 3.125 | 6× | 6.00 | 0.500 | 1 | |
| 2942731 | NS1-.500.8754.12Z3000C6 | 0.5000 | Sharp | 0.875 | 4.125 | 8× | 6.00 | 0.500 | 2 | |
| 2942575 | NS1-.500.625.625Z3015C2.5 | 0.5000 | 0.015 R | 0.625 | 0.625 | 1× | 2.50 | 0.500 | 1 | |
| 2942578 | NS1-.5001.251.25Z3015C3 | 0.5000 | 0.015 R | 1.250 | 1.250 | 2× | 3.00 | 0.500 | 1 | |
| 2942800 | NS1-.500.8751.37Z3015C3 | 0.5000 | 0.015 R | 0.875 | 1.375 | 2× | 3.00 | 0.500 | 2 | |
| 2942580 | NS1-.5001.501.50Z3015C6 | 0.5000 | 0.015 R | 1.500 | 1.500 | 3× | 6.00 | 0.500 | 1 | |
| 2942579 | NS1-.5001.501.50Z3015C4 | 0.5000 | 0.015 R | 1.500 | 1.500 | 3× | 4.00 | 0.500 | 1 | |
| 2942581 | NS1-.5002.002.00Z3015C4 | 0.5000 | 0.015 R | 2.000 | 2.000 | 4× | 4.00 | 0.500 | 1 | |
| 2942576 | NS1-.500.8752.12Z3015C4 | 0.5000 | 0.015 R | 0.875 | 2.125 | 4× | 4.00 | 0.500 | 2 | |
| 2942582 | NS1-.5002.502.50Z3015C5 | 0.5000 | 0.015 R | 2.500 | 2.500 | 5× | 5.00 | 0.500 | 1 | |
| 2942801 | NS1-.500.8753.12Z3015C5 | 0.5000 | 0.015 R | 0.875 | 3.125 | 6× | 5.00 | 0.500 | 2 | |
| 2942583 | NS1-.5003.123.12Z3015C6 | 0.5000 | 0.015 R | 3.125 | 3.125 | 6× | 6.00 | 0.500 | 1 | |
| 2942577 | NS1-.500.8754.12Z3015C6 | 0.5000 | 0.015 R | 0.875 | 4.125 | 8× | 6.00 | 0.500 | 2 | |
| 2942607 | NS1-.500.625.625Z3030C2.5 | 0.5000 | 0.030 R | 0.625 | 0.625 | 1× | 2.50 | 0.500 | 1 | |
| 2942610 | NS1-.5001.251.25Z3030C3 | 0.5000 | 0.030 R | 1.250 | 1.250 | 2× | 3.00 | 0.500 | 1 | |
| 2942608 | NS1-.500.8751.37Z3030C3 | 0.5000 | 0.030 R | 0.875 | 1.375 | 2× | 3.00 | 0.500 | 2 | |
| 2942830 | NS1-.5001.501.50Z3030C6 | 0.5000 | 0.030 R | 1.500 | 1.500 | 3× | 6.00 | 0.500 | 1 | |
| 2942611 | NS1-.5001.501.50Z3030C4 | 0.5000 | 0.030 R | 1.500 | 1.500 | 3× | 4.00 | 0.500 | 1 | |
| 2942612 | NS1-.5002.002.00Z3030C4 | 0.5000 | 0.030 R | 2.000 | 2.000 | 4× | 4.00 | 0.500 | 1 | |
| 2942609 | NS1-.500.8752.12Z3030C4 | 0.5000 | 0.030 R | 0.875 | 2.125 | 4× | 4.00 | 0.500 | 2 | |
| 2942613 | NS1-.5002.502.50Z3030C5 | 0.5000 | 0.030 R | 2.500 | 2.500 | 5× | 5.00 | 0.500 | 1 | |
| 2942828 | NS1-.500.8753.12Z3030C5 | 0.5000 | 0.030 R | 0.875 | 3.125 | 6× | 5.00 | 0.500 | 2 | |
| 2942831 | NS1-.5003.123.12Z3030C6 | 0.5000 | 0.030 R | 3.125 | 3.125 | 6× | 6.00 | 0.500 | 1 | |
| 2942829 | NS1-.500.8754.12Z3030C6 | 0.5000 | 0.030 R | 0.875 | 4.125 | 8× | 6.00 | 0.500 | 2 | |
| 2942636 | NS1-.500.625.625Z3060C2.5 | 0.5000 | 0.060 R | 0.625 | 0.625 | 1× | 2.50 | 0.500 | 1 | |
| 2942637 | NS1-.5001.251.25Z3060C3 | 0.5000 | 0.060 R | 1.250 | 1.250 | 2× | 3.00 | 0.500 | 1 | |
| 2942851 | NS1-.500.8751.37Z3060C3 | 0.5000 | 0.060 R | 0.875 | 1.375 | 2× | 3.00 | 0.500 | 2 | |
| 2942856 | NS1-.5001.501.50Z3060C6 | 0.5000 | 0.060 R | 1.500 | 1.500 | 3× | 6.00 | 0.500 | 1 | |
| 2942855 | NS1-.5001.501.50Z3060C4 | 0.5000 | 0.060 R | 1.500 | 1.500 | 3× | 4.00 | 0.500 | 1 | |
| 2942638 | NS1-.5002.002.00Z3060C4 | 0.5000 | 0.060 R | 2.000 | 2.000 | 4× | 4.00 | 0.500 | 1 | |
| 2942852 | NS1-.500.8752.12Z3060C4 | 0.5000 | 0.060 R | 0.875 | 2.125 | 4× | 4.00 | 0.500 | 2 | |
| 2942639 | NS1-.5002.502.50Z3060C5 | 0.5000 | 0.060 R | 2.500 | 2.500 | 5× | 5.00 | 0.500 | 1 | |
| 2942853 | NS1-.500.8753.12Z3060C5 | 0.5000 | 0.060 R | 0.875 | 3.125 | 6× | 5.00 | 0.500 | 2 | |
| 2942640 | NS1-.5003.123.12Z3060C6 | 0.5000 | 0.060 R | 3.125 | 3.125 | 6× | 6.00 | 0.500 | 1 | |
| 2942854 | NS1-.500.8754.12Z3060C6 | 0.5000 | 0.060 R | 0.875 | 4.125 | 8× | 6.00 | 0.500 | 2 | |
| 2942650 | NS1-.500.625.625Z3090C2.5 | 0.5000 | 0.090 R | 0.625 | 0.625 | 1× | 2.50 | 0.500 | 1 | |
| 2942652 | NS1-.5001.251.25Z3090C3 | 0.5000 | 0.090 R | 1.250 | 1.250 | 2× | 3.00 | 0.500 | 1 | |
| 2942889 | NS1-.500.8751.37Z3090C3 | 0.5000 | 0.090 R | 0.875 | 1.375 | 2× | 3.00 | 0.500 | 2 | |
| 2942892 | NS1-.5001.501.50Z3090C6 | 0.5000 | 0.090 R | 1.500 | 1.500 | 3× | 6.00 | 0.500 | 1 | |
| 2942891 | NS1-.5001.501.50Z3090C4 | 0.5000 | 0.090 R | 1.500 | 1.500 | 3× | 4.00 | 0.500 | 1 | |
| 2942875 | NS1-.5002.002.00Z3090C4 | 0.5000 | 0.090 R | 2.000 | 2.000 | 4× | 4.00 | 0.500 | 1 | |
| 2942651 | NS1-.500.8752.12Z3090C4 | 0.5000 | 0.090 R | 0.875 | 2.125 | 4× | 4.00 | 0.500 | 2 | |
| 2942893 | NS1-.5002.502.50Z3090C5 | 0.5000 | 0.090 R | 2.500 | 2.500 | 5× | 5.00 | 0.500 | 1 | |
| 2942960 | NS1-.500.8753.12Z3090C5 | 0.5000 | 0.090 R | 0.875 | 3.125 | 6× | 5.00 | 0.500 | 2 | |
| 2942653 | NS1-.5003.123.12Z3090C6 | 0.5000 | 0.090 R | 3.125 | 3.125 | 6× | 6.00 | 0.500 | 1 | |
| 2942890 | NS1-.500.8754.12Z3090C6 | 0.5000 | 0.090 R | 0.875 | 4.125 | 8× | 6.00 | 0.500 | 2 | |
| 2942660 | NS1-.500.625.625Z3125C2.5 | 0.5000 | 0.125 R | 0.625 | 0.625 | 1× | 2.50 | 0.500 | 1 | |
| 2942662 | NS1-.5001.251.25Z3125C3 | 0.5000 | 0.125 R | 1.250 | 1.250 | 2× | 3.00 | 0.500 | 1 | |
| 2942791 | NS1-.500.8751.37Z3125C3 | 0.5000 | 0.125 R | 0.875 | 1.375 | 2× | 3.00 | 0.500 | 2 | |
| 2942663 | NS1-.5001.501.50Z3125C4 | 0.5000 | 0.125 R | 1.500 | 1.500 | 3× | 4.00 | 0.500 | 1 | |
| 2942927 | NS1-.5001.501.50Z3125C6 | 0.5000 | 0.125 R | 1.500 | 1.500 | 3× | 6.00 | 0.500 | 1 | |
| 2942664 | NS1-.5002.002.00Z3125C4 | 0.5000 | 0.125 R | 2.000 | 2.000 | 4× | 4.00 | 0.500 | 1 | |
| 2942661 | NS1-.500.8752.12Z3125C4 | 0.5000 | 0.125 R | 0.875 | 2.125 | 4× | 4.00 | 0.500 | 2 | |
| 2942665 | NS1-.5002.502.50Z3125C5 | 0.5000 | 0.125 R | 2.500 | 2.500 | 5× | 5.00 | 0.500 | 1 | |
| 2942961 | NS1-.500.8753.12Z3125C5 | 0.5000 | 0.125 R | 0.875 | 3.125 | 6× | 5.00 | 0.500 | 2 | |
| 2942928 | NS1-.5003.123.12Z3125C6 | 0.5000 | 0.125 R | 3.125 | 3.125 | 6× | 6.00 | 0.500 | 1 | |
| 2942874 | NS1-.500.8754.12Z3125C6 | 0.5000 | 0.125 R | 0.875 | 4.125 | 8× | 6.00 | 0.500 | 2 | |
| 2942745 | NS1-.625.750.750Z3000C3 | 0.6250 | Sharp | 0.750 | 0.750 | 1× | 3.00 | 0.625 | 1 | |
| 2942748 | NS1-.6251.251.25Z3000C3.5 | 0.6250 | Sharp | 1.250 | 1.250 | 2× | 3.50 | 0.625 | 1 | |
| 2942750 | NS1-.6251.501.50Z3000C6 | 0.6250 | Sharp | 1.500 | 1.500 | 2× | 6.00 | 0.625 | 1 | |
| 2942946 | NS1-.6251.002.00Z3000C4 | 0.6250 | Sharp | 1.000 | 2.000 | 3× | 4.00 | 0.625 | 2 | |
| 2942752 | NS1-.6252.002.00Z3000C4 | 0.6250 | Sharp | 2.000 | 2.000 | 3× | 4.00 | 0.625 | 1 | |
| 2942754 | NS1-.6252.252.25Z3000C5 | 0.6250 | Sharp | 2.250 | 2.250 | 3× | 5.00 | 0.625 | 1 | |
| 2942948 | NS1-.6251.003.00Z3000C5 | 0.6250 | Sharp | 1.000 | 3.000 | 4× | 5.00 | 0.625 | 2 | |
| 2942756 | NS1-.6253.003.00Z3000C6 | 0.6250 | Sharp | 3.000 | 3.000 | 4× | 6.00 | 0.625 | 1 | |
| 2942747 | NS1-.6251.004.00Z3000C6 | 0.6250 | Sharp | 1.000 | 4.000 | 6× | 6.00 | 0.625 | 2 | |
| 2942802 | NS1-.625.750.750Z3015C3 | 0.6250 | 0.015 R | 0.750 | 0.750 | 1× | 3.00 | 0.625 | 1 | |
| 2942584 | NS1-.6251.251.25Z3015C3.5 | 0.6250 | 0.015 R | 1.250 | 1.250 | 2× | 3.50 | 0.625 | 1 | |
| 2942585 | NS1-.6251.501.50Z3015C6 | 0.6250 | 0.015 R | 1.500 | 1.500 | 2× | 6.00 | 0.625 | 1 | |
| 2942803 | NS1-.6251.002.00Z3015C4 | 0.6250 | 0.015 R | 1.000 | 2.000 | 3× | 4.00 | 0.625 | 2 | |
| 2942586 | NS1-.6252.002.00Z3015C4 | 0.6250 | 0.015 R | 2.000 | 2.000 | 3× | 4.00 | 0.625 | 1 | |
| 2942806 | NS1-.6252.252.25Z3015C5 | 0.6250 | 0.015 R | 2.250 | 2.250 | 3× | 5.00 | 0.625 | 1 | |
| 2942804 | NS1-.6251.003.00Z3015C5 | 0.6250 | 0.015 R | 1.000 | 3.000 | 4× | 5.00 | 0.625 | 2 | |
| 2942587 | NS1-.6253.003.00Z3015C6 | 0.6250 | 0.015 R | 3.000 | 3.000 | 4× | 6.00 | 0.625 | 1 | |
| 2942805 | NS1-.6251.004.00Z3015C6 | 0.6250 | 0.015 R | 1.000 | 4.000 | 6× | 6.00 | 0.625 | 2 | |
| 2942832 | NS1-.625.750.750Z3030C3 | 0.6250 | 0.030 R | 0.750 | 0.750 | 1× | 3.00 | 0.625 | 1 | |
| 2942614 | NS1-.6251.251.25Z3030C3.5 | 0.6250 | 0.030 R | 1.250 | 1.250 | 2× | 3.50 | 0.625 | 1 | |
| 2942836 | NS1-.6251.501.50Z3030C6 | 0.6250 | 0.030 R | 1.500 | 1.500 | 2× | 6.00 | 0.625 | 1 | |
| 2942833 | NS1-.6251.002.00Z3030C4 | 0.6250 | 0.030 R | 1.000 | 2.000 | 3× | 4.00 | 0.625 | 2 | |
| 2942837 | NS1-.6252.002.00Z3030C4 | 0.6250 | 0.030 R | 2.000 | 2.000 | 3× | 4.00 | 0.625 | 1 | |
| 2942838 | NS1-.6252.252.25Z3030C5 | 0.6250 | 0.030 R | 2.250 | 2.250 | 3× | 5.00 | 0.625 | 1 | |
| 2942834 | NS1-.6251.003.00Z3030C5 | 0.6250 | 0.030 R | 1.000 | 3.000 | 4× | 5.00 | 0.625 | 2 | |
| 2942615 | NS1-.6253.003.00Z3030C6 | 0.6250 | 0.030 R | 3.000 | 3.000 | 4× | 6.00 | 0.625 | 1 | |
| 2942835 | NS1-.6251.004.00Z3030C6 | 0.6250 | 0.030 R | 1.000 | 4.000 | 6× | 6.00 | 0.625 | 2 | |
| 2942857 | NS1-.625.750.750Z3060C3 | 0.6250 | 0.060 R | 0.750 | 0.750 | 1× | 3.00 | 0.625 | 1 | |
| 2942861 | NS1-.6251.251.25Z3060C3.5 | 0.6250 | 0.060 R | 1.250 | 1.250 | 2× | 3.50 | 0.625 | 1 | |
| 2942862 | NS1-.6251.501.50Z3060C6 | 0.6250 | 0.060 R | 1.500 | 1.500 | 2× | 6.00 | 0.625 | 1 | |
| 2942858 | NS1-.6251.002.00Z3060C4 | 0.6250 | 0.060 R | 1.000 | 2.000 | 3× | 4.00 | 0.625 | 2 | |
| 2942863 | NS1-.6252.002.00Z3060C4 | 0.6250 | 0.060 R | 2.000 | 2.000 | 3× | 4.00 | 0.625 | 1 | |
| 2942864 | NS1-.6252.252.25Z3060C5 | 0.6250 | 0.060 R | 2.250 | 2.250 | 3× | 5.00 | 0.625 | 1 | |
| 2942859 | NS1-.6251.003.00Z3060C5 | 0.6250 | 0.060 R | 1.000 | 3.000 | 4× | 5.00 | 0.625 | 2 | |
| 2942865 | NS1-.6253.003.00Z3060C6 | 0.6250 | 0.060 R | 3.000 | 3.000 | 4× | 6.00 | 0.625 | 1 | |
| 2942860 | NS1-.6251.004.00Z3060C6 | 0.6250 | 0.060 R | 1.000 | 4.000 | 6× | 6.00 | 0.625 | 2 | |
| 2942894 | NS1-.625.750.750Z3090C3 | 0.6250 | 0.090 R | 0.750 | 0.750 | 1× | 3.00 | 0.625 | 1 | |
| 2942898 | NS1-.6251.251.25Z3090C3.5 | 0.6250 | 0.090 R | 1.250 | 1.250 | 2× | 3.50 | 0.625 | 1 | |
| 2942899 | NS1-.6251.501.50Z3090C6 | 0.6250 | 0.090 R | 1.500 | 1.500 | 2× | 6.00 | 0.625 | 1 | |
| 2942895 | NS1-.6251.002.00Z3090C4 | 0.6250 | 0.090 R | 1.000 | 2.000 | 3× | 4.00 | 0.625 | 2 | |
| 2942900 | NS1-.6252.002.00Z3090C4 | 0.6250 | 0.090 R | 2.000 | 2.000 | 3× | 4.00 | 0.625 | 1 | |
| 2942901 | NS1-.6252.252.25Z3090C5 | 0.6250 | 0.090 R | 2.250 | 2.250 | 3× | 5.00 | 0.625 | 1 | |
| 2942896 | NS1-.6251.003.00Z3090C5 | 0.6250 | 0.090 R | 1.000 | 3.000 | 4× | 5.00 | 0.625 | 2 | |
| 2942902 | NS1-.6253.003.00Z3090C6 | 0.6250 | 0.090 R | 3.000 | 3.000 | 4× | 6.00 | 0.625 | 1 | |
| 2942897 | NS1-.6251.004.00Z3090C6 | 0.6250 | 0.090 R | 1.000 | 4.000 | 6× | 6.00 | 0.625 | 2 | |
| 2942929 | NS1-.625.750.750Z3125C3 | 0.6250 | 0.125 R | 0.750 | 0.750 | 1× | 3.00 | 0.625 | 1 | |
| 2942933 | NS1-.6251.251.25Z3125C3.5 | 0.6250 | 0.125 R | 1.250 | 1.250 | 2× | 3.50 | 0.625 | 1 | |
| 2942934 | NS1-.6251.501.50Z3125C6 | 0.6250 | 0.125 R | 1.500 | 1.500 | 2× | 6.00 | 0.625 | 1 | |
| 2942930 | NS1-.6251.002.00Z3125C4 | 0.6250 | 0.125 R | 1.000 | 2.000 | 3× | 4.00 | 0.625 | 2 | |
| 2942666 | NS1-.6252.002.00Z3125C4 | 0.6250 | 0.125 R | 2.000 | 2.000 | 3× | 4.00 | 0.625 | 1 | |
| 2942935 | NS1-.6252.252.25Z3125C5 | 0.6250 | 0.125 R | 2.250 | 2.250 | 3× | 5.00 | 0.625 | 1 | |
| 2942931 | NS1-.6251.003.00Z3125C5 | 0.6250 | 0.125 R | 1.000 | 3.000 | 4× | 5.00 | 0.625 | 2 | |
| 2942936 | NS1-.6253.003.00Z3125C6 | 0.6250 | 0.125 R | 3.000 | 3.000 | 4× | 6.00 | 0.625 | 1 | |
| 2942932 | NS1-.6251.004.00Z3125C6 | 0.6250 | 0.125 R | 1.000 | 4.000 | 6× | 6.00 | 0.625 | 2 | |
| 2942758 | NS1-.7501.001.00Z3000C3 | 0.7500 | Sharp | 1.000 | 1.000 | 1× | 3.00 | 0.750 | 1 | |
| 2942762 | NS1-.7501.501.50Z3000C6 | 0.7500 | Sharp | 1.500 | 1.500 | 2× | 6.00 | 0.750 | 1 | |
| 2942764 | NS1-.7502.121.62Z3000C4 | 0.7500 | Sharp | 1.625 | 1.625 | 2× | 4.00 | 0.750 | 1 | |
| 2942951 | NS1-.7501.252.00Z3000C4 | 0.7500 | Sharp | 1.250 | 2.000 | 2× | 4.00 | 0.750 | 2 | |
| 2942766 | NS1-.7502.252.25Z3000C5 | 0.7500 | Sharp | 2.250 | 2.250 | 3× | 5.00 | 0.750 | 1 | |
| 2942760 | NS1-.7501.253.00Z3000C5 | 0.7500 | Sharp | 1.250 | 3.000 | 4× | 5.00 | 0.750 | 2 | |
| 2942768 | NS1-.7503.003.00Z3000C6 | 0.7500 | Sharp | 3.000 | 3.000 | 4× | 6.00 | 0.750 | 1 | |
| 2942761 | NS1-.7501.254.00Z3000C6 | 0.7500 | Sharp | 1.250 | 4.000 | 5× | 6.00 | 0.750 | 2 | |
| 2942770 | NS1-.7504.004.00Z3000C7 | 0.7500 | Sharp | 4.000 | 4.000 | 5× | 7.00 | 0.750 | 1 | |
| 2942588 | NS1-.7501.001.00Z3015C3 | 0.7500 | 0.015 R | 1.000 | 1.000 | 1× | 3.00 | 0.750 | 1 | |
| 2942590 | NS1-.7501.501.50Z3015C6 | 0.7500 | 0.015 R | 1.500 | 1.500 | 2× | 6.00 | 0.750 | 1 | |
| 2942809 | NS1-.7502.121.62Z3015C4 | 0.7500 | 0.015 R | 1.625 | 1.625 | 2× | 4.00 | 0.750 | 1 | |
| 2942807 | NS1-.7501.252.00Z3015C4 | 0.7500 | 0.015 R | 1.250 | 2.000 | 2× | 4.00 | 0.750 | 2 | |
| 2942591 | NS1-.7502.252.25Z3015C5 | 0.7500 | 0.015 R | 2.250 | 2.250 | 3× | 5.00 | 0.750 | 1 | |
| 2942808 | NS1-.7501.253.00Z3015C5 | 0.7500 | 0.015 R | 1.250 | 3.000 | 4× | 5.00 | 0.750 | 2 | |
| 2942592 | NS1-.7503.003.00Z3015C6 | 0.7500 | 0.015 R | 3.000 | 3.000 | 4× | 6.00 | 0.750 | 1 | |
| 2942589 | NS1-.7501.254.00Z3015C6 | 0.7500 | 0.015 R | 1.250 | 4.000 | 5× | 6.00 | 0.750 | 2 | |
| 2942810 | NS1-.7504.004.00Z3015C7 | 0.7500 | 0.015 R | 4.000 | 4.000 | 5× | 7.00 | 0.750 | 1 | |
| 2942616 | NS1-.7501.001.00Z3030C3 | 0.7500 | 0.030 R | 1.000 | 1.000 | 1× | 3.00 | 0.750 | 1 | |
| 2942840 | NS1-.7501.501.50Z3030C6 | 0.7500 | 0.030 R | 1.500 | 1.500 | 2× | 6.00 | 0.750 | 1 | |
| 2942619 | NS1-.7502.121.62Z3030C4 | 0.7500 | 0.030 R | 1.625 | 1.625 | 2× | 4.00 | 0.750 | 1 | |
| 2942617 | NS1-.7501.252.00Z3030C4 | 0.7500 | 0.030 R | 1.250 | 2.000 | 2× | 4.00 | 0.750 | 2 | |
| 2942620 | NS1-.7502.252.25Z3030C5 | 0.7500 | 0.030 R | 2.250 | 2.250 | 3× | 5.00 | 0.750 | 1 | |
| 2942618 | NS1-.7501.253.00Z3030C5 | 0.7500 | 0.030 R | 1.250 | 3.000 | 4× | 5.00 | 0.750 | 2 | |
| 2942621 | NS1-.7503.003.00Z3030C6 | 0.7500 | 0.030 R | 3.000 | 3.000 | 4× | 6.00 | 0.750 | 1 | |
| 2942839 | NS1-.7501.254.00Z3030C6 | 0.7500 | 0.030 R | 1.250 | 4.000 | 5× | 6.00 | 0.750 | 2 | |
| 2942841 | NS1-.7504.004.00Z3030C7 | 0.7500 | 0.030 R | 4.000 | 4.000 | 5× | 7.00 | 0.750 | 1 | |
| 2942641 | NS1-.7501.001.00Z3060C3 | 0.7500 | 0.060 R | 1.000 | 1.000 | 1× | 3.00 | 0.750 | 1 | |
| 2942868 | NS1-.7501.501.50Z3060C6 | 0.7500 | 0.060 R | 1.500 | 1.500 | 2× | 6.00 | 0.750 | 1 | |
| 2942643 | NS1-.7502.121.62Z3060C4 | 0.7500 | 0.060 R | 1.625 | 1.625 | 2× | 4.00 | 0.750 | 1 | |
| 2942866 | NS1-.7501.252.00Z3060C4 | 0.7500 | 0.060 R | 1.250 | 2.000 | 2× | 4.00 | 0.750 | 2 | |
| 2942644 | NS1-.7502.252.25Z3060C5 | 0.7500 | 0.060 R | 2.250 | 2.250 | 3× | 5.00 | 0.750 | 1 | |
| 2942642 | NS1-.7501.253.00Z3060C5 | 0.7500 | 0.060 R | 1.250 | 3.000 | 4× | 5.00 | 0.750 | 2 | |
| 2942645 | NS1-.7503.003.00Z3060C6 | 0.7500 | 0.060 R | 3.000 | 3.000 | 4× | 6.00 | 0.750 | 1 | |
| 2942867 | NS1-.7501.254.00Z3060C6 | 0.7500 | 0.060 R | 1.250 | 4.000 | 5× | 6.00 | 0.750 | 2 | |
| 2942646 | NS1-.7504.004.00Z3060C7 | 0.7500 | 0.060 R | 4.000 | 4.000 | 5× | 7.00 | 0.750 | 1 | |
| 2942903 | NS1-.7501.001.00Z3090C3 | 0.7500 | 0.090 R | 1.000 | 1.000 | 1× | 3.00 | 0.750 | 1 | |
| 2942906 | NS1-.7501.501.50Z3090C6 | 0.7500 | 0.090 R | 1.500 | 1.500 | 2× | 6.00 | 0.750 | 1 | |
| 2942907 | NS1-.7502.121.62Z3090C4 | 0.7500 | 0.090 R | 1.625 | 1.625 | 2× | 4.00 | 0.750 | 1 | |
| 2942654 | NS1-.7501.252.00Z3090C4 | 0.7500 | 0.090 R | 1.250 | 2.000 | 2× | 4.00 | 0.750 | 2 | |
| 2942908 | NS1-.7502.252.25Z3090C5 | 0.7500 | 0.090 R | 2.250 | 2.250 | 3× | 5.00 | 0.750 | 1 | |
| 2942904 | NS1-.7501.253.00Z3090C5 | 0.7500 | 0.090 R | 1.250 | 3.000 | 4× | 5.00 | 0.750 | 2 | |
| 2942655 | NS1-.7503.003.00Z3090C6 | 0.7500 | 0.090 R | 3.000 | 3.000 | 4× | 6.00 | 0.750 | 1 | |
| 2942905 | NS1-.7501.254.00Z3090C6 | 0.7500 | 0.090 R | 1.250 | 4.000 | 5× | 6.00 | 0.750 | 2 | |
| 2942909 | NS1-.7504.004.00Z3090C7 | 0.7500 | 0.090 R | 4.000 | 4.000 | 5× | 7.00 | 0.750 | 1 | |
| 2942667 | NS1-.7501.001.00Z3125C3 | 0.7500 | 0.125 R | 1.000 | 1.000 | 1× | 3.00 | 0.750 | 1 | |
| 2942671 | NS1-.7501.501.50Z3125C6 | 0.7500 | 0.125 R | 1.500 | 1.500 | 2× | 6.00 | 0.750 | 1 | |
| 2942672 | NS1-.7502.121.62Z3125C4 | 0.7500 | 0.125 R | 1.625 | 1.625 | 2× | 4.00 | 0.750 | 1 | |
| 2942668 | NS1-.7501.252.00Z3125C4 | 0.7500 | 0.125 R | 1.250 | 2.000 | 2× | 4.00 | 0.750 | 2 | |
| 2942673 | NS1-.7502.252.25Z3125C5 | 0.7500 | 0.125 R | 2.250 | 2.250 | 3× | 5.00 | 0.750 | 1 | |
| 2942669 | NS1-.7501.253.00Z3125C5 | 0.7500 | 0.125 R | 1.250 | 3.000 | 4× | 5.00 | 0.750 | 2 | |
| 2942674 | NS1-.7503.003.00Z3125C6 | 0.7500 | 0.125 R | 3.000 | 3.000 | 4× | 6.00 | 0.750 | 1 | |
| 2942670 | NS1-.7501.254.00Z3125C6 | 0.7500 | 0.125 R | 1.250 | 4.000 | 5× | 6.00 | 0.750 | 2 | |
| 2942937 | NS1-.7504.004.00Z3125C7 | 0.7500 | 0.125 R | 4.000 | 4.000 | 5× | 7.00 | 0.750 | 1 | |
| 2942774 | NS1-1.001.501.50Z3000C6 | 1.0000 | Sharp | 1.500 | 1.500 | 1× | 6.00 | 1.000 | 1 | |
| 2942772 | NS1-1.001.501.50Z3000C4 | 1.0000 | Sharp | 1.500 | 1.500 | 1× | 4.00 | 1.000 | 1 | |
| 2942777 | NS1-1.002.002.00Z3000C4.5 | 1.0000 | Sharp | 2.000 | 2.000 | 2× | 4.50 | 1.000 | 1 | |
| 2942779 | NS1-1.002.252.25Z3000C5 | 1.0000 | Sharp | 2.250 | 2.250 | 2× | 5.00 | 1.000 | 1 | |
| 2942781 | NS1-1.002.622.62Z3000C6 | 1.0000 | Sharp | 2.625 | 2.625 | 2× | 6.00 | 1.000 | 1 | |
| 2942955 | NS1-1.001.503.00Z3000C5 | 1.0000 | Sharp | 1.500 | 3.000 | 3× | 5.00 | 1.000 | 2 | |
| 2942783 | NS1-1.003.003.00Z3000C6 | 1.0000 | Sharp | 3.000 | 3.000 | 3× | 6.00 | 1.000 | 1 | |
| 2942775 | NS1-1.001.504.00Z3000C6 | 1.0000 | Sharp | 1.500 | 4.000 | 4× | 6.00 | 1.000 | 2 | |
| 2942785 | NS1-1.004.004.00Z3000C7 | 1.0000 | Sharp | 4.000 | 4.000 | 4× | 7.00 | 1.000 | 1 | |
| 2942958 | NS1-1.001.505.00Z3000C7 | 1.0000 | Sharp | 1.500 | 5.000 | 5× | 7.00 | 1.000 | 2 | |
| 2942811 | NS1-1.001.501.50Z3015C6 | 1.0000 | 0.015 R | 1.500 | 1.500 | 1× | 6.00 | 1.000 | 1 | |
| 2942593 | NS1-1.001.501.50Z3015C4 | 1.0000 | 0.015 R | 1.500 | 1.500 | 1× | 4.00 | 1.000 | 1 | |
| 2942814 | NS1-1.002.002.00Z3015C4.5 | 1.0000 | 0.015 R | 2.000 | 2.000 | 2× | 4.50 | 1.000 | 1 | |
| 2942815 | NS1-1.002.252.25Z3015C5 | 1.0000 | 0.015 R | 2.250 | 2.250 | 2× | 5.00 | 1.000 | 1 | |
| 2942595 | NS1-1.002.622.62Z3015C6 | 1.0000 | 0.015 R | 2.625 | 2.625 | 2× | 6.00 | 1.000 | 1 | |
| 2942594 | NS1-1.001.503.00Z3015C5 | 1.0000 | 0.015 R | 1.500 | 3.000 | 3× | 5.00 | 1.000 | 2 | |
| 2942596 | NS1-1.003.003.00Z3015C6 | 1.0000 | 0.015 R | 3.000 | 3.000 | 3× | 6.00 | 1.000 | 1 | |
| 2942812 | NS1-1.001.504.00Z3015C6 | 1.0000 | 0.015 R | 1.500 | 4.000 | 4× | 6.00 | 1.000 | 2 | |
| 2942597 | NS1-1.004.004.00Z3015C7 | 1.0000 | 0.015 R | 4.000 | 4.000 | 4× | 7.00 | 1.000 | 1 | |
| 2942813 | NS1-1.001.505.00Z3015C7 | 1.0000 | 0.015 R | 1.500 | 5.000 | 5× | 7.00 | 1.000 | 2 | |
| 2942622 | NS1-1.001.501.50Z3030C4 | 1.0000 | 0.030 R | 1.500 | 1.500 | 1× | 4.00 | 1.000 | 1 | |
| 2942842 | NS1-1.001.501.50Z3030C6 | 1.0000 | 0.030 R | 1.500 | 1.500 | 1× | 6.00 | 1.000 | 1 | |
| 2942625 | NS1-1.002.002.00Z3030C4.5 | 1.0000 | 0.030 R | 2.000 | 2.000 | 2× | 4.50 | 1.000 | 1 | |
| 2942626 | NS1-1.002.252.25Z3030C5 | 1.0000 | 0.030 R | 2.250 | 2.250 | 2× | 5.00 | 1.000 | 1 | |
| 2942844 | NS1-1.002.622.62Z3030C6 | 1.0000 | 0.030 R | 2.625 | 2.625 | 2× | 6.00 | 1.000 | 1 | |
| 2942623 | NS1-1.001.503.00Z3030C5 | 1.0000 | 0.030 R | 1.500 | 3.000 | 3× | 5.00 | 1.000 | 2 | |
| 2942627 | NS1-1.003.003.00Z3030C6 | 1.0000 | 0.030 R | 3.000 | 3.000 | 3× | 6.00 | 1.000 | 1 | |
| 2942843 | NS1-1.001.504.00Z3030C6 | 1.0000 | 0.030 R | 1.500 | 4.000 | 4× | 6.00 | 1.000 | 2 | |
| 2942845 | NS1-1.004.004.00Z3030C7 | 1.0000 | 0.030 R | 4.000 | 4.000 | 4× | 7.00 | 1.000 | 1 | |
| 2942624 | NS1-1.001.505.00Z3030C7 | 1.0000 | 0.030 R | 1.500 | 5.000 | 5× | 7.00 | 1.000 | 2 | |
| 2942869 | NS1-1.001.501.50Z3060C4 | 1.0000 | 0.060 R | 1.500 | 1.500 | 1× | 4.00 | 1.000 | 1 | |
| 2942871 | NS1-1.001.501.50Z3060C6 | 1.0000 | 0.060 R | 1.500 | 1.500 | 1× | 6.00 | 1.000 | 1 | |
| 2942647 | NS1-1.002.002.00Z3060C4.5 | 1.0000 | 0.060 R | 2.000 | 2.000 | 2× | 4.50 | 1.000 | 1 | |
| 2942877 | NS1-1.002.252.25Z3060C5 | 1.0000 | 0.060 R | 2.250 | 2.250 | 2× | 5.00 | 1.000 | 1 | |
| 2942878 | NS1-1.002.622.62Z3060C6 | 1.0000 | 0.060 R | 2.625 | 2.625 | 2× | 6.00 | 1.000 | 1 | |
| 2942870 | NS1-1.001.503.00Z3060C5 | 1.0000 | 0.060 R | 1.500 | 3.000 | 3× | 5.00 | 1.000 | 2 | |
| 2942879 | NS1-1.003.003.00Z3060C6 | 1.0000 | 0.060 R | 3.000 | 3.000 | 3× | 6.00 | 1.000 | 1 | |
| 2942872 | NS1-1.001.504.00Z3060C6 | 1.0000 | 0.060 R | 1.500 | 4.000 | 4× | 6.00 | 1.000 | 2 | |
| 2942880 | NS1-1.004.004.00Z3060C7 | 1.0000 | 0.060 R | 4.000 | 4.000 | 4× | 7.00 | 1.000 | 1 | |
| 2942873 | NS1-1.001.505.00Z3060C7 | 1.0000 | 0.060 R | 1.500 | 5.000 | 5× | 7.00 | 1.000 | 2 | |
| 2942912 | NS1-1.001.501.50Z3090C6 | 1.0000 | 0.090 R | 1.500 | 1.500 | 1× | 6.00 | 1.000 | 1 | |
| 2942910 | NS1-1.001.501.50Z3090C4 | 1.0000 | 0.090 R | 1.500 | 1.500 | 1× | 4.00 | 1.000 | 1 | |
| 2942656 | NS1-1.002.002.00Z3090C4.5 | 1.0000 | 0.090 R | 2.000 | 2.000 | 2× | 4.50 | 1.000 | 1 | |
| 2942915 | NS1-1.002.252.25Z3090C5 | 1.0000 | 0.090 R | 2.250 | 2.250 | 2× | 5.00 | 1.000 | 1 | |
| 2942916 | NS1-1.002.622.62Z3090C6 | 1.0000 | 0.090 R | 2.625 | 2.625 | 2× | 6.00 | 1.000 | 1 | |
| 2942911 | NS1-1.001.503.00Z3090C5 | 1.0000 | 0.090 R | 1.500 | 3.000 | 3× | 5.00 | 1.000 | 2 | |
| 2942917 | NS1-1.003.003.00Z3090C6 | 1.0000 | 0.090 R | 3.000 | 3.000 | 3× | 6.00 | 1.000 | 1 | |
| 2942913 | NS1-1.001.504.00Z3090C6 | 1.0000 | 0.090 R | 1.500 | 4.000 | 4× | 6.00 | 1.000 | 2 | |
| 2942918 | NS1-1.004.004.00Z3090C7 | 1.0000 | 0.090 R | 4.000 | 4.000 | 4× | 7.00 | 1.000 | 1 | |
| 2942914 | NS1-1.001.505.00Z3090C7 | 1.0000 | 0.090 R | 1.500 | 5.000 | 5× | 7.00 | 1.000 | 2 | |
| 2942938 | NS1-1.001.501.50Z3125C4 | 1.0000 | 0.125 R | 1.500 | 1.500 | 1× | 4.00 | 1.000 | 1 | |
| 2942940 | NS1-1.001.501.50Z3125C6 | 1.0000 | 0.125 R | 1.500 | 1.500 | 1× | 6.00 | 1.000 | 1 | |
| 2942942 | NS1-1.002.002.00Z3125C4.5 | 1.0000 | 0.125 R | 2.000 | 2.000 | 2× | 4.50 | 1.000 | 1 | |
| 2942943 | NS1-1.002.252.25Z3125C5 | 1.0000 | 0.125 R | 2.250 | 2.250 | 2× | 5.00 | 1.000 | 1 | |
| 2942944 | NS1-1.002.622.62Z3125C6 | 1.0000 | 0.125 R | 2.625 | 2.625 | 2× | 6.00 | 1.000 | 1 | |
| 2942939 | NS1-1.001.503.00Z3125C5 | 1.0000 | 0.125 R | 1.500 | 3.000 | 3× | 5.00 | 1.000 | 2 | |
| 2942676 | NS1-1.003.003.00Z3125C6 | 1.0000 | 0.125 R | 3.000 | 3.000 | 3× | 6.00 | 1.000 | 1 | |
| 2942941 | NS1-1.001.504.00Z3125C6 | 1.0000 | 0.125 R | 1.500 | 4.000 | 4× | 6.00 | 1.000 | 2 | |
| 2942677 | NS1-1.004.004.00Z3125C7 | 1.0000 | 0.125 R | 4.000 | 4.000 | 4× | 7.00 | 1.000 | 1 | |
| 2942675 | NS1-1.001.505.00Z3125C7 | 1.0000 | 0.125 R | 1.500 | 5.000 | 5× | 7.00 | 1.000 | 2 | |
| 2942787 | NS1-1.252.002.00Z3000C4.5 | 1.2500 | Sharp | 2.000 | 2.000 | 1× | 4.50 | 1.250 | 1 | |
| 2942789 | NS1-1.253.003.00Z3000C6 | 1.2500 | Sharp | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 | |
| 2942816 | NS1-1.252.002.00Z3015C4.5 | 1.2500 | 0.015 R | 2.000 | 2.000 | 1× | 4.50 | 1.250 | 1 | |
| 2942817 | NS1-1.253.003.00Z3015C6 | 1.2500 | 0.015 R | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 | |
| 2942846 | NS1-1.252.002.00Z3030C4.5 | 1.2500 | 0.030 R | 2.000 | 2.000 | 1× | 4.50 | 1.250 | 1 | |
| 2942628 | NS1-1.253.003.00Z3030C6 | 1.2500 | 0.030 R | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 | |
| 2942881 | NS1-1.252.002.00Z3060C4.5 | 1.2500 | 0.060 R | 2.000 | 2.000 | 1× | 4.50 | 1.250 | 1 | |
| 2942882 | NS1-1.253.003.00Z3060C6 | 1.2500 | 0.060 R | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 | |
| 2942919 | NS1-1.252.002.00Z3090C4.5 | 1.2500 | 0.090 R | 2.000 | 2.000 | 1× | 4.50 | 1.250 | 1 | |
| 2942920 | NS1-1.253.003.00Z3090C6 | 1.2500 | 0.090 R | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 | |
| 2942678 | NS1-1.252.002.00Z3125C4.5 | 1.2500 | 0.125 R | 2.000 | 2.000 | 1× | 4.50 | 1.250 | 1 | |
| 2942945 | NS1-1.253.003.00Z3125C6 | 1.2500 | 0.125 R | 3.000 | 3.000 | 2× | 6.00 | 1.250 | 1 |
