Series: DCGT ST Chipbreaker

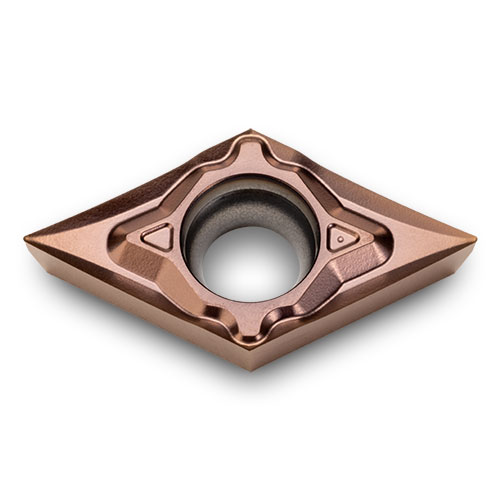

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° clearance 55° rhombic ground insert
- For maximum depth of cut on Swiss type lathes
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness |
D1 Fixing Hole Dia. |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCGT32.50.5M-ST-F | DCGT11T302M-ST-F | 2 | 0.375 | 0.008 | 0.475 | 0.156 | 0.173 | 0.0012 | 0.0039 | 0.020 | 0.197 |
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness |
D1 Fixing Hole Dia. |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCGT32.50.5M-ST-E | DCGT11T302M-ST-E | 2 | 0.375 | 0.008 | 0.475 | 0.156 | 0.173 | 0.0012 | 0.0039 | 0.020 | 0.197 | |
| DCGT32.50.5M-ST-F | DCGT11T302M-ST-F | 2 | 0.375 | 0.008 | 0.475 | 0.156 | 0.173 | 0.0012 | 0.0039 | 0.020 | 0.197 | |
| DCGT32.50M-ST-E | DCGT11T301M-ST-E | 2 | 0.375 | 0.004 | 0.475 | 0.156 | 0.173 | 0.0012 | 0.0031 | 0.012 | 0.197 | |
| DCGT32.50M-ST-F | DCGT11T301M-ST-F | 2 | 0.375 | 0.004 | 0.475 | 0.156 | 0.173 | 0.0012 | 0.0031 | 0.012 | 0.197 | |
| DCGT32.51M-ST-E | DCGT11T304M-ST-E | 2 | 0.375 | 0.016 | 0.475 | 0.156 | 0.173 | 0.0020 | 0.0047 | 0.028 | 0.197 | |
| DCGT32.51M-ST-F | DCGT11T304M-ST-F | 2 | 0.375 | 0.016 | 0.475 | 0.156 | 0.173 | 0.0020 | 0.0047 | 0.028 | 0.197 |
