Series: NSB_3 - 3-Flute Ball Nose SCEM

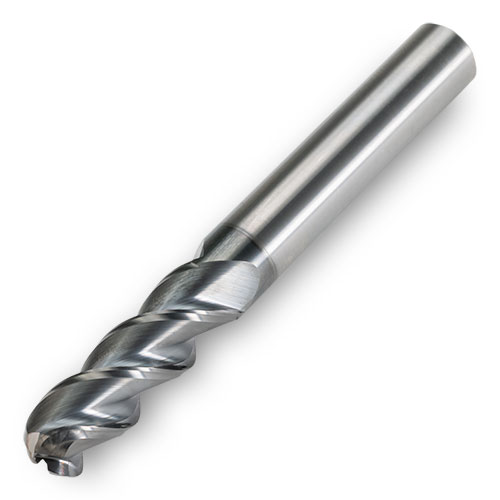

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.125" - 1.250"
- For Aluminum and NonFerrous materials
- Cylindrical shank
- 3-Flute, 45° Helix
- Variable Pitch
- 1xD~6xD APMX, and up to 8xD LUX
- Grade: IN3305 (DLC, Ta-C, ~6000HV)
EDP |
Part Number |
DC Cutting Dia. |
PRFRAD Profile Radius |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
DN Neck Dia. |
DCON Shank Dia. |

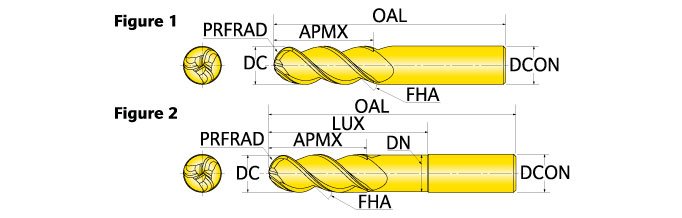

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2942680 | NSB-.125.250.250Z3062C1.5 | 0.1250 | 0.063 | 0.250 | 0.250 | 2× | 1.500 | - | 0.125 | 1 | |
| 2942682 | NSB-.125.500.500Z3062C1.5 | 0.1250 | 0.063 | 0.500 | 0.500 | 4× | 1.500 | - | 0.125 | 1 | |
| 2942684 | NSB-.187.312.312Z3094C2 | 0.1875 | 0.094 | 0.312 | 0.313 | 1× | 2.000 | - | 0.188 | 1 | |
| 2942686 | NSB-.187.562.562Z3094C2 | 0.1875 | 0.094 | 0.562 | 0.563 | 3× | 2.000 | - | 0.188 | 1 | |
| 2942688 | NSB-.250.375.375Z3125C2 | 0.2500 | 0.125 | 0.375 | 0.375 | 1× | 2.000 | - | 0.250 | 1 | |
| 2942690 | NSB-.250.5001.25Z3125C3 | 0.2500 | 0.125 | 0.500 | 1.250 | 5× | 3.000 | 0.235 | 0.250 | 2 | |
| 2942692 | NSB-.250.5002.12Z3125C4 | 0.2500 | 0.125 | 0.500 | 2.125 | 8× | 4.000 | 0.235 | 0.250 | 2 | |
| 2942694 | NSB-.250.750.750Z3125C2.5 | 0.2500 | 0.125 | 0.750 | 0.750 | 3× | 2.500 | - | 0.250 | 1 | |
| 2942696 | NSB-.2501.001.00Z3125C3 | 0.2500 | 0.125 | 1.000 | 1.000 | 4× | 3.000 | - | 0.250 | 1 | |
| 2942698 | NSB-.2501.251.25Z3125C4 | 0.2500 | 0.125 | 1.250 | 1.250 | 5× | 4.000 | - | 0.250 | 1 | |
| 2942700 | NSB-.312.500.500Z3156C2 | 0.3125 | 0.156 | 0.500 | 0.500 | 1× | 2.000 | - | 0.313 | 1 | |
| 2942702 | NSB-.312.875.875Z3156C2.5 | 0.3125 | 0.156 | 0.875 | 0.875 | 2× | 2.500 | - | 0.313 | 1 | |
| 2942704 | NSB-.3121.001.00Z3156C3 | 0.3125 | 0.156 | 1.000 | 1.000 | 3× | 3.000 | - | 0.313 | 1 | |
| 2942706 | NSB-.3121.251.25Z3156C4 | 0.3125 | 0.156 | 1.250 | 1.250 | 4× | 4.000 | - | 0.313 | 1 | |
| 2942708 | NSB-.375.500.500Z3187C2 | 0.3750 | 0.188 | 0.500 | 0.500 | 1× | 2.000 | - | 0.375 | 1 | |
| 2942710 | NSB-.375.7501.25Z3187C3 | 0.3750 | 0.188 | 0.750 | 1.250 | 3× | 3.000 | 0.360 | 0.375 | 2 | |
| 2942712 | NSB-.375.7502.12Z3187C4 | 0.3750 | 0.188 | 0.750 | 2.125 | 5× | 4.000 | 0.360 | 0.375 | 2 | |
| 2942714 | NSB-.3751.001.00Z3187C2.5 | 0.3750 | 0.188 | 1.000 | 1.000 | 2× | 2.500 | - | 0.375 | 1 | |
| 2942716 | NSB-.3751.001.00Z3187C3 | 0.3750 | 0.188 | 1.000 | 1.000 | 2× | 3.000 | - | 0.375 | 1 | |
| 2942718 | NSB-.3751.501.50Z3187C4 | 0.3750 | 0.188 | 1.500 | 1.500 | 4× | 4.000 | - | 0.375 | 1 | |
| 2942720 | NSB-.4371.001.00Z3219C2.7 | 0.4375 | 0.219 | 1.000 | 1.000 | 2× | 2.750 | - | 0.438 | 1 | |
| 2942722 | NSB-.4371.501.50Z3219C4 | 0.4375 | 0.219 | 1.500 | 1.500 | 3× | 4.000 | - | 0.438 | 1 | |
| 2942724 | NSB-.4372.002.00Z3219C4 | 0.4375 | 0.219 | 2.000 | 2.000 | 4× | 4.000 | - | 0.438 | 1 | |
| 2942726 | NSB-.500.625.625Z3250C2.5 | 0.5000 | 0.250 | 0.625 | 0.625 | 1× | 2.500 | - | 0.500 | 1 | |
| 2942728 | NSB-.500.8751.37Z3250C3 | 0.5000 | 0.250 | 0.875 | 1.375 | 2× | 3.000 | 0.480 | 0.500 | 2 | |
| 2942730 | NSB-.500.8752.12Z3250C4 | 0.5000 | 0.250 | 0.875 | 2.125 | 4× | 4.000 | 0.480 | 0.500 | 2 | |
| 2942963 | NSB-.500.8753.12Z3250C5 | 0.5000 | 0.250 | 0.875 | 3.125 | 6× | 5.000 | 0.480 | 0.500 | 2 | |
| 2942732 | NSB-.500.8754.12Z3250C6 | 0.5000 | 0.250 | 0.875 | 4.125 | 8× | 6.000 | 0.480 | 0.500 | 2 | |
| 2942734 | NSB-.5001.251.25Z3250C3 | 0.5000 | 0.250 | 1.250 | 1.250 | 2× | 3.000 | - | 0.500 | 1 | |
| 2942736 | NSB-.5001.501.50Z3250C4 | 0.5000 | 0.250 | 1.500 | 1.500 | 3× | 4.000 | - | 0.500 | 1 | |
| 2942738 | NSB-.5001.501.50Z3250C6 | 0.5000 | 0.250 | 1.500 | 1.500 | 3× | 6.000 | - | 0.500 | 1 | |
| 2942740 | NSB-.5002.002.00Z3250C4 | 0.5000 | 0.250 | 2.000 | 2.000 | 4× | 4.000 | - | 0.500 | 1 | |
| 2942742 | NSB-.5002.502.50Z3250C5 | 0.5000 | 0.250 | 2.500 | 2.500 | 5× | 5.000 | - | 0.500 | 1 | |
| 2942744 | NSB-.5003.123.12Z3250C6 | 0.5000 | 0.250 | 3.125 | 3.125 | 6× | 6.000 | - | 0.500 | 1 | |
| 2942746 | NSB-.625.750.750Z3313C3 | 0.6250 | 0.313 | 0.750 | 0.750 | 1× | 3.000 | - | 0.625 | 1 | |
| 2942947 | NSB-.6251.002.00Z3313C4 | 0.6250 | 0.313 | 1.000 | 2.000 | 3× | 4.000 | 0.595 | 0.625 | 2 | |
| 2942949 | NSB-.6251.003.00Z3313C5 | 0.6250 | 0.313 | 1.000 | 3.000 | 4× | 5.000 | 0.595 | 0.625 | 2 | |
| 2942950 | NSB-.6251.004.00Z3313C6 | 0.6250 | 0.313 | 1.000 | 4.000 | 6× | 6.000 | 0.595 | 0.625 | 2 | |
| 2942749 | NSB-.6251.251.25Z3313C3.5 | 0.6250 | 0.313 | 1.250 | 1.250 | 2× | 3.500 | - | 0.625 | 1 | |
| 2942751 | NSB-.6251.501.50Z3313C6 | 0.6250 | 0.313 | 1.500 | 1.500 | 2× | 6.000 | - | 0.625 | 1 | |
| 2942753 | NSB-.6252.002.00Z3313C4 | 0.6250 | 0.313 | 2.000 | 2.000 | 3× | 4.000 | - | 0.625 | 1 | |
| 2942755 | NSB-.6252.252.25Z3313C5 | 0.6250 | 0.313 | 2.250 | 2.250 | 3× | 5.000 | - | 0.625 | 1 | |
| 2942757 | NSB-.6253.003.00Z3313C6 | 0.6250 | 0.313 | 3.000 | 3.000 | 4× | 6.000 | - | 0.625 | 1 | |
| 2942759 | NSB-.7501.001.00Z3375C3 | 0.7500 | 0.375 | 1.000 | 1.000 | 1× | 3.000 | - | 0.750 | 1 | |
| 2942952 | NSB-.7501.252.00Z3375C4 | 0.7500 | 0.375 | 1.250 | 2.000 | 2× | 4.000 | 0.720 | 0.750 | 2 | |
| 2942953 | NSB-.7501.253.00Z3375C5 | 0.7500 | 0.375 | 1.250 | 3.000 | 4× | 5.000 | 0.720 | 0.750 | 2 | |
| 2942954 | NSB-.7501.254.00Z3375C6 | 0.7500 | 0.375 | 1.250 | 4.000 | 5× | 6.000 | 0.720 | 0.750 | 2 | |
| 2942763 | NSB-.7501.501.50Z3375C6 | 0.7500 | 0.375 | 1.500 | 1.500 | 2× | 6.000 | - | 0.750 | 1 | |
| 2942765 | NSB-.7502.121.62Z3375C4 | 0.7500 | 0.375 | 1.625 | 1.625 | 2× | 4.000 | - | 0.750 | 1 | |
| 2942767 | NSB-.7502.252.25Z3375C5 | 0.7500 | 0.375 | 2.250 | 2.250 | 3× | 5.000 | - | 0.750 | 1 | |
| 2942769 | NSB-.7503.003.00Z3375C6 | 0.7500 | 0.375 | 3.000 | 3.000 | 4× | 6.000 | - | 0.750 | 1 | |
| 2942771 | NSB-.7504.004.00Z3375C7 | 0.7500 | 0.375 | 4.000 | 4.000 | 5× | 7.000 | - | 0.750 | 1 | |
| 2942773 | NSB-1.001.501.50Z3500C4 | 1.0000 | 0.500 | 1.500 | 1.500 | 1× | 4.000 | - | 1.000 | 1 | |
| 2942956 | NSB-1.001.503.00Z3500C5 | 1.0000 | 0.500 | 1.500 | 3.000 | 3× | 5.000 | 0.965 | 1.000 | 2 | |
| 2942776 | NSB-1.001.501.50Z3500C6 | 1.0000 | 0.500 | 1.500 | 1.500 | 1× | 6.000 | - | 1.000 | 1 | |
| 2942957 | NSB-1.001.504.00Z3500C6 | 1.0000 | 0.500 | 1.500 | 4.000 | 4× | 6.000 | 0.965 | 1.000 | 2 | |
| 2942959 | NSB-1.001.505.00Z3500C7 | 1.0000 | 0.500 | 1.500 | 5.000 | 5× | 7.000 | 0.965 | 1.000 | 2 | |
| 2942778 | NSB-1.002.002.00Z3500C4.5 | 1.0000 | 0.500 | 2.000 | 2.000 | 2× | 4.500 | - | 1.000 | 1 | |
| 2942780 | NSB-1.002.252.25Z3500C5 | 1.0000 | 0.500 | 2.250 | 2.250 | 2× | 5.000 | - | 1.000 | 1 | |
| 2942782 | NSB-1.002.622.62Z3500C6 | 1.0000 | 0.500 | 2.625 | 2.625 | 2× | 6.000 | - | 1.000 | 1 | |
| 2942784 | NSB-1.003.003.00Z3500C6 | 1.0000 | 0.500 | 3.000 | 3.000 | 3× | 6.000 | - | 1.000 | 1 | |
| 2942786 | NSB-1.004.004.00Z3500C7 | 1.0000 | 0.500 | 4.000 | 4.000 | 4× | 7.000 | - | 1.000 | 1 | |
| 2942788 | NSB-1.252.002.00Z3625C4.5 | 1.2500 | 0.625 | 2.000 | 2.000 | 1× | 4.500 | - | 1.250 | 1 | |
| 2942790 | NSB-1.253.003.00Z3625C6 | 1.2500 | 0.625 | 3.000 | 3.000 | 2× | 6.000 | - | 1.250 | 1 |
