Series: Typhoon TJS_SJET_CAT

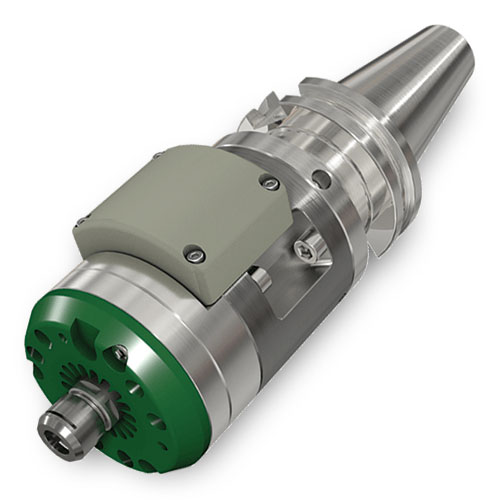

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- CAT V-Flange
- Coolant Driven High Speed Compact Spindle
- For use with small diameter tools on limited-RPM machines
- Rotational Speeds of 35-55KRPM
- Required Coolant Pressure 290-580psi
- Maximum Tool Shank Diameter .276"/7mm
- For use in finish & semi-finish applications
- Balanced G2.5 @ 60,000 rpm
- Bluetooth transmitter works with Jet Spindle Monitor app

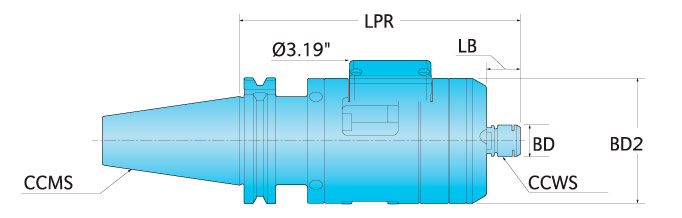

EDP |
Part Number |
CCMS Connection Code Machine Side |
CCWS Connection Code Workpiece Side |
LPR Protruding Length |
BD Body Dia. |
BD2 Body Dia. 2 |
BD3 Body Dia. 3 |
LB1 Body Length 1 |
LB2 Body Length 2 |
LB3 Body Length 3 |
LB4 Body Length 4 |
LBX Body Length Max. |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
DCP Data Chip Provision |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3475854 | TJS-SJET-CAT40 | CAT40 | ER11 | 5.480 | 0.630 | 2.153 | 2.480 | 0.670 | 0.953 | 1.767 | 3.400 | 3.890 | 1 | 3 | Yes | 5.5 |
Notes:
- SATISFACTION GUARANTEE!
- Qualification Form approval needed prior to formal quote and/or purchase. All applications are reviewed upfront to ensure compatibility with the selected model. Demo units are provided at no cost, no obligation prior to purchase.
