Series: Typhoon TJS_SJET_BT

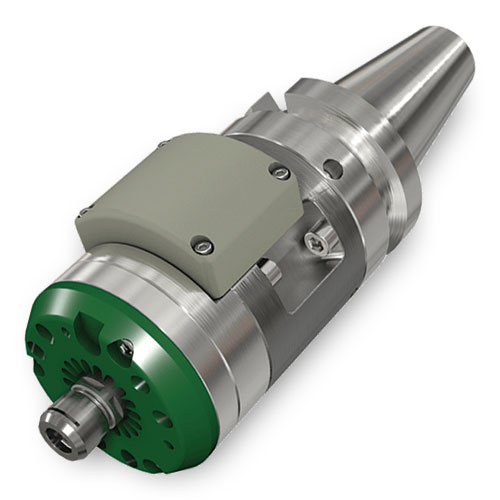

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- BT MAS-403
- Coolant driven high speed compact spindle
- For use with small diameter tools on limited-RPM machines
- Rotational Speeds of 35-55KRPM
- Required Coolant Pressure 290-580psi
- Maximum Tool Shank Diameter .276"/7mm
- For use in finish & semi-finish applications
- Balanced G2.5 @ 60,000 rpm
- Bluetooth display required for operation (Sold Separately)

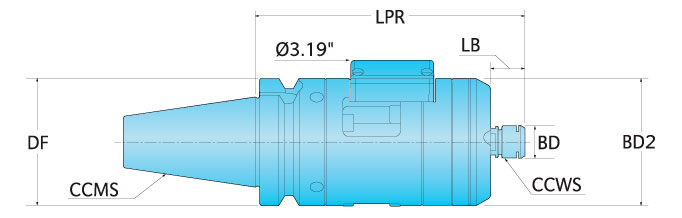

EDP |
Part Number |
CCMS Connection Code Machine Side |
CCWS Connection Code Workpiece Side |
LPR Protruding Length |
BD Body Dia. |
BD2 Body Dia. 2 |
BD3 Body Dia. 3 |
LB1 Body Length 1 |
LB2 Body Length 2 |
LB3 Body Length 3 |
LB4 Body Length 4 |
LBX Body Length Max. |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
DCP Data Chip Provision |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3475852 | TJS-SJET-BT30 | BT30 | ER11 | 5.406 | 0.630 | 2.153 | 2.480 | 0.669 | 0.953 | 1.768 | 3.398 | 3.890 | 1 | 3 | Yes | 4.4 | |
| 3475853 | TJS-SJET-BT40 | BT40 | ER11 | 5.161 | 0.630 | 2.153 | 2.480 | 0.669 | 0.953 | 1.768 | 3.398 | 3.890 | 1 | 3 | Yes | 5.5 |
Notes:
- SATISFACTION GUARANTEE!
- Qualification Form approval needed prior to formal quote and/or purchase. All applications are reviewed upfront to ensure compatibility with the selected model. Demo units are provided at no cost, no obligation prior to purchase.
