Series: CC** - IT.TE.DI. PCD ISO

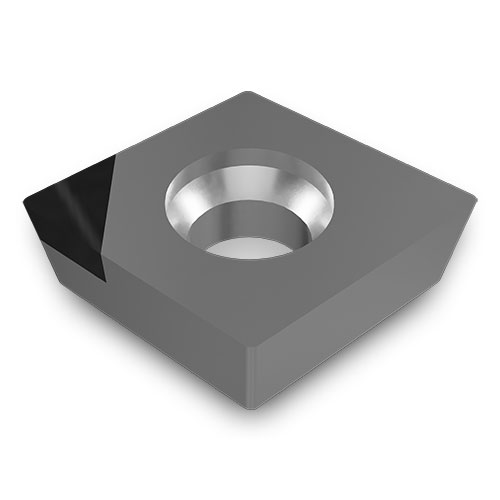

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° Clearance 80° Rhombic PCD Inserts
- Tipped, Full Edge, Eco-Tipped, Finishing Chipbreaker, and Roughing Chipbreaker Inserts
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
GAN Insert Rake Angle |
ap DOC Max. |
IH Insert Hand |
CBMD Chip Breaker Manufacturer's Designation |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202L | CCGT220.5L | 1 | 6.35 mm | 0.20 mm | 6.40 mm | 2.38 mm | 2.80 mm | 7 | 6.35 mm | Left | NA | T - Screw | |
| CCGT060202R | CCGT220.5R | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | 7 | 6.350 | Right | NA | T - Screw | |
| CCGT060204L | CCGT221L | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | 7 | 6.350 | Left | NA | T - Screw | |
| CCGT060204R | CCGT221R | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | 7 | 6.350 | Right | NA | T - Screw | |
| CCGT09T302L | CCGT330.5L | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | 10 | 9.520 | Left | NA | T - Screw | |
| CCGT09T302R | CCGT330.5R | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | 10 | 9.520 | Right | NA | T - Screw | |
| CCGT09T304L | CCGT331L | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | 10 | 9.520 | Left | NA | T - Screw | |
| CCGT09T304R | CCGT331R | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | 10 | 9.520 | Right | NA | T - Screw | |
| CCGT09T308L | CCGT32.52L | 1 | 9.52 mm | 0.80 mm | 9.70 mm | 3.97 mm | 4.40 mm | 10 | 9.70 mm | Left | NA | T - Screw | |
| CCGT120404L | CCGT431L | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | 10 | 12.700 | Left | NA | T - Screw | |
| CCGT120404R | CCGT431R | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | 10 | 12.700 | Right | NA | T - Screw | |
| CCGT120408L | CCGT120408L | 1 | 12.70 mm | 0.80 mm | 12.90 mm | 4.76 mm | 5.50 mm | 10 | 12.70 mm | Left | NA | T - Screw | |
| CCGT120408R | CCGT120408R | 1 | 12.70 mm | 0.80 mm | 12.90 mm | 4.76 mm | 5.50 mm | 10 | 12.70 mm | Right | NA | T - Screw | |
| CCGW060202L | CCGW220.5L | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | - | 6.350 | Left | NA | W - Screw | |
| CCGW060202R | CCGW220.5R | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | - | 6.350 | Right | NA | W - Screw | |
| CCGW060204L | CCGW221L | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 6.350 | Left | NA | W - Screw | |
| CCGW060204R | CCGW221R | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 6.350 | Right | NA | W - Screw | |
| CCGW09T302L | CCGW330.5L | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 9.520 | Left | NA | W - Screw | |
| CCGW09T302R | CCGW330.5R | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 9.520 | Right | NA | W - Screw | |
| CCGW09T304L | CCGW331L | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 9.520 | Left | NA | W - Screw | |
| CCGW09T304R | CCGW331R | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 9.520 | Right | NA | W - Screw | |
| CCGW09T308L | CCGW332L | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 9.520 | Left | NA | W - Screw | |
| CCGW09T308R | CCGW332R | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 9.520 | Right | NA | W - Screw | |
| CCGW120404L | CCGW431L | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | - | 12.700 | Left | NA | W - Screw | |
| CCGW120404R | CCGW431R | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | - | 12.700 | Right | NA | W - Screw | |
| CCGW120408L | CCGW432L | 1 | 12.700 | 0.800 | 12.900 | 4.760 | 5.500 | - | 12.700 | Left | NA | W - Screw | |
| CCGW120408R | CCGW432R | 1 | 12.700 | 0.800 | 12.900 | 4.760 | 5.500 | - | 12.700 | Right | NA | W - Screw | |
| CCGW120410L | CCGW433L | 1 | 12.70 mm | 1.00 mm | 12.90 mm | 4.76 mm | 5.50 mm | - | 12.70 mm | Left | NA | W - Screw | |
| CCMT060202- | CCMT220.5- | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | 7 | 3.000 | Neutral | NA | W - Screw | |
| CCMT060204- | CCMT221- | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | 7 | 3.000 | Neutral | NA | W - Screw | |
| CCMT060208- | CCMT060208- | 1 | 6.35 mm | 0.80 mm | 6.40 mm | 2.38 mm | 2.80 mm | 7 | 3.00 mm | Neutral | NA | T - Screw | |
| CCMT09T302- | CCMT330.5- | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMT09T304- | CCMT331- | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMT09T308- | CCMT332- | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMT120402- | CCMT430.5- | 1 | 12.700 | 0.200 | 12.900 | 4.760 | 5.500 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMT120404- | CCMT431- | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMT120408- | CCMT432- | 1 | 12.700 | 0.800 | 12.900 | 4.760 | 5.500 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMT120412- | CCMT433- | 1 | 12.700 | 1.200 | 12.900 | 4.760 | 5.500 | 10 | 4.000 | Neutral | NA | W - Screw | |
| CCMW060202- | CCMW220.5- | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | NA | W - Screw | |
| CCMW060202- FI | CCMW220.5- FI | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| CCMW060202- RO | CCMW220.5- RO | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| CCMW060202E | CCMW220.5E | 1 | 6.350 | 0.200 | 6.400 | 2.380 | 2.800 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW060204- | CCMW221- | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | NA | W - Screw | |
| CCMW060204- FI | CCMW221- FI | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| CCMW060204- RO | CCMW221- RO | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| CCMW060204E | CCMW221E | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW060204E WL | CCMW221E WL | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 2.500 | Left | WL - Wiper Left | W - Screw | |
| CCMW060204E WR | CCMW221E WR | 1 | 6.350 | 0.400 | 6.400 | 2.380 | 2.800 | - | 2.500 | Right | WR - Wiper Right | W - Screw | |
| CCMW060208- | CCMW222- | 1 | 6.350 | 0.800 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | NA | W - Screw | |
| CCMW060208- FI | CCMW222- FI | 1 | 6.350 | 0.800 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| CCMW060208- RO | CCMW222- RO | 1 | 6.350 | 0.800 | 6.400 | 2.380 | 2.800 | - | 3.000 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| CCMW080304- | CCMW2.521- | 1 | 7.940 | 0.400 | 8.100 | 3.180 | 3.400 | - | 3.000 | Neutral | NA | W - Screw | |
| CCMW080308- | CCMW2.522- | 1 | 7.940 | 0.800 | 8.100 | 3.180 | 3.400 | - | 3.000 | Neutral | NA | W - Screw | |
| CCMW090304- | CCMW321- | 1 | 9.520 | 0.400 | 9.700 | 3.180 | 4.400 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW090308- | CCMW322- | 1 | 9.520 | 0.800 | 9.700 | 3.180 | 4.400 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW09T302- | CCMW330.5- | 1 | 9.520 | 0.200 | 9.700 | 3.180 | 4.400 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW09T302- FI | CCMW330.5- FI | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| CCMW09T302- RO | CCMW330.5- RO | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| CCMW09T302- WL | CCMW330.5- WL | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 4.000 | Left | NA | W - Screw | |
| CCMW09T302- WR | CCMW330.5- WR | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 4.000 | Right | NA | W - Screw | |
| CCMW09T302E | CCMW330.5E | 1 | 9.520 | 0.200 | 9.700 | 3.970 | 4.400 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW09T304- | CCMW331- | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW09T304- FI | CCMW331- FI | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| CCMW09T304- RO | CCMW331- RO | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| CCMW09T304- WL | CCMW331- WL | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 4.000 | Left | NA | W - Screw | |
| CCMW09T304- WR | CCMW331- WR | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 4.000 | Right | NA | W - Screw | |
| CCMW09T304E | CCMW331E | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW09T304E WL | CCMW331E WL | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 2.500 | Left | WL - Wiper Left | W - Screw | |
| CCMW09T304E WR | CCMW331E WR | 1 | 9.520 | 0.400 | 9.700 | 3.970 | 4.400 | - | 2.500 | Right | WR - Wiper Right | W - Screw | |
| CCMW09T308- | CCMW09T308- | 1 | 9.52 mm | 0.80 mm | 9.70 mm | 3.97 mm | 4.40 mm | - | 4.00 mm | Neutral | NA | W - Screw | |
| CCMW09T308- FI | CCMW332- FI | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| CCMW09T308- RO | CCMW332- RO | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 4.000 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| CCMW09T308- WL | CCMW332- WL | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 4.000 | Left | NA | W - Screw | |
| CCMW09T308- WR | CCMW332- WR | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 4.000 | Right | NA | W - Screw | |
| CCMW09T308E | CCMW332E | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW09T308E WL | CCMW332E WL | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 2.500 | Left | WL - Wiper Left | W - Screw | |
| CCMW09T308E WR | CCMW332E WR | 1 | 9.520 | 0.800 | 9.700 | 3.970 | 4.400 | - | 2.500 | Right | WR - Wiper Right | W - Screw | |
| CCMW120402- | CCMW430.5- | 1 | 12.700 | 0.200 | 12.900 | 4.760 | 5.500 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW120402E | CCMW430.5E | 1 | 12.700 | 0.200 | 12.900 | 4.760 | 5.500 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW120404- | CCMW431- | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW120404E | CCMW431E | 1 | 12.700 | 0.400 | 12.900 | 4.760 | 5.500 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW120408- | CCMW432- | 1 | 12.700 | 0.800 | 12.900 | 4.760 | 5.500 | - | 4.000 | Neutral | NA | W - Screw | |
| CCMW120408E | CCMW432E | 1 | 12.700 | 0.800 | 12.900 | 4.760 | 5.500 | - | 2.500 | Neutral | NA | W - Screw | |
| CCMW120412- | CCMW433- | 1 | 12.700 | 1.200 | 12.900 | 4.760 | 5.500 | - | 4.000 | Neutral | NA | W - Screw |
