Series: DC** - IT.TE.DI. PCD ISO

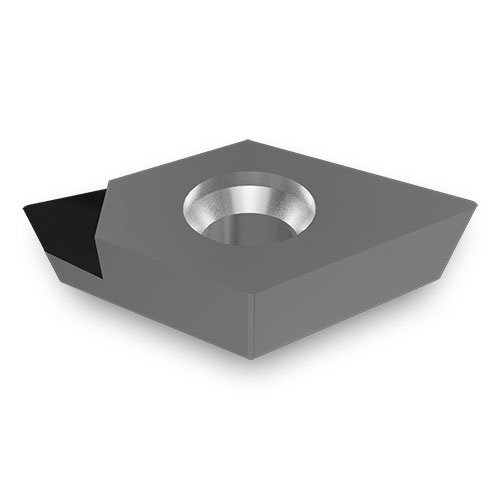

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° Clearance 55° Rhombic PCD Inserts
ISO Number |
ANSI Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
GAN Insert Rake Angle |
ap DOC Max. |
IH Insert Hand |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCMT070202- | DCMT1.820.5- | 1 | 6.350 | 0.200 | 7.750 | 2.380 | 2.800 | 7 | 3.000 | Left | T - Screw | |
| DCMT070204- | DCMT1.821- | 1 | 6.350 | 0.400 | 7.750 | 2.380 | 2.800 | 7 | 3.000 | NA | T - Screw | |
| DCMT070208- | DCMT1.822- | 1 | 6.350 | 0.800 | 7.750 | 2.380 | 2.800 | 7 | 3.000 | NA | T - Screw | |
| DCMT11T302- | DCMT3.530.5- | 1 | 9.520 | 0.200 | 11.600 | 3.970 | 4.400 | 10 | 4.000 | NA | T - Screw | |
| DCMT11T304- | DCMT3.531- | 1 | 9.520 | 0.400 | 11.600 | 3.970 | 4.400 | 10 | 4.000 | NA | T - Screw | |
| DCMT11T308- | DCMT3.532- | 1 | 9.520 | 0.800 | 11.600 | 3.970 | 4.400 | 10 | 4.000 | NA | T - Screw | |
| DCMW070202- | DCMW1.820.5- | 1 | 6.350 | 0.200 | 7.750 | 2.380 | 2.800 | - | 3.000 | NA | W - Screw | |
| DCMW070202E | DCMW1.820.5E | 1 | 6.350 | 0.200 | 7.150 | 2.380 | 2.800 | - | 2.500 | NA | W - Screw | |
| DCMW070204- | DCMW1.821- | 1 | 6.350 | 0.400 | 7.750 | 2.380 | 2.800 | - | 3.000 | NA | W - Screw | |
| DCMW070204E | DCMW1.821E | 1 | 6.350 | 0.400 | 7.150 | 2.380 | 2.800 | - | 2.500 | NA | W - Screw | |
| DCMW070208- | DCMW1.822- | 1 | 6.350 | 0.800 | 7.750 | 2.380 | 2.800 | - | 3.000 | NA | W - Screw | |
| DCMW11T302- | DCMW3.530.5- | 1 | 9.520 | 0.200 | 11.600 | 3.970 | 4.400 | - | 4.000 | NA | W - Screw | |
| DCMW11T302E | DCMW3.530.5E | 1 | 9.520 | 0.200 | 11.600 | 3.970 | 4.400 | - | 2.500 | NA | W - Screw | |
| DCMW11T304- | DCMW3.531- | 1 | 9.520 | 0.400 | 11.600 | 3.970 | 4.400 | - | 4.000 | NA | W - Screw | |
| DCMW11T304E | DCMW3.531E | 1 | 9.520 | 0.400 | 11.600 | 3.970 | 4.400 | - | 2.500 | NA | W - Screw | |
| DCMW11T304E WR | DCMW3.531E WR | 1 | 9.520 | 0.400 | 11.600 | 3.970 | 4.400 | - | 2.500 | NA | W - Screw | |
| DCMW11T308- | DCMW3.532- | 1 | 9.520 | 0.800 | 11.600 | 3.970 | 4.400 | - | 4.000 | NA | W - Screw | |
| DCMW11T308E | DCMW3.532E | 1 | 9.520 | 0.800 | 11.600 | 3.970 | 4.400 | - | 2.500 | NA | W - Screw | |
| DCMW11T308E WR | DCMW3.532E WR | 1 | 9.520 | 0.800 | 11.600 | 3.970 | 4.400 | - | 2.500 | NA | W - Screw | |
| DCMW150404- | DCMW531- | 1 | 12.700 | 0.400 | 15.500 | 4.760 | 6.500 | - | 4.000 | NA | W - Screw | |
| DCMW150408- | DCMW532- | 1 | 12.700 | 0.800 | 15.500 | 4.760 | 6.500 | - | 4.000 | NA | W - Screw |
