Series: RC** - IT.TE.DI. PCD ISO

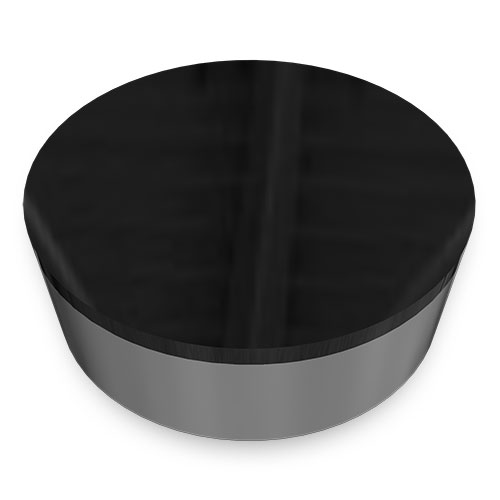

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° Clearance Round PCD Inserts
ANSI Number |
ISO Number |
IC Inscribed Circle Dia. |
S Thickness |
D1 Fixing Hole Dia. |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|
| RCMN090300H | RCMN320H | 9.520 | 3.180 | 4.400 | N - Top Clamp Only | |
| RCMN120300H | RCMN420H | 12.700 | 3.180 | 5.500 | N - Top Clamp Only | |
| RCMN120400H | RCMN430H | 12.700 | 4.760 | 5.500 | N - Top Clamp Only | |
| RCMW0602M0H | RCMW220H | 6.000 | 2.380 | 2.800 | W - Screw | |
| RCMW0803M0H | RCMW2.520H | 8.000 | 3.180 | 3.400 | W - Screw | |
| RCMW1003M0H | RCMW3.520H | 10.000 | 3.180 | 4.400 | W - Screw |
