Series: SC** - IT.TE.DI. PCD ISO

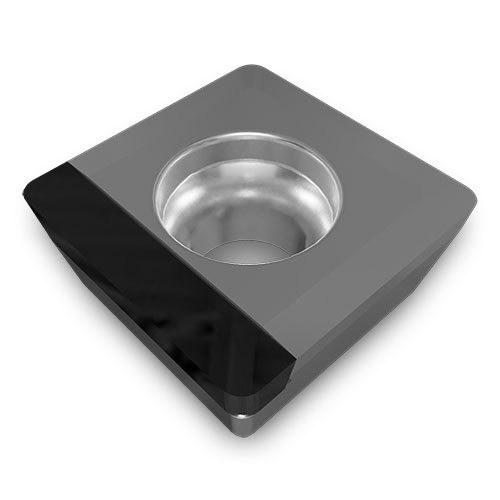

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° Clearance Square PCD Inserts
ISO Number |
ANSI Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
ap DOC Max. |
IH Insert Hand |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| SCGW060202R | SCGW 220.5R | 1 | 6.350 | 0.200 | 6.350 | 2.380 | 2.800 | 6.350 | Right | W - Screw | |
| SCGW060204R | SCGW 221R | 1 | 6.350 | 0.400 | 6.350 | 2.380 | 2.800 | 6.350 | Right | W - Screw | |
| SCGW09T302R | SCGW 330.5R | 1 | 6.350 | 0.200 | 9.520 | 3.970 | 4.400 | 9.520 | Right | W - Screw | |
| SCGW09T304R | SCGW 331R | 1 | 9.520 | 0.400 | 9.520 | 3.970 | 4.400 | 9.520 | Right | W - Screw | |
| SCGW09T308R | SCGW 332R | 1 | 9.520 | 0.800 | 9.520 | 3.970 | 4.400 | 9.520 | Right | W - Screw | |
| SCGW120404R | SCGW 431R | 1 | 12.700 | 0.400 | 12.700 | 4.760 | 5.500 | 12.700 | Right | W - Screw | |
| SCGW120408R | SCGW 432R | 1 | 12.700 | 0.800 | 12.700 | 4.760 | 5.500 | 12.700 | Right | W - Screw | |
| SCMW060202- | SCMW 220.5- | 1 | 6.350 | 0.200 | 6.350 | 2.380 | 2.800 | 3.000 | Neutral | W - Screw | |
| SCMW060204- | SCMW 221- | 1 | 6.350 | 0.400 | 6.350 | 2.380 | 2.800 | 3.000 | Neutral | W - Screw | |
| SCMW090302- | SCMW 320.5- | 1 | 9.520 | 0.200 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | W - Screw | |
| SCMW090304- | SCMW 321- | 1 | 9.520 | 0.400 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | W - Screw | |
| SCMW090308- | SCMW 322- | 1 | 9.520 | 0.800 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | W - Screw | |
| SCMW09T302- | SCMW 330.5- | 1 | 9.520 | 0.200 | 9.520 | 3.970 | 4.400 | 4.000 | Neutral | W - Screw | |
| SCMW09T302E | SCMW 330.5E | 1 | 9.520 | 0.200 | 9.520 | 3.970 | 4.400 | 2.500 | Neutral | W - Screw | |
| SCMW09T304- | SCMW 331- | 1 | 9.520 | 0.400 | 9.520 | 3.970 | 4.400 | 4.000 | Neutral | W - Screw | |
| SCMW09T304E | SCMW 331E | 1 | 9.520 | 0.400 | 9.520 | 3.970 | 4.400 | 2.500 | Neutral | W - Screw | |
| SCMW09T308- | SCMW 332- | 1 | 9.520 | 0.800 | 9.520 | 3.970 | 4.400 | 4.000 | Neutral | W - Screw | |
| SCMW09T308E | SCMW 332E | 1 | 9.520 | 0.800 | 9.520 | 3.970 | 4.400 | 2.500 | Neutral | W - Screw | |
| SCMW120404- | SCMW 431- | 1 | 12.700 | 0.400 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | W - Screw | |
| SCMW120404E | SCMW 431E | 1 | 12.700 | 0.400 | 12.700 | 4.760 | 5.500 | 2.500 | Neutral | W - Screw | |
| SCMW120408- | SCMW 432- | 1 | 12.700 | 0.800 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | W - Screw | |
| SCMW120408E | SCMW 432E | 1 | 12.700 | 0.800 | 12.700 | 4.760 | 5.500 | 2.500 | Neutral | W - Screw | |
| SCMW120412- | SCMW 433- | 1 | 12.700 | 1.500 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | W - Screw | |
| SCMW120412E | SCMW 433E | 1 | 12.700 | 1.200 | 12.700 | 4.760 | 5.500 | 2.500 | Neutral | W - Screw |
