Series: SP** - IT.TE.DI. PCD ISO

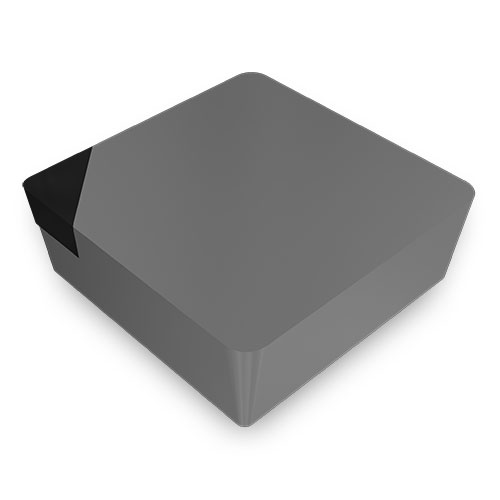

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 11° Clearance Square PCD Inserts
ISO Number |
ANSI Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
ap DOC Max. |
IH Insert Hand |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPMW070302- | SPMW1.820.5- | 1 | 7.940 | 0.200 | 7.940 | 3.180 | 2.800 | 3.000 | Neutral | W - Screw | |
| SPMW070304- | SPMW1.821- | 1 | 7.940 | 0.400 | 7.940 | 3.180 | 2.800 | 3.000 | Neutral | W - Screw | |
| SPMW090302- | SPMW320.5- | 1 | 9.520 | 0.200 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | W - Screw | |
| SPMW090304- | SPMW321- | 1 | 9.520 | 0.400 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | W - Screw | |
| SPMW090308- | SPMW322- | 1 | 9.520 | 0.800 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | W - Screw | |
| SPMW09T302- | SPMW330.5- | 1 | 9.520 | 0.200 | 9.520 | 3.970 | 4.400 | 4.000 | Neutral | W - Screw | |
| SPMW09T304- | SPMW331- | 1 | 9.520 | 0.400 | 9.520 | 3.970 | 4.400 | 4.000 | Neutral | W - Screw | |
| SPMW09T308- | SPMW332- | 1 | 9.520 | 0.800 | 9.520 | 3.970 | 4.400 | 4.000 | Neutral | W - Screw | |
| SPMW120402- | SPMW430.5- | 1 | 12.700 | 0.200 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | W - Screw | |
| SPMW120404- | SPMW431- | 1 | 12.700 | 0.400 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | W - Screw | |
| SPMW120408- | SPMW432- | 1 | 12.700 | 0.800 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | W - Screw | |
| SPUN050202- | SPUN1.520.5- | 1 | 5.560 | 0.200 | 5.560 | 2.380 | 2.200 | 3.000 | Neutral | N - Top Clamp Only | |
| SPUN050204- | SPUN1.521- | 1 | 5.560 | 0.400 | 5.560 | 2.380 | 2.200 | 3.000 | Neutral | N - Top Clamp Only | |
| SPUN070202- | SPUN1.820.5- | 1 | 7.940 | 0.200 | 7.940 | 2.380 | 2.800 | 3.000 | Neutral | N - Top Clamp Only | |
| SPUN070204- | SPUN1.821- | 1 | 7.940 | 0.400 | 7.940 | 2.380 | 2.800 | 3.000 | Neutral | N - Top Clamp Only | |
| SPUN090302- | SPUN320.5- | 1 | 9.520 | 0.200 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | N - Top Clamp Only | |
| SPUN090304- | SPUN321- | 1 | 9.520 | 0.400 | 9.520 | 3.180 | 4.400 | 4.000 | Neutral | N - Top Clamp Only | |
| SPUN120304- | SPUN421- | 1 | 12.700 | 0.400 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | N - Top Clamp Only | |
| SPUN120304E | SPUN421E | 1 | 12.700 | 0.400 | 12.700 | 3.180 | 5.500 | 2.500 | Neutral | N - Top Clamp Only | |
| SPUN120308- | SPUN422- | 1 | 12.700 | 0.800 | 12.700 | 4.760 | 5.500 | 4.000 | Neutral | N - Top Clamp Only | |
| SPUN120308E | SPUN422E | 1 | 12.700 | 0.800 | 12.700 | 3.180 | 5.500 | 2.500 | Neutral | N - Top Clamp Only | |
| SPUN120404E | SPUN431E | 1 | 12.700 | 0.400 | 12.700 | 4.760 | 5.500 | 2.500 | Neutral | N - Top Clamp Only | |
| SPUN120408E | SPUN432E | 1 | 12.700 | 0.800 | 12.700 | 4.760 | 5.500 | 2.500 | Neutral | N - Top Clamp Only |
