Series: TC** - IT.TE.DI. PCD ISO

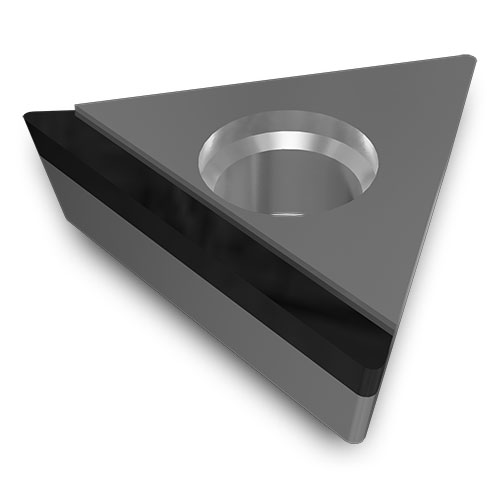

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° Clearance Triangle PCD Inserts
ISO Number |
ANSI Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
GAN Insert Rake Angle |
ap DOC Max. |
IH Insert Hand |
CBMD Chip Breaker Manufacturer's Designation |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCGT090202R | TCGT320.5R | 1 | 5.560 | 0.200 | 9.600 | 2.380 | 4.400 | 7 | 9.340 | Right | NA | T - Screw | |
| TCGT090204R | TCGT321R | 1 | 5.560 | 0.400 | 9.600 | 2.380 | 4.400 | 7 | 9.040 | Right | NA | T - Screw | |
| TCGT110202R | TCGT3.520.5R | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | 7 | 10.710 | Right | NA | T - Screw | |
| TCGT110204R | TCGT3.521R | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | 7 | 10.410 | Right | NA | T - Screw | |
| TCGT110208R | TCGT3.522R | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | 7 | 9.830 | Right | NA | T - Screw | |
| TCGT16T302R | TCGT430.5R | 1 | 9.520 | 0.200 | 16.500 | 3.970 | 5.500 | 10 | 16.200 | Right | NA | T - Screw | |
| TCGT16T304R | TCGT431R | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | 10 | 15.910 | Right | NA | T - Screw | |
| TCGT16T308R | TCGT432R | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | 10 | 15.330 | Right | NA | T - Screw | |
| TCMN060102H | TCMN210.5H | 1 | 3.970 | 0.200 | 6.900 | 1.590 | 2.800 | - | 6.900 | Neutral | Full-Top | N - Top Clamp Only | |
| TCMN060104H | TCMN211H | 1 | 3.970 | 0.400 | 6.900 | 1.590 | 2.800 | - | 6.900 | Neutral | Full-Top | N - Top Clamp Only | |
| TCMN060108H | TCMN212H | 1 | 3.970 | 0.800 | 6.900 | 1.590 | 2.800 | - | 6.900 | Neutral | Full-Top | N - Top Clamp Only | |
| TCMT090202- | TCMT320.5- | 1 | 5.560 | 0.200 | 9.600 | 2.380 | 4.400 | 7 | 3.000 | Neutral | NA | T - Screw | |
| TCMT090204- | TCMT321- | 1 | 5.560 | 0.400 | 9.600 | 2.380 | 4.400 | 7 | 3.000 | Neutral | NA | T - Screw | |
| TCMT090208- | TCMT322- | 1 | 6.350 | 0.800 | 9.600 | 2.380 | 4.400 | 7 | 3.000 | Neutral | NA | T - Screw | |
| TCMT110202- | TCMT3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | 7 | 4.000 | Neutral | NA | T - Screw | |
| TCMT110204- | TCMT3.521- | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | 7 | 4.000 | Neutral | NA | T - Screw | |
| TCMT110208- | TCMT3.522- | 1 | 9.520 | 0.800 | 11.000 | 2.380 | 4.400 | 7 | 4.000 | Neutral | NA | T - Screw | |
| TCMT16T304- | TCMT431- | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | 10 | 4.000 | Neutral | NA | T - Screw | |
| TCMT16T308- | TCMT432- | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | 10 | 4.000 | Neutral | NA | T - Screw | |
| TCMW06T102- | TCMW21.50.5- | 1 | 3.970 | 0.200 | 6.400 | 1.980 | 2.800 | - | 2.000 | Neutral | NA | W - Screw | |
| TCMW06T104- | TCMW21.51- | 1 | 3.970 | 0.400 | 6.400 | 1.980 | 2.800 | - | 2.000 | Neutral | NA | W - Screw | |
| TCMW090202- | TCMW320.5- | 1 | 5.560 | 0.200 | 9.600 | 2.380 | 4.400 | - | 3.000 | Neutral | NA | W - Screw | |
| TCMW090202E | TCMW320.5E | 1 | 5.560 | 0.200 | 9.600 | 2.380 | 4.400 | - | 2.500 | NA | NA | W - Screw | |
| TCMW090202R | TCMW320.5R | 1 | 5.560 | 0.200 | 9.600 | 2.380 | 4.400 | - | 9.340 | Right | NA | W - Screw | |
| TCMW090204- | TCMW321- | 1 | 5.560 | 0.400 | 9.600 | 2.380 | 4.400 | - | 3.000 | NA | NA | W - Screw | |
| TCMW090204E | TCMW321E | 1 | 5.560 | 0.400 | 9.600 | 2.380 | 4.400 | - | 2.500 | NA | NA | W - Screw | |
| TCMW090204R | TCMW321R | 1 | 5.560 | 0.400 | 9.600 | 2.380 | 4.400 | - | 9.040 | Right | NA | W - Screw | |
| TCMW090208- | TCMW322- | 1 | 5.560 | 0.800 | 9.600 | 2.380 | 4.400 | - | 3.000 | NA | NA | W - Screw | |
| TCMW110202- | TCMW3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | NA | W - Screw | |
| TCMW110202- FI | TCMW3.520.5- FI | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | FI - Finishing Chipbreaker | W - Screw | |
| TCMW110202- RO | TCMW3.520.5- RO | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | RO - Roughing Chipbreaker | W - Screw | |
| TCMW110202E | TCMW3.520.5E | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | NA | W - Screw | |
| TCMW110202R | TCMW3.520.5R | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 10.710 | Right | NA | W - Screw | |
| TCMW110204- | TCMW3.521- | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | NA | W - Screw | |
| TCMW110204- FI | TCMW3.521- FI | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | FI - Finishing Chipbreaker | W - Screw | |
| TCMW110204- RO | TCMW3.521- RO | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | RO - Roughing Chipbreaker | W - Screw | |
| TCMW110204E | TCMW3.521E | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | NA | W - Screw | |
| TCMW110204R | TCMW3.521R | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 10.410 | Right | NA | W - Screw | |
| TCMW110208- | TCMW3.522- | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | NA | W - Screw | |
| TCMW110208- FI | TCMW3.522- FI | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | FI - Finishing Chipbreaker | W - Screw | |
| TCMW110208- RO | TCMW3.522- RO | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | RO - Roughing Chipbreaker | W - Screw | |
| TCMW110208E | TCMW3.522E | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | NA | W - Screw | |
| TCMW110208R | TCMW3.522R | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 9.830 | Right | NA | W - Screw | |
| TCMW130304- | 1 | 7.940 | 0.400 | 13.700 | 3.180 | 4.400 | - | 4.000 | NA | NA | W - Screw | ||
| TCMW130304E | 1 | 7.940 | 0.400 | 13.700 | 3.180 | 4.400 | - | 2.500 | NA | NA | W - Screw | ||
| TCMW130308- | 1 | 7.940 | 0.800 | 13.700 | 3.180 | 4.400 | - | 4.000 | NA | NA | W - Screw | ||
| TCMW130308E | 1 | 7.940 | 0.800 | 13.700 | 3.180 | 4.400 | - | 2.500 | NA | NA | W - Screw | ||
| TCMW16T302 | TCMW430.5 | 1 | 9.520 | 0.200 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | NA | W - Screw | |
| TCMW16T302E | TCMW430.5E | 1 | 9.520 | 0.200 | 16.500 | 3.970 | 5.500 | - | 2.500 | NA | NA | W - Screw | |
| TCMW16T302R | TCMW430.5R | 1 | 9.520 | 0.200 | 16.500 | 3.970 | 5.500 | - | 16.200 | Right | NA | W - Screw | |
| TCMW16T304- | TCMW431- | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | NA | W - Screw | |
| TCMW16T304- FI | TCMW431- FI | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | FI - Finishing Chipbreaker | W - Screw | |
| TCMW16T304- RO | TCMW431- RO | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | RO - Roughing Chipbreaker | W - Screw | |
| TCMW16T304E | TCMW431E | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | - | 2.500 | NA | NA | W - Screw | |
| TCMW16T304R | TCMW431R | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | - | 15.910 | Right | NA | W - Screw | |
| TCMW16T308- | TCMW432- | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | NA | W - Screw | |
| TCMW16T308- FI | TCMW432- FI | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | FI - Finishing Chipbreaker | W - Screw | |
| TCMW16T308- RO | TCMW432- RO | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | RO - Roughing Chipbreaker | W - Screw | |
| TCMW16T308E | TCMW432E | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | - | 2.500 | NA | NA | W - Screw | |
| TCMW16T308R | TCMW432R | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | - | 15.330 | Right | NA | W - Screw | |
| TCMW16T312- | TCMW433- | 1 | 9.520 | 1.200 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | NA | W - Screw | |
| TCMW16T312E | TCMW433E | 1 | 9.520 | 1.200 | 16.500 | 3.970 | 5.500 | - | 2.500 | NA | NA | W - Screw |
