Series: TP** - IT.TE.DI. PCD ISO

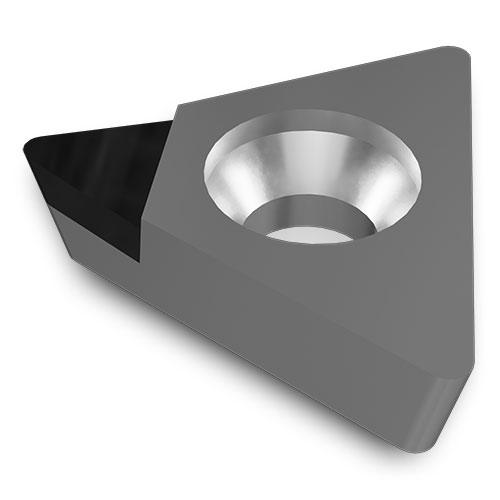

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 11° Clearance Triangle PCD Inserts

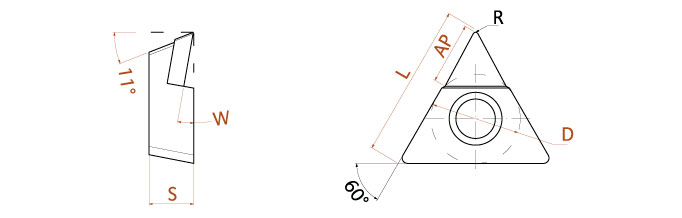

ISO Number |
ANSI Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
GAN Insert Rake Angle |
ap DOC Max. |
IH Insert Hand |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TPMT110302- | TPMT3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 3.180 | 4.400 | 10 | 4.000 | NA | T - Screw | |
| TPMT110304- | TPMT3.521- | 1 | 6.350 | 0.400 | 11.000 | 3.180 | 4.400 | 10 | 4.000 | NA | T - Screw | |
| TPMT110308- | TPMT3.522- | 1 | 6.350 | 0.800 | 11.000 | 3.180 | 4.400 | 10 | 4.000 | NA | T - Screw | |
| TPMT160404- | TPMT431- | 1 | 9.520 | 0.400 | 16.500 | 4.760 | 5.500 | 10 | 4.000 | NA | T - Screw | |
| TPMT160408- | TPMT432- | 1 | 9.520 | 0.800 | 16.500 | 4.760 | 5.500 | 10 | 4.000 | NA | T - Screw | |
| TPMT16T304- | TPMT431- | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | 10 | 4.000 | NA | T - Screw | |
| TPMT16T308- | TPMT432- | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | 10 | 4.000 | NA | T - Screw | |
| TPMW110202- | TPMW3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | W - Screw | |
| TPMW110202E | TPMW3.520.5E | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | W - Screw | |
| TPMW110204- | TPMW3.521- | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | W - Screw | |
| TPMW110204E | TPMW3.521E | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | W - Screw | |
| TPMW110208- | TPMW3.522- | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | W - Screw | |
| TPMW110302- | TPMW3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 3.180 | 4.400 | - | 4.000 | NA | W - Screw | |
| TPMW110302E | TPMW3.520.5E | 1 | 6.350 | 0.200 | 11.000 | 3.180 | 4.400 | - | 2.500 | NA | W - Screw | |
| TPMW110304- | TPMW3.521- | 1 | 6.350 | 0.400 | 11.000 | 3.180 | 4.400 | - | 4.000 | NA | W - Screw | |
| TPMW110304E | TPMW3.521E | 1 | 6.350 | 0.400 | 11.000 | 3.180 | 4.400 | - | 2.500 | NA | W - Screw | |
| TPMW110308- | TPMW3.522- | 1 | 6.350 | 0.800 | 11.000 | 3.180 | 4.400 | - | 4.000 | NA | W - Screw | |
| TPMW160404- | TPMW431- | 1 | 9.520 | 0.400 | 16.500 | 4.760 | 5.500 | - | 4.000 | NA | W - Screw | |
| TPMW160408- | TPMW432- | 1 | 9.520 | 0.800 | 16.500 | 4.760 | 5.500 | - | 4.000 | NA | W - Screw | |
| TPMW16T304- | TPMW431- | 1 | 9.520 | 0.400 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | W - Screw | |
| TPMW16T308- | TPMW432- | 1 | 9.520 | 0.800 | 16.500 | 3.970 | 5.500 | - | 4.000 | NA | W - Screw | |
| TPUN110202- | TPUN3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN110202E | TPUN3.520.5E | 1 | 6.350 | 0.200 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN110204- | TPUN3.521- | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN110204E | TPUN3.521E | 1 | 6.350 | 0.400 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN110208- | TPUN3.522- | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN110208E | TPUN3.522E | 1 | 6.350 | 0.800 | 11.000 | 2.380 | 4.400 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN110302- | TPUN3.520.5- | 1 | 6.350 | 0.200 | 11.000 | 3.180 | 4.400 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN110302E | TPUN3.520.5E | 1 | 6.350 | 0.200 | 11.000 | 3.180 | 4.400 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN110304- | TPUN3.521- | 1 | 6.350 | 0.400 | 11.000 | 3.180 | 4.400 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN110304E | TPUN3.521E | 1 | 6.350 | 0.400 | 11.000 | 3.180 | 4.400 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN110308- | TPUN3.522- | 1 | 6.350 | 0.800 | 11.000 | 3.180 | 4.400 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN110308E | TPUN3.522E | 1 | 6.350 | 0.800 | 11.000 | 3.180 | 4.400 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN160304- | TPUN421- | 1 | 9.520 | 0.400 | 16.500 | 3.180 | 5.500 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN160304E | TPUN421E | 1 | 9.520 | 0.400 | 16.500 | 3.180 | 5.500 | - | 2.500 | NA | N - Top Clamp Only | |
| TPUN160308- | TPUN422- | 1 | 9.520 | 0.800 | 16.500 | 3.180 | 5.500 | - | 4.000 | NA | N - Top Clamp Only | |
| TPUN160308E | TPUN422E | 1 | 9.520 | 0.800 | 16.500 | 3.180 | 5.500 | - | 2.500 | NA | N - Top Clamp Only |
