Series: VC** - IT.TE.DI. PCD ISO

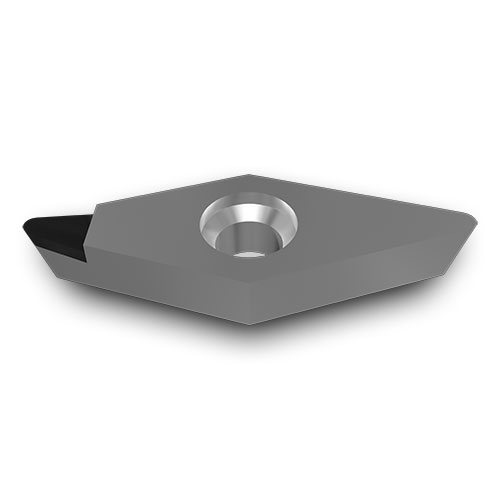

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° Clearance 35° Rhombic PCD Inserts
ISO Number |
ANSI Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness (to cutting edge) |
D1 Screw Dia. |
GAN Insert Rake Angle |
ap DOC Max. |
IH Insert Hand |
CBMD Chip Breaker Manufacturer's Designation |
IFS Insert Mounting Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCMT070202- | VCMT1.820.5- | 1 | 3.970 | 0.200 | 6.920 | 2.380 | 3.970 | 7 | 3.700 | Neutral | NA | T - Screw | |
| VCMT070204- | VCMT1.821- | 1 | 3.970 | 0.400 | 6.920 | 2.380 | 3.970 | 7 | 3.700 | Neutral | NA | T - Screw | |
| VCMT110302- | VCMT3.520.5- | 1 | 6.350 | 0.200 | 11.100 | 3.180 | 6.350 | 7 | 3.700 | Neutral | NA | T - Screw | |
| VCMT110304- | VCMT3.521- | 1 | 6.350 | 0.400 | 11.100 | 3.180 | 6.350 | 7 | 3.700 | Neutral | NA | T - Screw | |
| VCMT130302- | 1 | 6.350 | 0.200 | 13.100 | 3.180 | 6.350 | 7 | 4.500 | Neutral | NA | T - Screw | ||
| VCMT130304- | 1 | 6.350 | 0.400 | 13.100 | 3.180 | 6.350 | 7 | 4.500 | Neutral | NA | T - Screw | ||
| VCMT160402- | VCMT430.5- | 1 | 9.520 | 0.200 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | NA | T - Screw | |
| VCMT160404- | VCMT431- | 1 | 9.520 | 0.400 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | NA | T - Screw | |
| VCMT160408- | VCMT432- | 1 | 9.520 | 0.800 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | NA | T - Screw | |
| VCMT160412- | VCMT433- | 1 | 9.520 | 1.200 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | NA | T - Screw | |
| VCMW070202- | VCMW1.820.5- | 1 | 3.970 | 0.200 | 6.920 | 2.380 | 3.970 | - | 3.700 | Neutral | NA | W - Screw | |
| VCMW070204- | VCMW1.821- | 1 | 3.970 | 0.400 | 6.920 | 2.380 | 3.970 | - | 3.700 | Neutral | NA | W - Screw | |
| VCMW070208- | VCMW1.822- | 1 | 3.970 | 0.800 | 6.920 | 2.380 | 3.970 | - | 3.700 | Neutral | NA | W - Screw | |
| VCMW110302- | VCMW3.520.5- | 1 | 6.350 | 0.200 | 11.100 | 3.180 | 6.350 | - | 3.700 | Neutral | NA | W - Screw | |
| VCMW110304- | VCMW3.521- | 1 | 6.350 | 0.400 | 11.100 | 3.180 | 6.350 | - | 3.700 | Neutral | NA | W - Screw | |
| VCMW110304- FI | VCMW3.521- FI | 1 | 6.350 | 0.400 | 11.100 | 3.180 | 6.350 | 7 | 3.700 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW110304- RO | VCMW3.521- RO | 1 | 6.350 | 0.400 | 11.100 | 3.180 | 6.350 | 7 | 3.700 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW110304E | VCMW3.521E | 1 | 6.350 | 0.400 | 11.100 | 3.180 | 6.350 | - | 3.000 | Neutral | NA | W - Screw | |
| VCMW110308- | VCMW3.522- | 1 | 6.350 | 0.800 | 11.100 | 3.180 | 6.350 | - | 3.700 | Neutral | NA | W - Screw | |
| VCMW110308- FI | VCMW3.522- FI | 1 | 7.940 | 0.200 | 13.100 | 3.180 | 7.940 | 7 | 4.500 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW110308- RO | VCMW3.522- RO | 1 | 7.940 | 0.200 | 13.100 | 3.180 | 7.940 | 7 | 4.500 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW110320- FI | VCMW3.525- FI | 1 | 6.350 | 0.200 | 11.100 | 3.180 | 6.350 | 7 | 3.700 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW110320- RO | VCMW3.525- RO | 1 | 6.350 | 0.200 | 11.100 | 3.180 | 6.350 | 7 | 3.700 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW110320E | VCMW3.525E | 1 | 6.350 | 0.200 | 11.100 | 3.180 | 6.350 | - | 3.000 | Neutral | NA | W - Screw | |
| VCMW130302- | 1 | 7.940 | 0.200 | 13.100 | 3.180 | 7.940 | - | 3.700 | Neutral | NA | W - Screw | ||
| VCMW130304- | 1 | 7.940 | 0.400 | 13.100 | 3.180 | 7.940 | - | 3.700 | Neutral | NA | W - Screw | ||
| VCMW160402- | VCMW430.5- | 1 | 9.520 | 0.200 | 16.600 | 4.760 | 9.520 | - | 4.500 | Neutral | NA | W - Screw | |
| VCMW160402- FI | VCMW430.5- FI | 1 | 9.520 | 0.200 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW160402- RO | VCMW430.5- RO | 1 | 9.520 | 0.200 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW160402E | VCMW430.5E | 1 | 9.520 | 0.200 | 16.600 | 4.760 | 9.520 | - | 3.000 | Neutral | NA | W - Screw | |
| VCMW160404- | VCMW431- | 1 | 9.520 | 0.400 | 16.600 | 4.760 | 9.520 | - | 4.500 | Neutral | NA | W - Screw | |
| VCMW160404- FI | VCMW431- FI | 1 | 9.520 | 0.400 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW160404- RO | VCMW431- RO | 1 | 9.520 | 0.400 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW160404E | VCMW431E | 1 | 9.520 | 0.400 | 16.600 | 4.760 | 9.520 | - | 3.000 | Neutral | NA | W - Screw | |
| VCMW160408- | VCMW432- | 1 | 9.520 | 0.800 | 16.600 | 4.760 | 9.520 | - | 4.500 | Neutral | NA | W - Screw | |
| VCMW160408- FI | VCMW432- FI | 1 | 9.520 | 0.800 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW160408- RO | VCMW432- RO | 1 | 9.520 | 0.800 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW160408E | VCMW432E | 1 | 9.520 | 0.800 | 16.600 | 4.760 | 9.520 | - | 3.000 | Neutral | NA | W - Screw | |
| VCMW160412- | VCMW433- | 1 | 9.520 | 1.200 | 16.600 | 4.760 | 9.520 | - | 4.500 | Neutral | NA | W - Screw | |
| VCMW160412- FI | VCMW433- FI | 1 | 9.520 | 1.200 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | FI - Finishing Chipbreaker | W - Screw | |
| VCMW160412- RO | VCMW433- RO | 1 | 9.520 | 1.200 | 16.600 | 4.760 | 9.520 | 10 | 4.500 | Neutral | RO - Roughing Chipbreaker | W - Screw | |
| VCMW160412E | VCMW433E | 1 | 9.520 | 1.200 | 16.600 | 4.760 | 9.520 | - | 3.000 | Neutral | NA | W - Screw |
