3-Edged Indexable Deep Hole Expansion Adds .313"–.354" to the Range of Diameters
Product Line Expansion☆ = NEW
Features and Benefits

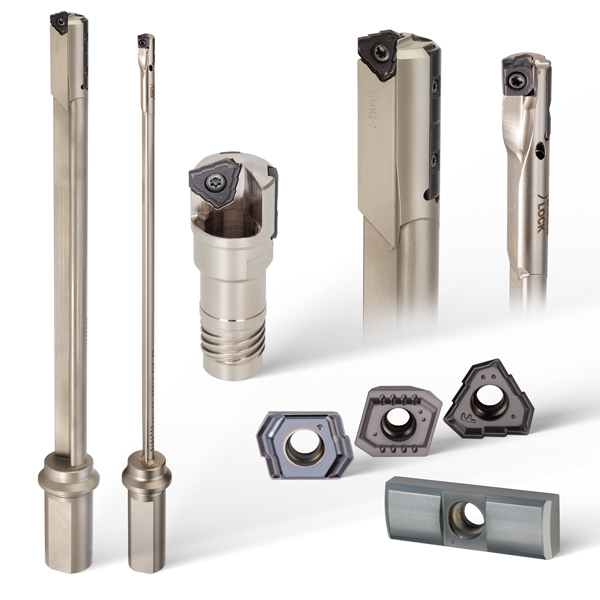

- TPHT insert has 3 full cutting edges. LPHT insert (for smaller diameter tools) has 2 full cutting edges. ZPHT insert has a single cutting edge. All inserts feature chip splitters. TPHT inserts feature two unique chip breaker designs.
- Diameter range - BTA Heads:
.551" (14 mm) - 1.575" (40 mm)
Diameter range - MC and GD Drills:

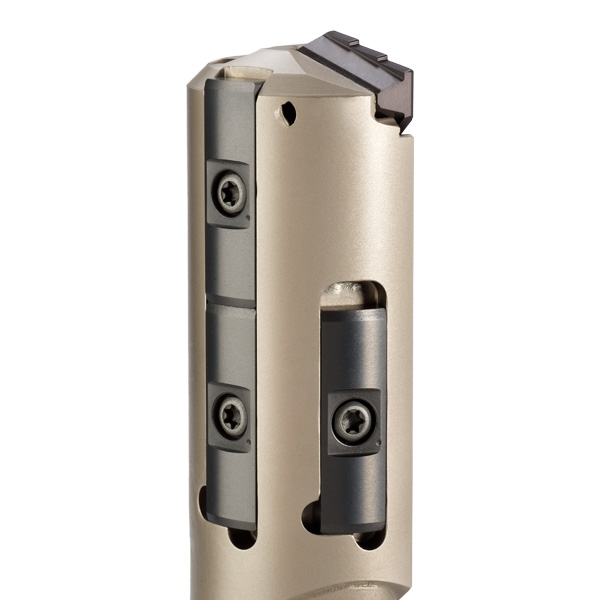

.313" (7.94 mm) – 1.260" (32 mm)☆ - Excellent diameter tolerance (IT10) and surface finish due to guide pad design
- 10xD, 15xD & 25xD conventional style drills for lathes and machining centers - Stocked Product!
- More than double the high feed rate compared to conventional style gundrills, and no regrinding!
- Inserts and Guide Pads sold separately
Product Ranges & Details
Drilling Range
BTA:
.551" (14 mm) – 1.575" (40 mm)
MC, GD:
.313" (7.94 mm) – 1.260" (32 mm) ☆
Thread Types
STS Outer four start thread
STS Inner single start thread
DTS Outer four start thread
Insert Grades
IN2005, IN2055
Chipbreaker
DT - Standard Positive
ML – Low Feed/Power Applications
Guide Pads*
IN2040 - Solid carbide pad - High wear
IN2005 - Solid carbide pad - High toughness
IN2030 – Solid carbide pad – higher toughness
*Guide Pads Must be Purchased Seperately
