Grooving Tools with CoolBurst High-Pressure Coolant
Product Line Expansion☆ = NEW
Features and Benefits
- Excellent chip breaking and tool life in difficult-to-cut materials such as titanium, inconel and other heat-resistant alloys
- Reduced cycle time and higher productivity due to increased cutting speed capability
- Longer tool life even under normal coolant pressure
- Capable of up to 4,900 PSI coolant pressure
- Coolant hoses and fittings also available

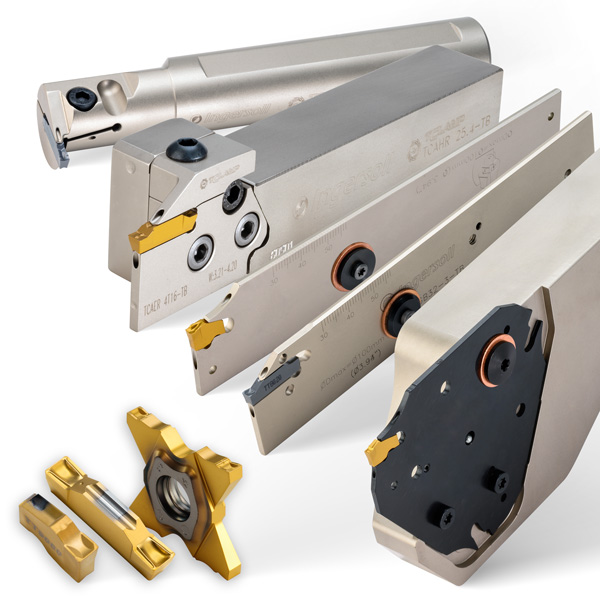

Multiple Unique Systems:
- Traditional TClamp Ultra+ holders
- TClamp Ultra+ holders with side clamping for Swiss-type machines
- TClamp Modular shanks and cartridges, a flexible system that allows for multiple different cartridges using the same shank
- GoldFlex holders, featuring 4-cutting-edge inserts
- CutSFeed holders, for best performance in parting applications
- FaceFlex holders, for unique double-ended face grooving inserts
- FlexTurn shanks and heads, modular system for Swiss-type machines
Product Ranges & Details
Integral Shanks
TClamp Ultra+ OD Traditional: .750–1.000"
TClamp Ultra+ OD Swiss: .375–.625"
TClamp Ultra+ ID Traditional: .750–1.250" ☆
CutSFeed: 1.000"
GoldFlex20: .500–.750"
GoldFlex27: .500–1.000"
GoldFlex34: .750–1.000"
GoldFlexEW: .750–1.000"
FaceFlex (perpendicular): 1.000"
FaceFlex (parallel): 1.000"
Modular
FlexTurn Shanks: .500–.625", 12–16 mm
FlexTurn Heads: TClamp Ultra+ 2–3 mm, GoldFlex20
TClamp Modular Shanks: .750–1.250"
TClamp Modular Cartridges: TClamp Ultra+ 1.4–8 mm, GoldFlex20, GoldFlex27, GoldFlex34
Block/Blade
Traditional Block: .750–1.250"
Traditional Blades: CutSFeed 2–3 mm, TClamp Ultra+ 2–6 mm ☆
WinCut Triangular Block: .750–1.250"
WinCut Triangular Blade: CutSFeed 2–3 mm, TClamp Ultra+ 2–3 mm
