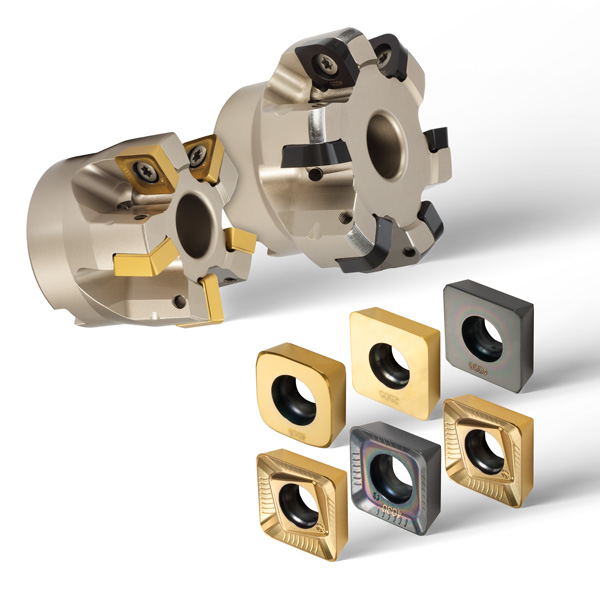

90º Shoulder Face Mill, Multiple-Quad Insert Geometry Options

Product Ranges & Details

Diameter
2.00" - 4.00"

Depth of Cut
.45"

Cutter Series
5J5P

Insert Styles
SDES13, SDMS13,
ZDES13, ZDMS13

Insert Grades
IN2530, IN2535,
IN4005, IN4015,
IN4030, IN4035

Materials
Iron, Steel, Stainless Steel, Hi-Temp Alloys

Features and Benefits

  • 90° shoulder milling geometry with 4 indexes
  • .45" depth of cut availability
  • Corner radius options R.031", .047", .062", .093", .125", &.250"
  • Rake face insert geometries for hi-shear and hi-efficiency
  • Flat-top insert geometries for edge strength
  • Chip splitter geometry available
  • Utilizes same insert pocket as GOLD•QUAD long edge, plunge and hi-feed lines
  • Coolant through the tool

Geometries (L-to-R)

  • Rake Face w/Keen Edge
  • Flat Face w/Keen Edge
  • Flat Face w/Landed Edge
  • Rake/Keen w/Chip Splitters
  • Flat/Keen w/Chip Splitters
  • Flat/Landed w/Chip Splitters

Radii (L-to-R)

  • R.031"
  • R.047"
  • R.062"
  • R.093"
  • R.125"
  • R.250"
