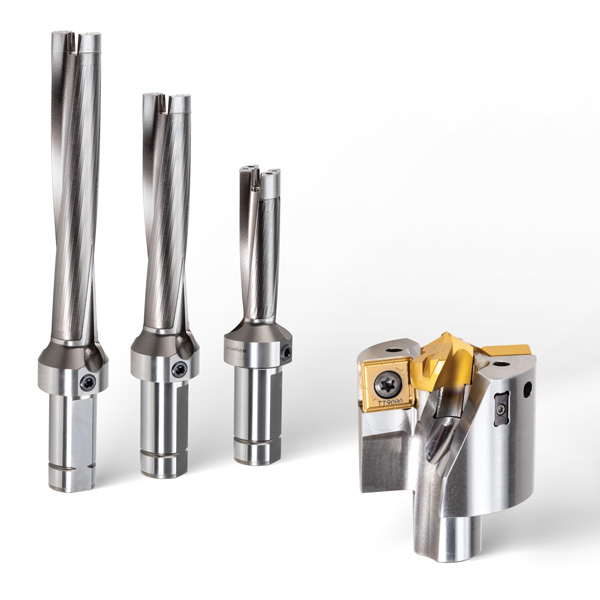

Unique Modular Drilling System in a Wide Range of Diameters and Depths

Features and Benefits

• Heads & Bodies:
• Inch and Metric specific diameters available with modular head
• One head can be used for various drilling depths (3, 5 & 7xD)
• Increased feed rates achieved with 2-effective pocket design
• Dedicated guide pads greatly improve stability during machining
• Extended length, universal flat shank includes “cut-off” notch for stationary applications
• Inch bodies include side coolant port for lathe applications
• Coolant thru for improved chip evacuation
• Heads include 4 coolant holes directed at the cutting edge, improving chip evacuation and extending tool life
• Modular design reduces inventory
• Tips/Inserts:
• SPGX-WG (wiper) insert allows for phenomenal surface finishes
• TPC-C self-centering geometry allows for improved straightness
• TPC-C & SPGX (wiper) grade IN2505 (PVD TiAlN/TiN) for extended tool life and performance
