Introducing a new milling grade with exceptional wear resistance and outstanding tool life in aluminum machining
Features and Benefits

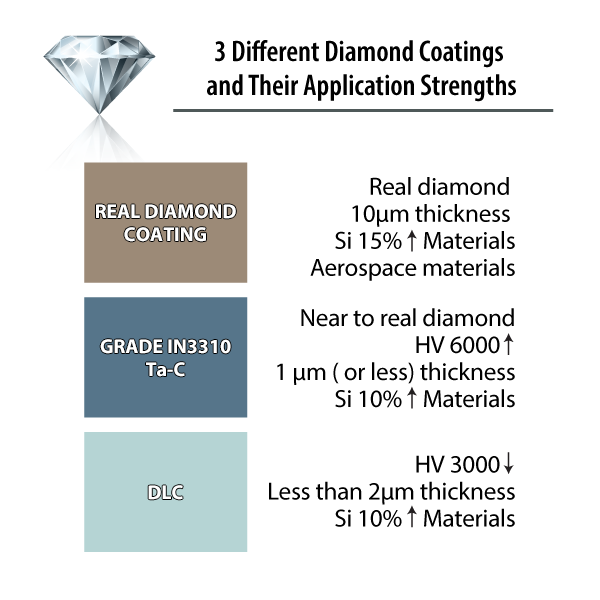

- Grade IN3310 is a hard fine grain substrate coated with Ta-C, which is a DLC (Diamond Like Carbon) with an iridescent color.
- Coating thickness under 0.5 µm maintains a sharp cutting edge after coating.
- Low friction coefficient minimizes built-up edge and ensures smooth chip evacuation.
- Coating hardness of HV 5000 or higher provides excellent wear resistance.
- Exceptional high-temperature oxidation resistance delivers superior tool life.
- Solution for Non-ferrous Milling:
• Extended tool life vs. uncoated carbide
• Higher speeds vs. uncoated carbide
• Price-Per-Edge-Economy vs. single index PCD - In aluminum machining tests, IN3310 averaged increases in tool life of 200% compared to competitors, and on an individual case basis, tool life increased at least 30%.
- Note that IN3310 (Ta-C) is best suited for low silicon aluminum (6061, 7075, etc)
Product Ranges & Details
Insert Grade
IN3310

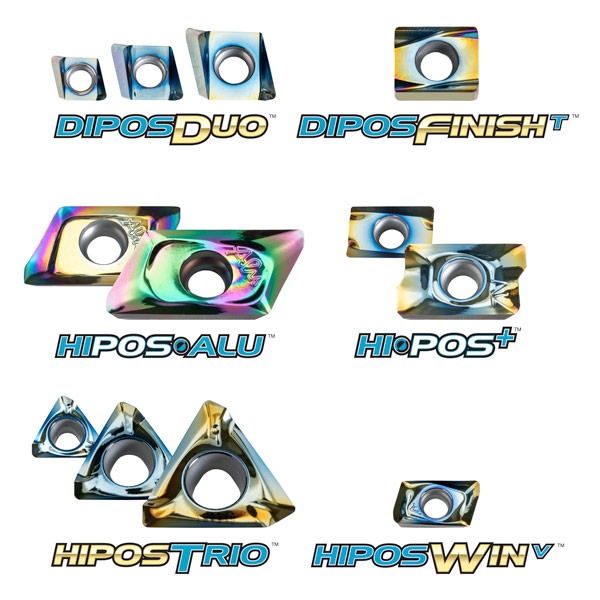

Product Lines
DiPosDuo
DiPosFinishT
HiPosAlu
HiPos+
HiPosTrio
HiPosWinV
Insert Types
Roughing, Finishin, Hi-Feed, Multi-Purpose, Integrated Face Wiper
Materials
Low Silicon Aluminum (N10-N20)
