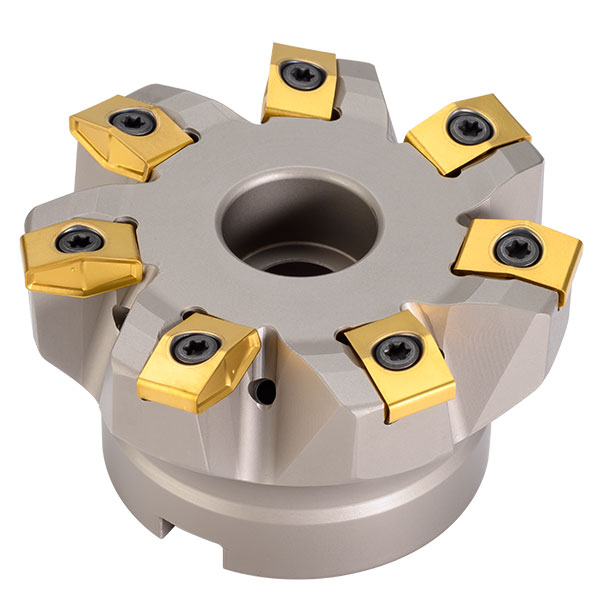

Hi-Feed Face Mill Family with Strong Tangential Inserts and Reliable Dovetailed Insert Seating


Features and Benefits

  • Unique diamond shaped inserts provide the highest ramping feed-rates at the steepest ramping angles
  • Thick tangential inserts give maximum reinforcement to the cutting edge and cutter longevity
  • Large insert seating areas are dovetailed to stabilize and support the insert under the most aggresive conditions
  • Inserts offered in noth pressed and ground profiles for economical performace across all material types

Product Ranges & Details

Cutter Series:
8G5A
8G6A

Diameters:
2.000-4.000"

Insert Series:
LGM324R001-ML
LGX324R001-M

Materials:
Steel, Stainless Steel, Hi-Temps, Titanium

Grades:
IN4005 / IN2505 / IN4030
IN2530 / IN4035 / IN2535
