Home > Gold-Quad > SDXS1305_ > 2915847 SDXS130515N-MR1 J IN2505

EDP: 2915847
Part: SDXS130515N-MR1 J IN2505
Series: SDXS1305_

Application

Flat Top - Keen Edge

RE Corner Radius

0.060

IC Inscribed Circle Dia.

13 mm

S Thickness

0.200

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 70

Product Series Features:

Gold Quad Insert
GoldSfeed MPR High Feed Inserts

Notes:

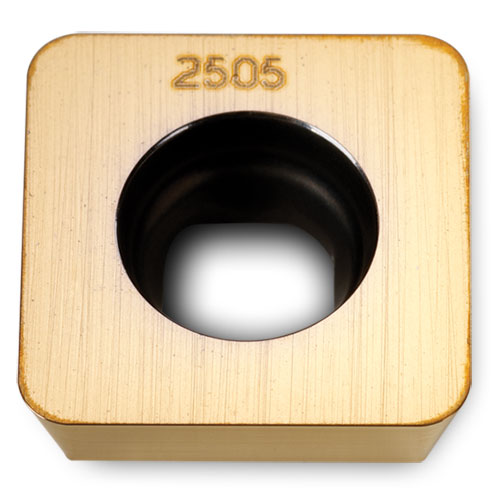

*Images are a representation of the product series and therefore may not be an exact representation of the specific item

Application	Flat Top - Keen Edge
RE - Corner Radius	0.060
IC - Inscribed Circle Dia.	13 mm
S - Thickness	0.200
NOI - Number of Indexes	4
IH - Insert Hand	Neutral

Related Tools

Photo of GoldSFeed

GoldSFeed
15M1P - Hi-Feed End Mill

Ø1.250"
Cylindrical Shank
13 mm insert with 4 indexes
.088" Max. depth of cut

Photo of Gold-Quad

Gold-Quad
25J3P - 90° End Mill

Ø2.000"
50 Taper Connection
13 mm Insert with 4 indexes
Insert corners: .031", .062", .125" R
All Eff. / RH Helix
Ideal for roughing SS & Hi-Temps

Photo of Gold-Quad

Gold-Quad
25J3P - 90° End Mill

Ø2.000"
Weldon Shank
13 mm Insert with 4 indexes
Insert Corner: .031", .062", & .125" R
All Eff. / RH Helix
Ideal for roughing SS & Hi-Temps

Photo of Gold-Quad

Gold-Quad
25J3P - 90° Shell Mill

Ø2.000-4.000"
Bore & Keyway
All Eff. / RH Helix
13 mm Insert with 4 indexes
Ideal for roughing SS & Hi-Temps
Insert corners: .031", .062", .125" R

Photo of Gold-Quad

Gold-Quad
25J3P_R - 90° End Mill for .25"R

Ø2.000"
50 Taper Connection
13 mm Insert
Side Insert with 4 indexes
End Insert Corner: .250" R with 2 indexes
Ideal for roughing SS & Hi-Temps
All Eff. / RH Helix

Photo of Gold-Quad

Gold-Quad
25J3P_R - 90° End Mill for .25"R

Ø2.000"
Weldon Shank
13 mm Insert
All Eff. / RH Helix
Ideal for roughing SS & Hi-Temps
Side Insert with 4 indexes
End Insert Corner: .250" R with 2 indexes

Photo of Gold-Quad

Gold-Quad
25J3P_R - 90° Shell Mill for .25"R

Ø2.000-4.000"
13 mm Insert
All Eff. / RH Helix
Ideal for roughing SS & Hi-Temps
Side Insert with 4 indexes
End insert corner: .250" R with 2 indexes

Photo of Gold-Quad

Gold-Quad
5J5P - 90° Face Mill

Ø2.000-4.000"
13 mm Insert with 4 indexes
.45" Depth of Cut
Finishes as good as 40 Ra
Insert corners: .031, .047, .062, .093, .125"

Photo of Gold-Quad XXX

Gold-Quad XXX
5M5P, 5M6P - Mid-Feed Face Mill

Ø2.000-3.000”
13 mm IC insert with 4 indexes
.200" (5.08 mm) Max. depth of cut
30° Mid-feed rougher
Multiple insert styles for application flexibility
High material removal rates!
Extremely free cutting!
Excellent Performance & Economy!

Photo of Gold-Quad

Gold-Quad
QHU - Plunge Rough End Mill

Ø1.500"
TopOn Connection
13 mm Insert with 4 indexes
.45" Depth of cut
Insert corners: .031", .047", .062", .094", .125" R

Photo of Gold-Quad

Gold-Quad
QHU - Plunge Rough Mill

Ø1.500"
Cylindrical Shank
13 mm Insert with 4 indexes
Insert corners: .031", .047", .062", .094", .125" R
.45" Depth of cut

Photo of Gold-Quad

Gold-Quad
QHU - Plunge Rough Mill

Ø2.00-4.00"
.44" Depth of cut
13 mm Insert with 4 indexes
Insert corners: .031", .047", .062", .094", .125" R
