View STEP
View Image
Downloads
DXF
STEP

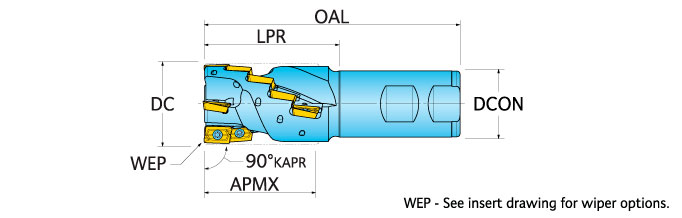

DC Cutting Dia.
1.000
APMX Depth of Cut Max.
1.300
LUX Usable Length Max.
1.70
LPR Protruding Length
1.75
OAL Overall Length
4.00
ZEFF Eff. Teeth Face
2
ZNF Face Insert Count
ZNP Peripheral Insert Count
4
NOF Flute Count
KAPR Cutting Edge Angle
90.0
DCON Shank Dia.
1.0000
CSP Coolant
No
FHH Flute Helix Hand
Right
Available : 1
