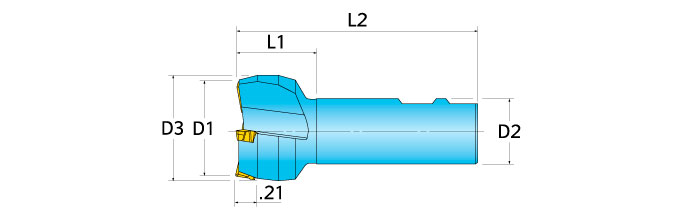

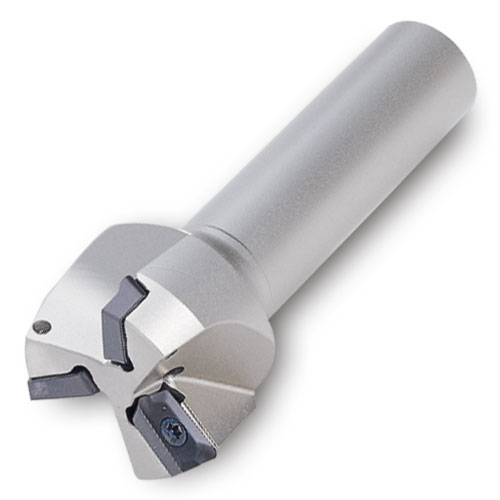

EDP: 3004515 Part: 12L1Q1284R01 Series: 12R1Q - 15° End Mill
View STEP
Available : 0
Product Series Features:
- 15° End Mill (Weldon)
- .21" Max. depth of cut
- 12 mm Insert with 2 indexes
- Insert corner: .018" R
Notes:
- **Note, OBSOLETE product series.
- Refer to the following for stocked alternatives:
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000460 | SM30-065-00 | SE02-79 | Screw, M3 x 0.5 × 6.5 mm, T9 Torx drive | n/a | n/a | n/a | ||
| 7009052 | DS-T09W | DS-0022 | T9 Wing Style Torx Driver | n/a | n/a | n/a | ||
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2920526 | DT-30-.25 | DT-30-.25 | Torque Adapter Unit preset to 30 in lb (3.4 N·m) for use with the multi-component Qwik Torque system | Optional Accessory item; Sold Separately | n/a | n/a | n/a |
