EDP: 3004688 Part: 12W7A0684R01 Series: 12W

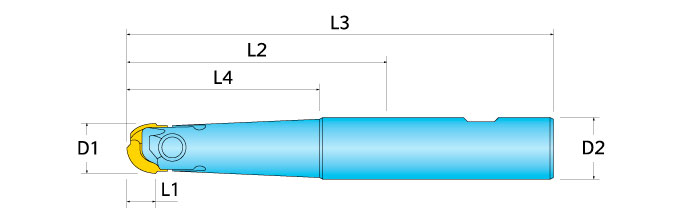

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 0
Product Series Features:
- Ø.500-.750" Ball nose end mill
- Max. depth of cut: Full radius
- Insert corners: .187" to .500"R
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7002616 | SF060-01 | SF03-12 | Screw, M6 × 1 × 13.6 mm, T20 Torx, Special Head, Torque 65-70 in lb | n/a | n/a | n/a | ||
| 7002618 | RR-03-02 | RR03-02 | Crescent retaining ring, For Ø6 mm shaft, .024" thick | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002090 | DS-T206B | BLD T20/S7 | T20 Torx Driver Blade, 90 mm OAL, 6 mm Hex | n/a | n/a |
