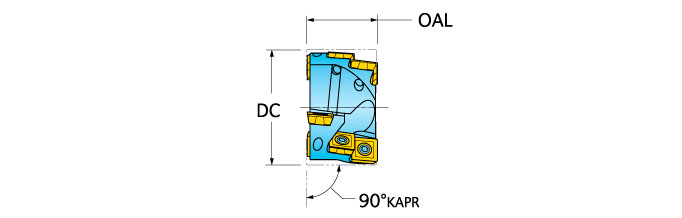

EDP: 3007152 Part: 23J4J2568R02 Series: 25J3J - 90° End Cap
View STEP
Available : 12
Product Series Features:
- Ø2.500" (End Cap)
- All Eff. / RH Helix
- 14 mm Insert with 4 indexes
- Insert corner: .031"
Notes:
- Total Number of Inserts = ZNF + ZNP.
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7002873 | SM50-127-10 | SE03-72 | Screw, M5 × 0.8 × .500", T20 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002090 | DS-T206B | BLD T20/S7 | T20 Torx Driver Blade, 90 mm OAL, 6 mm Hex | n/a | n/a | n/a | ||
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 7018957 | DS-T20B1 | DS-T20B1 | T20 Torx Bit, 2.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2920529 | DT-44-.25 | DT-44-.25 | Torque Adapter Unit preset to 44 in lb (5.0 N·m) for use with the multi-component Qwik Torque system | Optional Accessory item; Sold Separately | n/a | n/a | n/a |
