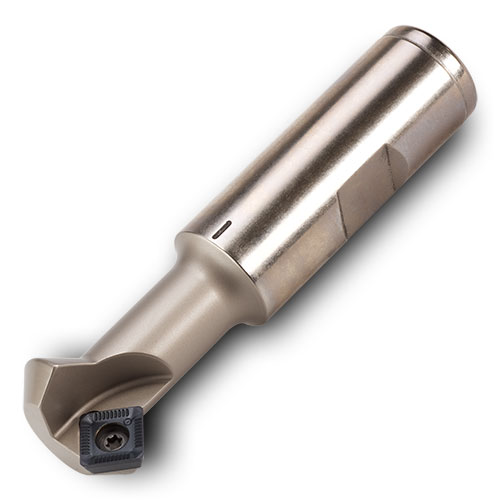

EDP: 3010303 Part: 15N1F-1001584R01 Series: 15N1F - Front-Back Chamfer End Mill
View STEP
Available : 10
Product Series Features:
- Ø.50" Min.
- Weldon Shank
- 9 mm Insert with 4 indexes
- Cutting Edge Angle: 45°
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000460 | SM30-065-00 | SE02-79 | Screw, M3 x 0.5 × 6.5 mm, T9 Torx drive | n/a | n/a | n/a | ||
| 7009052 | DS-T09W | DS-0022 | T9 Wing Style Torx Driver | n/a | n/a | n/a | ||
| 2926085 | DS-A00-.25-S | DS-A00-.25-S | Driver Handle for use with multi-component Qwik-Torque system Preset Adapters 2.0 Nm or less | Optional Accessory Item; Sold Separately; For Clamp Screw | n/a | n/a | n/a | |
| 7009746 | DS-T09B | DS-0029 | T9 Torx Bit; 1.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2926274 | DT-18-.25 | DT-18-.25 | Torque Adapter Unit preset to 17.7 in lb (2.0 N·m) for use with the multi-component Qwik Torque system | Optional Accessory Item; Sold Separately; For Clamp Screw | n/a | n/a | n/a |
