EDP: 3016467 Part: 6X2V-04R01 Series: 6X1V, 6X2V (Aluminum Body)

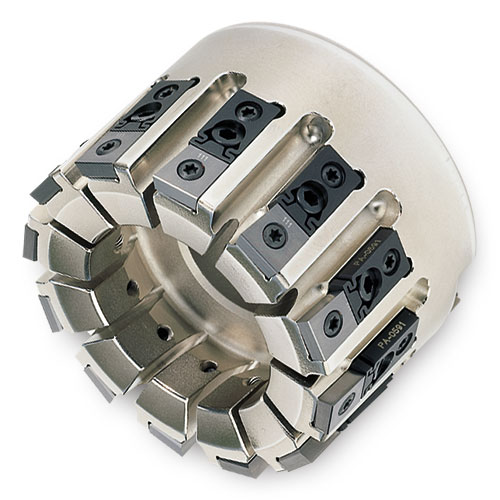

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 0
Product Series Features:
- Light Weight Aluminum Body Face Mill

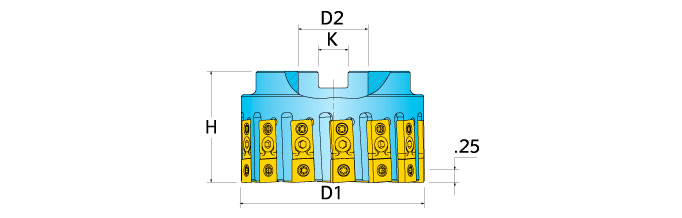

- .25" Max. Depth of Cut
Notes:
- Insert Corner: .015" to .093"R. For use with Coolant-Through-Spindle applications.
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7008552 | PA-0598 | PA-0598 | Flex-Lok large adjustable seat; Use with SYE-43 insert, uses screws SC03-14 & SE02-81 | n/a | n/a | n/a | ||
| 7000105 | SC-03-14 | SC03-14 | Barrel Screw, Right Hand, #10-32 × .625", 5/32" Hex | n/a | n/a | n/a | ||
| 7000461 | SM40-120-20 | SE02-81 | Screw, M4 × 0.7 × 12 mm, T15 Torx drive | n/a | n/a | n/a | ||
| 7007111 | DS-H04T | DS-0039 | 4 mm T-Handle Hex Driver | n/a | n/a | n/a | ||
| 7010350 | CZ-0104 | CZ-0104 | Lock Screw, 5/8-18 × 1.94", 1/2" Hex Drive, Shower Head style with (8) coolant holes | For use with 1-1/4" Pilot | n/a | n/a | n/a | |
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002096 | DS-T156B | BLD T15/S7 | T15 Torx; 90 mm OAL; 6 mm Hex drive | n/a | n/a |
