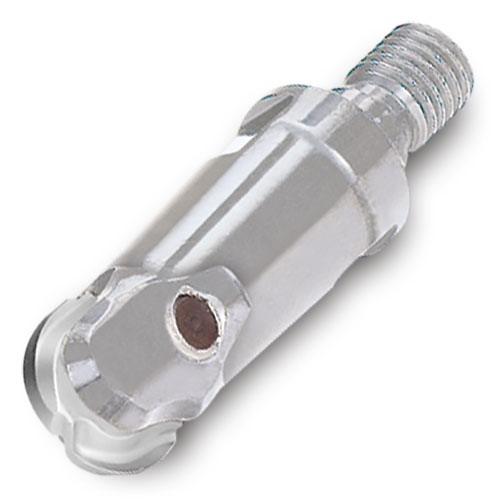

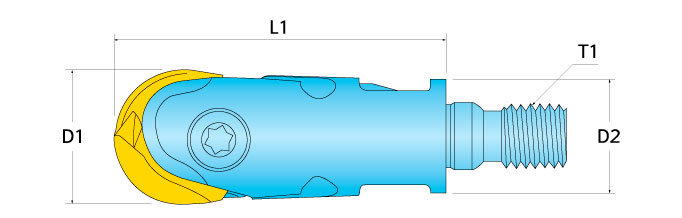

EDP: 3017046 Part: 12W7A020-103 Series: 12W (TOP-ON STYLE)
Available : 0
Product Series Features:
- Ø.375-1.000" Ball Nose
- Max. depth of cut: Full radius
- Insert corners: .187" to .500"R
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7019607 | DS-T256B | BLD T25/S7 | T25 Torx; 90 mm OAL; 6 mm Hex drive | n/a | n/a | n/a | ||
| 7003206 | SF080-01 | SF05-15 | Screw, M8 x 1.25 x 16.8 mm | T25 Torx Drive, Torque 105-110 in. lbs. | n/a | n/a | n/a | |
| 7003207 | RR-04-01 | RR04-01 | Crescent retaining ring; For Ø8 mm shaft, .031" thick | n/a | n/a | n/a |
