EDP: 3023414 Part: 3SJ6L-05100AH-01 Series: 3SJ6 Axial Drive

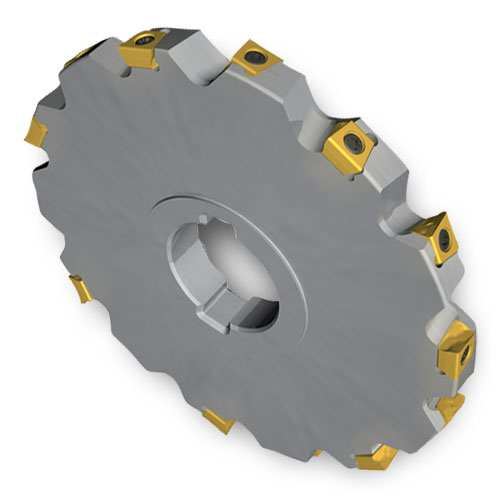

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 0
Product Series Features:
- Heavy-Duty Axial Drive Slotter
- .625-1.000" Cutting widths
- Insert corners: .031", .062", .094", .125" R
- Inserts with 4 indexes (2RH/2LH)
Notes:
- ** Note, OBSOLETE product line.
- Refer to the following stocked alternative:
- Gold-Max4, series 3EJ6
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7001766 | SM50-160-10 | SE03-70 | Screw, M5 × 0.8 × .625", T20 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002090 | DS-T206B | BLD T20/S7 | T20 Torx Driver Blade, 90 mm OAL, 6 mm Hex | n/a | n/a |
