EDP: 3023558 Part: SJ6H-03R01 Series: SJ6H Face Mill

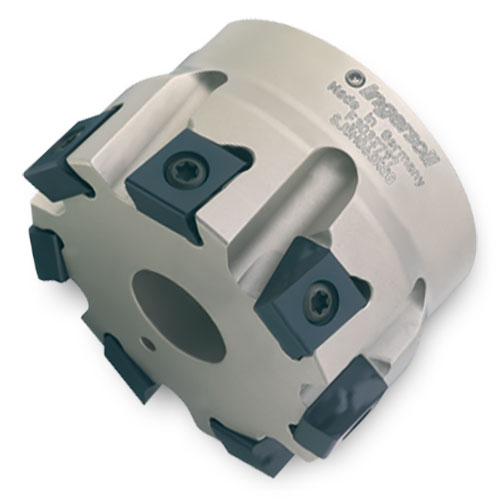

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 0
Product Series Features:

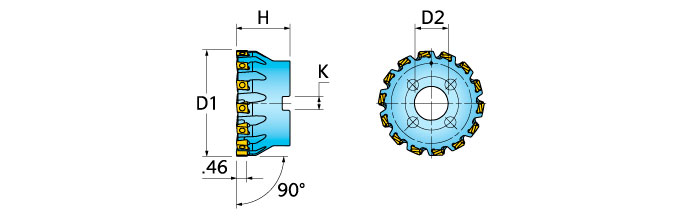

- 90° Low-density face mill
- .46" Depth of cut
- 12.7 mm Insert with 4 R.H. indexes
- Insert corners: .031", .063" R
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000461 | SM40-120-20 | SE02-81 | Screw, M4 × 0.7 × 12 mm, T15 Torx drive | n/a | n/a | n/a | ||
| 7009790 | SD-08-47 | SD08-47 | SHCS, 1/2-20 × 1.25", 3/8" Hex Drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002096 | DS-T156B | BLD T15/S7 | T15 Torx; 90 mm OAL; 6 mm Hex drive | n/a | n/a |
