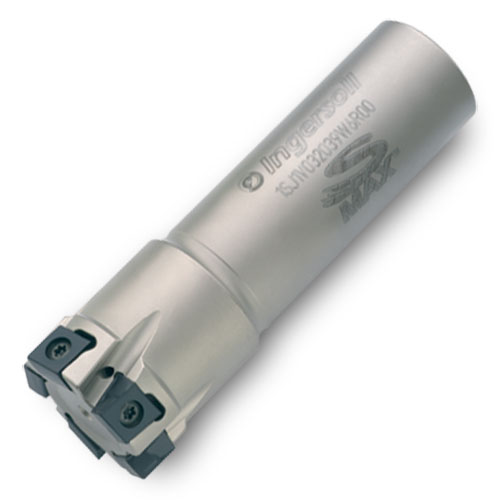

EDP: 3024454 Part: 1SJ1V-1001780R01 Series: 1SJ1V- 90° End Mill
View STEP
Available : 0

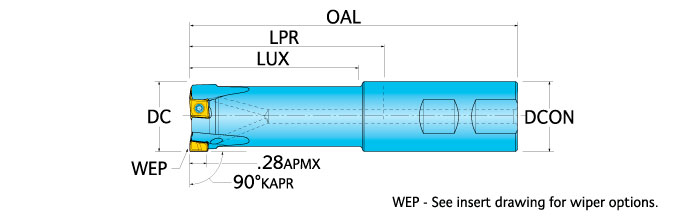

Product Series Features:
- Ø1.000" (Weldon)
- .28" Max. depth of cut
- 8.5 mm Insert with 4 indexes
- Insert corner: .020" R
Notes:
- **Note, OBSOLETE product series.
- Refer to the following for stocked alternatives:
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7009052 | DS-T09W | DS-0022 | T9 Wing Style Torx Driver | n/a | n/a | n/a | ||
| 7011821 | SM30-090-10 | SM30-090-10 | Screw, M3 × 0.5 × 9 mm, T9 Torx drive | n/a | n/a | n/a |
