Home > Form-Master V > CNHU > 3060770 CNHU060310N IN2530

EDP: 3060770

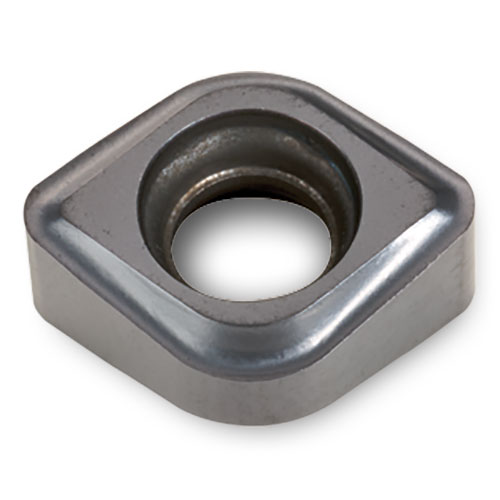

Part: CNHU060310N IN2530
Series: CNHU

Application

Finish/Semi-Finish

RE Corner Radius

1.00 mm

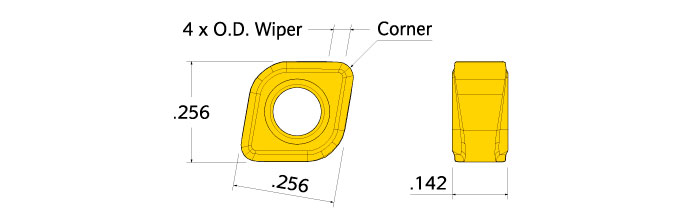

INSL Insert Length

0.256

W1 Insert Width

0.256

S Thickness

0.142

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 50
International: 20

Product Series Features:

Pressed rake face geometry

Application	Finish/Semi-Finish
RE - Corner Radius	1.00 mm
INSL - Insert Length	0.256
W1 - Insert Width	0.256
S - Thickness	0.142
NOI - Number of Indexes	4
IH - Insert Hand	Neutral

Related Tools

Photo of Form-Master V

Form-Master V
15V1D

Back Draft Finish End Mill
.080" Max. depth of cut
Insert corner: 1 mm (.039") R
.040" Wiping flat
Insert with 4 indexes

Photo of Form-Master V

Form-Master V
15V1D - Backdrack & Finish End Mill

Ø1.000-1.250"
TopOn Connection
Insert with 4 indexes
.080" Max. depth of cut
Insert corner: 1 mm (.039") R
