Home > TediMill > TMCPR PCD Cartridge > 3224871 TMCPR02RRB5

EDP: 3224871
Part: TMCPR02RRB5
Series: TMCPR PCD Cartridge

Application

PCD - Aluminum/Non-Ferrous - Wiper

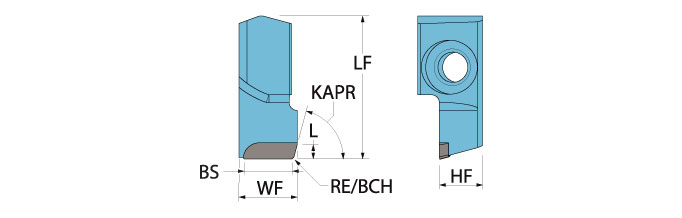

BCH Corner Chamfer Length

0.40 mm

KCH Corner Chamfer Angle

45

KAPR Cutting Edge Angle

90

L Cutting Edge Length

2.00 mm

LF Functional Length

26.50 mm

WF Functional Width

11.00 mm

HF Functional Height

8.00 mm

Available : 12
International: 36

Product Series Features:

PCD Wiper Cartridge
Compatible with PCD Tedimill Face Mills

Application	PCD - Aluminum/Non-Ferrous - Wiper
BCH - Corner Chamfer Length	0.40 mm
KCH - Corner Chamfer Angle	45
KAPR - Cutting Edge Angle	90
L - Cutting Edge Length	2.00 mm
LF - Functional Length	26.50 mm
WF - Functional Width	11.00 mm
HF - Functional Height	8.00 mm
