Home > HiPos-Plus > AOMT18_HS - Insert for SS/Hi-Temp/Ti > 3331422 AOMT180504R-HS IN2035

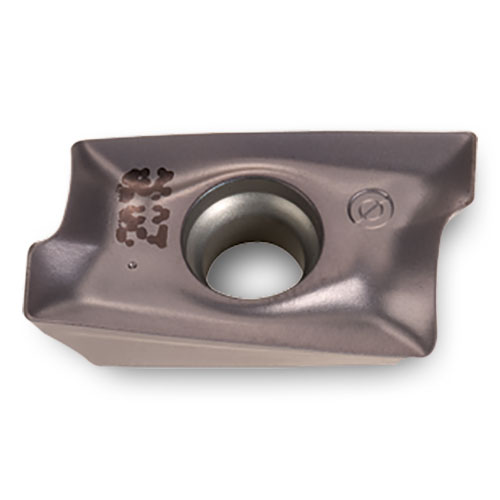

EDP: 3331422
Part: AOMT180504R-HS IN2035
Series: AOMT18_HS - Insert for SS/Hi-Temp/Ti

Application

Hi-Temp/Ti

RE Corner Radius

0.015

BS Wiper Length

0.110

LE Cutting Edge Eff. Length

0.660

INSL Insert Length

0.774

W1 Insert Width

0.424

S Thickness

0.230

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 180
International: 1210

Product Series Features:

Keen edge for SS/Hi-Temp/Ti materials
Integrated wiper flat on face for producing 32-63 Ra surface finishes
Pressed rake face geometry promotes efficient chip formation
2 Indexes

Application	Hi-Temp/Ti
RE - Corner Radius	0.015
BS - Wiper Length	0.110
LE - Cutting Edge Eff. Length	0.660
INSL - Insert Length	0.774
W1 - Insert Width	0.424
S - Thickness	0.230
NOI - Number of Indexes	2
IH - Insert Hand	Right

Related Tools
Operating Guidelines

HiPos-Plus
12J1E - 90° End Mill

Ø1.00-2.00 (Weldon)
.66" Depth of Cut (18 mm Insert)
32-63 Ra surface finishes when engaging integrated wiper (WEP)
Insert Corner: .015" .031" .062" .093" & .125" R. Use 12J4E for .187" & .250" R
Insert with 2 Indexes

HiPos-Plus
12J1E - 90° End Mill (V-Flange)

Ø1.00 - 1.50" (V-Flange)
.66" Depth of Cut (18 mm Insert)
32-63 Ra surface finishes when engaging integrated wiper (WEP)
Insert Corner: .015" .031" .062" .093" & .125" R.
Insert with 2 Indexes

HiPos-Plus
12J1E - 90° Modular End Mill (TopOn)

Ø1.000-1.250" (TopOn)
.66" Depth of cut
18 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging integrated wiper (WEP)
Insert corners: .015", .031", .062", .093", .125" R

HiPos-Plus
12J4E - 90° End Mill for Large Corner Radius

Ø1.00-2.00" (Weldon)
.66" Depth of cut
18 mm Insert with 2 indexes
Insert corners: .187", .250" R

HiPos-Plus
12S1E - 90° Center Cutting End Mill

Ø1.500"
Weldon Shank
18 mm Insert with 2 indexes
Drill-mill capable
Insert corners: .015", .031" R

HiPos-Plus
22J3E - 90° Fluted Precision Finishing Shell Mill

Ø2.500" - 4.000"
All Eff. / RH Helix
16 mm Insert with 4 indexes
Insert corner: .015", .031", .062", .093", .125" R

HiPos-Plus
22J3E - Extended Flute Full-Effective End Mill (InnoFit)

Ø1.500 - 2.500" (InnoFit)
All Eff / RH Helix
18 mm Insert
2 indexes
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093" R

HiPos-Plus
25J3H - 90° Extended Flute End Mill

Ø2.000" - 3.000"
All Eff / RH Helix
18 mm Insert
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093", .125" R

HiPos-Plus
25J3H - 90° Extended Flute Shell Mill

Ø2.500 - 4.000"
All Eff / RH Helix
18, 12 mm Insert
4 indexes
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062" R

HiPos-Plus
2J1E - 90° Face Mill

Ø2.00-8.00"
.66" Depth of cut
18 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093", .125" R.
Use 2J4E for .187" & .250 R

HiPos-Plus
2J1E - 90° Face Mill (Metric)

Ø50.00 - 160.00 mm
17.00 mm Depth of cut
18 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093", .125" R.
Use 2J4E for .187" & .250 R

HiPos-Plus
2L1E - 15° Face Mill (18 mm Insert)

15° Face Mill
Ø2.500 - 4.000"
.31" Max. depth of cut
Insert with 2 indexes
Insert Radii: 0.027" R
Uses opposing unused edges of AOMT18 insert

HiPos-Plus
4W2A - 90° Cartridge Face Mill

Ø8.000-12.000"
18 mm Insert with 2 indexes
.66" Depth of Cut
Cartridge pocket protection (sold separately)

Hardware
Cartridges for 4W2A Face Mills

Cartridges for 4W2A Face Mill
90°, Lead Angle, Button & Hi-Feed insert options
Depth of Cut Range: 0.078 - 0.660"
