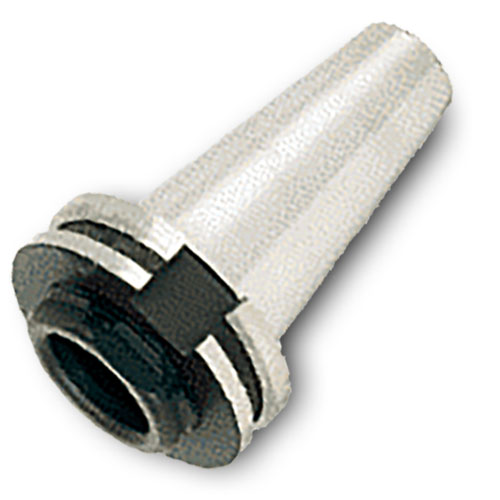

EDP: 4503238 Part: CAT40ER32SHORT Series: CAT*ER*SHORT
View STEP
Available : 5
International: 27
Product Series Features:
- CAT V-Flange
- ER Short Collet Chuck DIN 6499
- AD Style Coolant (coolant through the center)
- Balanced G2.5 @ 20,000 RPM
Notes:
- Toolholders according to Fig 1 can be used only on vertical machines with an umbrella type ATC (they cannot be used with arm type ATC).
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP File | |
|---|---|---|---|---|---|---|---|
| 4505058 | WRENCHER32SHORT | WRENCHER32SHORT | Hex Style Wrench for ER32 Short Nut | Optional Accessory Item; Sold separately | n/a | n/a | |
| 4506477 | NUTER32SHORT | NUTER32SHORT | Threaded OD Collet Nut for use with ER*SHORT Collet Chuck | n/a | n/a |
