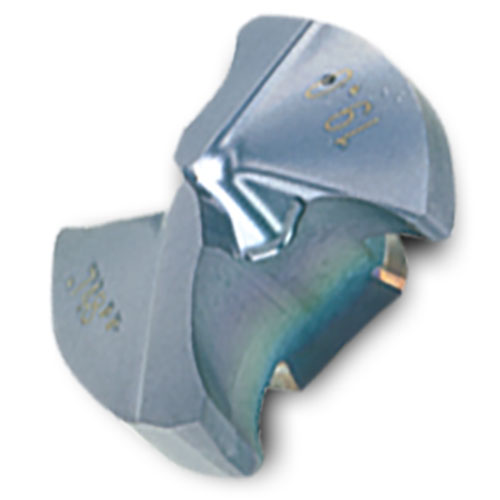

Home > Qwik-Twist > YBB > 5100304 NXXF49R04 IN2005

EDP: 5100304
Part: NXXF49R04 IN2005
Series: YBB

Spot Drilling

DC Cutting Dia.

0.4961 (12.60 mm)

SSC Insert Seat Size

12

PL Point Length

2.3 mm

LPR Projection Length

5.80 mm

LF Functional Length

3.51 mm

BCH Corner Chamfer Length

0.88 mm

KCH Corner Chamfer Angle

30

SIG Point Angle

140

Available : 4
International: 98

Product Series Features:

Qwik Twist 140° Replaceable Tips
Cast Iron
Grade IN2005

Spot Drilling

DC - Cutting Dia.	0.4961 (12.60 mm)
SSC - Insert Seat Size	12
PL - Point Length	2.3 mm
LPR - Projection Length	5.80 mm
LF - Functional Length	3.51 mm
BCH - Corner Chamfer Length	0.88 mm
KCH - Corner Chamfer Angle	30
SIG - Point Angle	140
