Home > Quad-Drill Plus > SPLT-N-PH > 5140256 SPLT07T308N-PH IN6520

EDP: 5140256

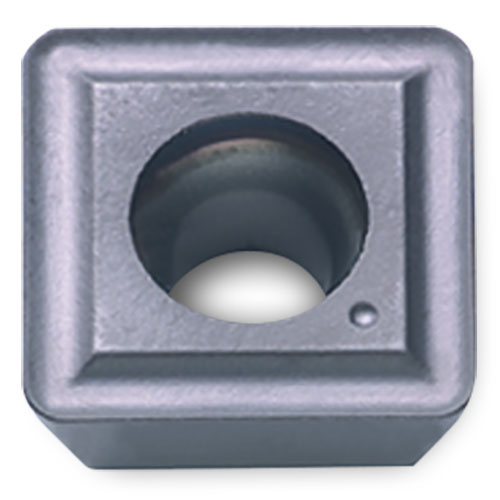

Part: SPLT07T308N-PH IN6520
Series: SPLT-N-PH

View STEP

Coolant-Thru

Drilling

Application

Multi-Purpose

RE Corner Radius

0.031

IC Inscribed Circle Dia.

0.312

S1 Thickness (Overall)

0.163

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 330
International: 1128

Product Series Features:

4 Cornered Insert for Quad Drill+
Steel & General Purpose

Coolant-Thru

Drilling

Application	Multi-Purpose
RE - Corner Radius	0.031
IC - Inscribed Circle Dia.	0.312
S1 - Thickness (Overall)	0.163
NOI - Number of Indexes	4
IH - Insert Hand	Neutral
DXF File
STEP Light File
STEP Detailed File
