Home > Gold-Twist > KOMT > 5523917 KOMT050104R IN2505

EDP: 5523917
Part: KOMT050104R IN2505
Series: KOMT

Application

Chamfering/Multi-Purpose

EPSR Insert Included Angle

45.5

L Cutting Edge Length

0.223

W1 Insert Width

0.177

S Thickness

0.077

S1 Thickness (Overall)

0.085

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 1350
International: 4777

Product Series Features:

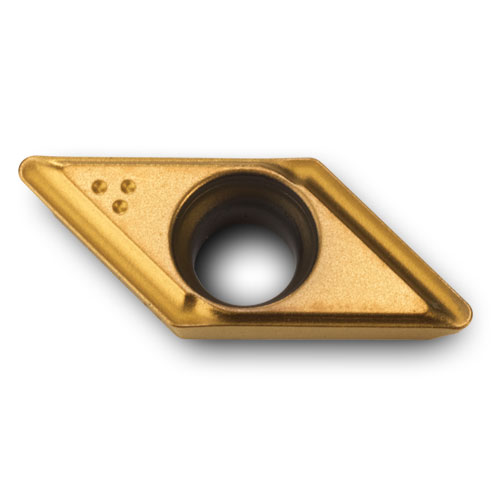

2 Cornered Insert for Gold Twist Drill Chamfer Tool
Steel & General Purpose

Application	Chamfering/Multi-Purpose
EPSR - Insert Included Angle	45.5
L - Cutting Edge Length	0.223
W1 - Insert Width	0.177
S - Thickness	0.077
S1 - Thickness (Overall)	0.085
NOI - Number of Indexes	2
IH - Insert Hand	Right
STEP Light File
STEP Detailed File
