Home > Iron-Eater > SPEN12 - SiN Insert > 5804767 SPEN44-03 J IN70N

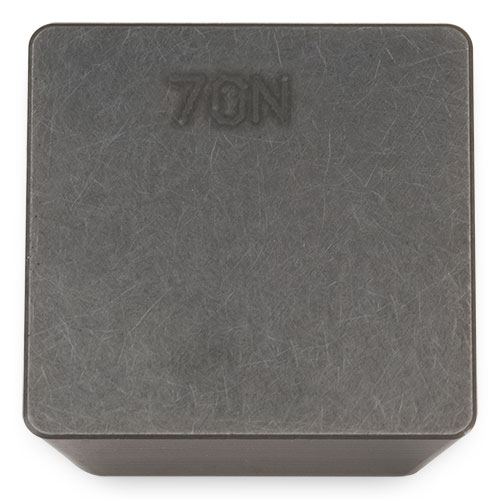

EDP: 5804767
Part: SPEN44-03 J IN70N
Series: SPEN12 - SiN Insert

Application

SiN for Iron

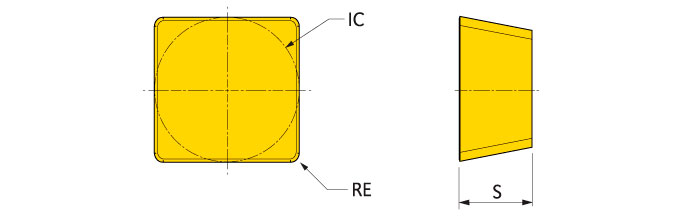

RE Corner Radius

0.031

IC Inscribed Circle Dia.

0.500

S Thickness

0.250

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 70

Product Series Features:

Flat Top with strong edge
4 indexes

Application	SiN for Iron
RE - Corner Radius	0.031
IC - Inscribed Circle Dia.	0.500
S - Thickness	0.250
NOI - Number of Indexes	4
IH - Insert Hand	Neutral
STEP Light File
STEP Detailed File

Related Tools
Operating Guidelines

Photo of Iron-Eater

Iron-Eater
5J2H - 45° SiNi Face Mill

Ø3.00-4.00"
Quad depth of cut: .24"
Octo depth of cut: .15"
Wedge held inserts
Pre-balanced

Photo of Iron-Eater

Iron-Eater
5J2H - 90° SiNi Face Mill

Ø3.000-4.000"
Quad depth of cut: .24"
Octo depth of cut: .15"
Wedge held inserts
Pre-balanced

Photo of Iron-Eater

Iron-Eater
5N2H_R01 - 45° SiN Face Mill

Ø2.00-6.00"
.24" Depth of cut
12mm Insert with 4 indexes
32-63 Ra surface finishes
Insert Corners: 0.031" 0.096" R
