Home > Rough-Air > BEHW25 - Multi-Purpose Insert > 5812816 BEHB82R01 K IN2540

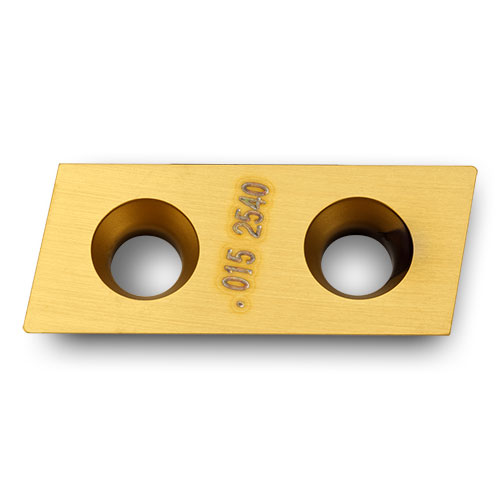

EDP: 5812816
Part: BEHB82R01 K IN2540
Series: BEHW25 - Multi-Purpose Insert

Application

Multi-Purpose

RE Corner Radius

0.015

LE Cutting Edge Eff. Length

0.950

INSL Insert Length

1.000

W1 Insert Width

0.438

S Thickness

0.145

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 710

Product Series Features:

Precision ground periphery
.015" .031" & .062" R
2 Indexes

Application	Multi-Purpose
RE - Corner Radius	0.015
LE - Cutting Edge Eff. Length	0.950
INSL - Insert Length	1.000
W1 - Insert Width	0.438
S - Thickness	0.145
NOI - Number of Indexes	2
IH - Insert Hand	Right

Choose a Section

Photo of Rough-Air

Rough-Air
15*1H - Chamfer End Mill

Ø.875" Min.
Weldon Shank
25 mm Insert with 2 indexes
Cutting Edge Angles: 45° & 60°
Included Angles: 90° & 60°
0.90" Cutting Edge Length

Photo of Rough-Air

Rough-Air
15J1H - 90° Finishing End Mill

Ø.750-1.500" (Weldon)
.95" Depth of cut
25 mm Insert with 2 indexes
Insert corners: .015" .031", .062" R

Rough-Air Line

Operating Guidelines, Pg. 347, 349
