Home > GoldSFeed > SD_S1906MPR_ > 5832040 SDES1906MDR-MR K IN2505

EDP: 5832040

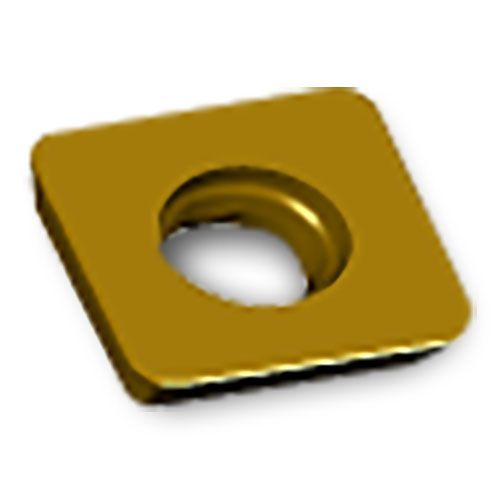

Part: SDES1906MDR-MR K IN2505
Series: SD_S1906MPR_

Application

Hi-Feed

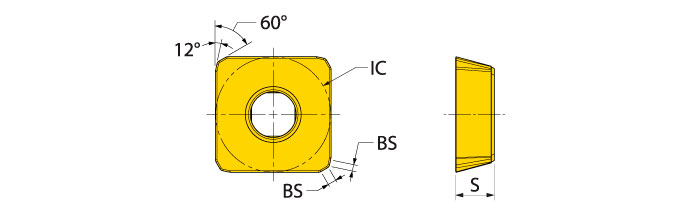

RE Corner Radius

0.178

BS Wiper Length

0.043

IC Inscribed Circle Dia.

19 mm

S Thickness

0.250

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 240

Product Series Features:

19mm GoldSFeed Insert

Notes:

Insert screw tightening torque: 72-77 in*lb.

Application	Hi-Feed
RE - Corner Radius	0.178
BS - Wiper Length	0.043
IC - Inscribed Circle Dia.	19 mm
S - Thickness	0.250
NOI - Number of Indexes	4
IH - Insert Hand	Right
STEP Light File
STEP Detailed File

Choose a Section

GoldSFeed
5G5M, 5G6M - Hi-Feed Face Mill

Ø3.000-7.000”
19 mm insert with 4 indexes
.147" (3.7 mm) Max. depth of cut
12° Hi-feed rougher
Seven different insert edge preparations provide application flexibility
Extremely free cutting!
Excellent Hi-Feed performance & economy!

GoldSFeed
5G5M, 5G6M - Hi-Feed Face Mill

Ø80-160 mm
19 mm insert with 4 indexes
.147" (3.7 mm) Max. depth of cut
12° Hi-feed rougher
Seven different insert edge preparations provide application flexibility
Extremely free cutting!
Excellent Hi-Feed performance & economy!

GoldSFeed Line

GoldSFeed 19 mm Operating Guidelines

GoldSFeed 19 mm Programming Data

GoldSFeed 19 mm Ramping Data
