Home > V-Max > NNE > 5840245 NNE324-104 A IN2040

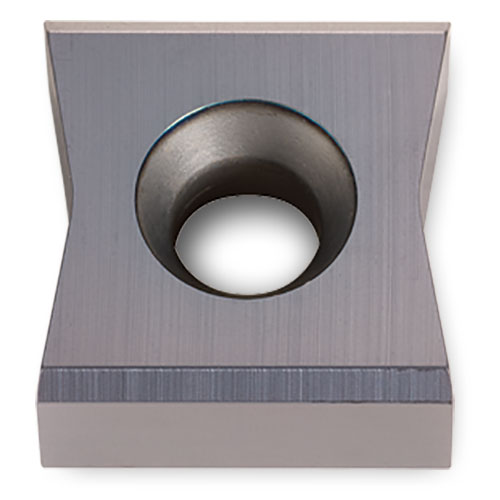

EDP: 5840245
Part: NNE324-104 A IN2040
Series: NNE

Application

Multi-Purpose

BCH Corner Chamfer Length

0.031

INSL Insert Length

0.500

W1 Insert Width

0.485

S Thickness

0.250

NOI Number of Indexes

8

IH Insert Hand

Neutral

Available : 0

Product Series Features:

Milling Insert

Notes:

Insert screw tightening torque: 30-35in*lb.
Insert screws M4 × 0.7 × 12. mm edp# 7000461

Application	Multi-Purpose
BCH - Corner Chamfer Length	0.031
INSL - Insert Length	0.500
W1 - Insert Width	0.485
S - Thickness	0.250
NOI - Number of Indexes	8
IH - Insert Hand	Neutral

Related Tools
Operating Guidelines

Photo of V-Max

V-Max
VK5V - 90° High Density Face Mill

Ø2.000-4.000"
Inserts with up to 8 indexes (4RH/4LH)
.46" Max. depth of cut (2RH/2LH)
.23" Max. depth of cut at 90° (4RH/4LH)
Left & right hand cutter bodies
Insert radii: .031", .063", .125"
Insert chamfer: .031" x 45°

Photo of V-Max

V-Max
VK6V - 90° Medium Density Face Mill

Ø2.000-4.000"
Inserts with up to 8 indexes (4RH or 4LH)
.46" Max. depth of cut (2RH or 2LH)
.23" Max. depth of cut at 90° (4RH or 4LH)
Left & right hand cutter bodies
Insert corners: .031", .063", .125"R & .031" x 45°

Photo of V-Max

V-Max
VK6V - Coarse Density

90° Face Mill
.46" Max. depth of cut
.23" Max. depth of cut at 90°
Insert with up to 8 indexes (4 RH / 4 LH)
Inserts with radii or chamfer
