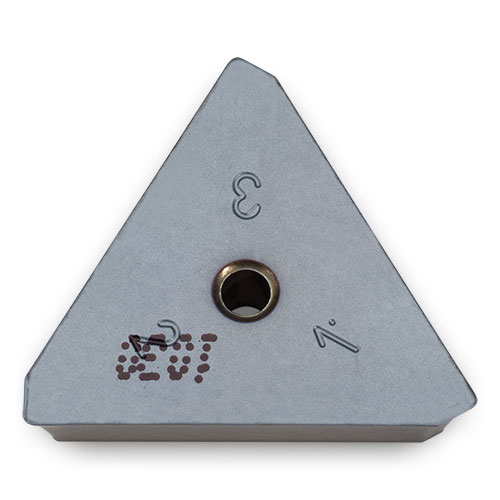

Home > ISO Positive Triangular Inserts > TPKN > 5840306 TPKN2204PDTR IN2040

EDP: 5840306
Part: TPKN2204PDTR IN2040
Series: TPKN

Application

Flat Top

RE Corner Radius

0.015

BS Wiper Length

0.070

LE Cutting Edge Eff. Length

0.590

IC Inscribed Circle Dia.

0.500

S1 Thickness (Overall)

0.187

NOI Number of Indexes

3

IH Insert Hand

Right

Available : 0
International: 1180

Product Series Features:

ISO Milling inserts for 90° Mills
Wedge-held inserts
Integrated Wiper
3 Indexes

Application	Flat Top
RE - Corner Radius	0.015
BS - Wiper Length	0.070
LE - Cutting Edge Eff. Length	0.590
IC - Inscribed Circle Dia.	0.500
S1 - Thickness (Overall)	0.187
NOI - Number of Indexes	3
IH - Insert Hand	Right
